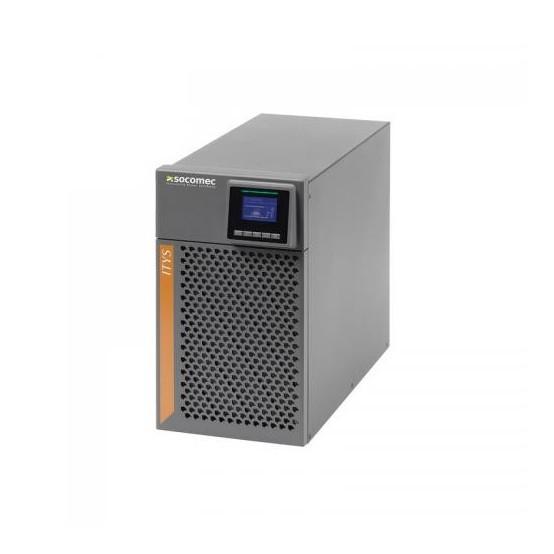

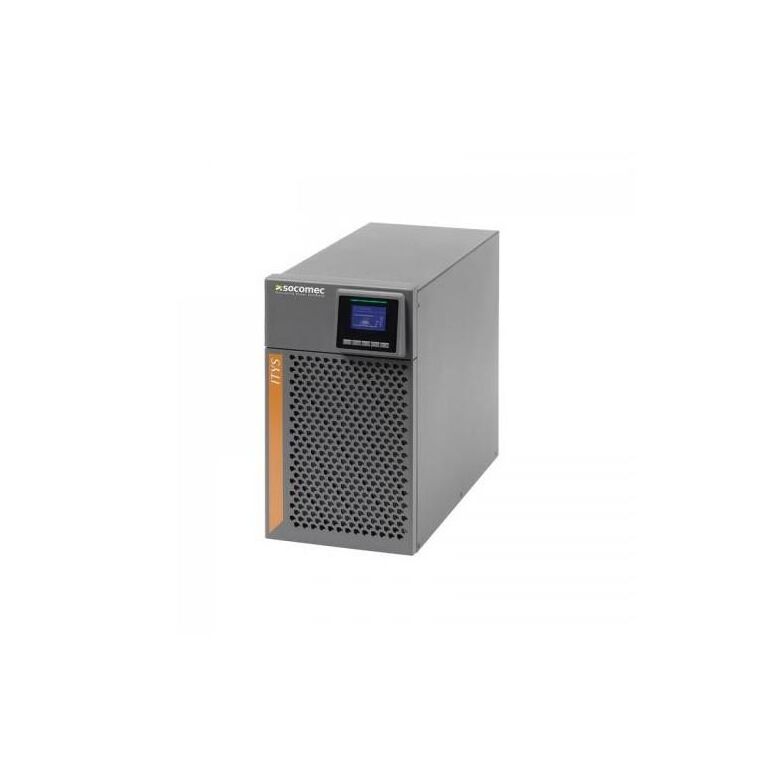

Socomec itys 2000va vfi ups 1/1 pf=1 with battery integrated, 8 x iec 320 (c13),rs232 – usb – contact de releu,card opțional net vision (tcp/ip și snmp)
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Outlet Types:
- C13 coupler
Ac Outlets Quantity:
- 8 AC outlet(s)
Battery Capacity:
- 9 Ah
Battery Life (max):
- 3 year(s)
Battery Technology:
- Sealed Lead Acid (VRLA)
Battery Voltage:
- 7.2 V
Built-in Fan:
- Yes
Certification:
- IEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)
Charging Current:
- 8 A
Control Type:
- Buttons
Cooling Type:
- Active
Country Of Origin:
- China
Crest Factor:
- 3:1
Depth:
- 428 mm
Display Type:
- LCD
Eco Mode:
- Yes
Efficiency:
- 93.53%
Efficiency (eco Mode):
- 98%
Emergency Power Off (epo):
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Form Factor:
- Mini Tower
Height:
- 32.2 mm
Input Frequency:
- 40 - 70 Hz
Input Operation Voltage (max):
- 300 V
Input Operation Voltage (min):
- 160 V
Input Power Factor:
- 0.99
International Protection (ip) Code:
- IP20
Led Indicators:
- Yes
Manual:
- Yes
Noise Level:
- 50 dB
Number Of Input Phases:
- 1
Number Of Output Phases:
- 1
Operating Altitude:
- 0 - 1000 m
Operating Relative Humidity (h-h):
- 0 - 95%
Operating Temperature (t-t):
- 0 - 45 °C
Output Frequency:
- 50/60 Hz
Output Operation Voltage (max):
- 240 V
Output Operation Voltage (min):
- 200 V
Output Power:
- 2000 W
Output Power Capacity:
- 2 kVA
Output Power Factor:
- 1
Power Plug:
- C20 coupler
Power Protection Features:
- Short circuit
Producator:
SOCOMEC
Product Colour:
- Black, Grey, Orange
Rs-232 Ports:
- 1
Safety:
- IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Typical Backup Time At Full Load:
- 11.1 min
Ups Topology:
- Double-conversion (Online)
Usb Port Type:
- USB Type-B
Waveform:
- Sine
Weight:
- 2.6 kg
Width:
- 19.2 mm
Descriere
SOCOMEC ITYS 2000VA VFI UPS 1/1 PF=1 WITH BATTERY INTEGRATED, 8 x IEC 320 (C13),RS232 – USB – Contact de releu,Card opțional NET VISION (TCP/IP și SNMP)
