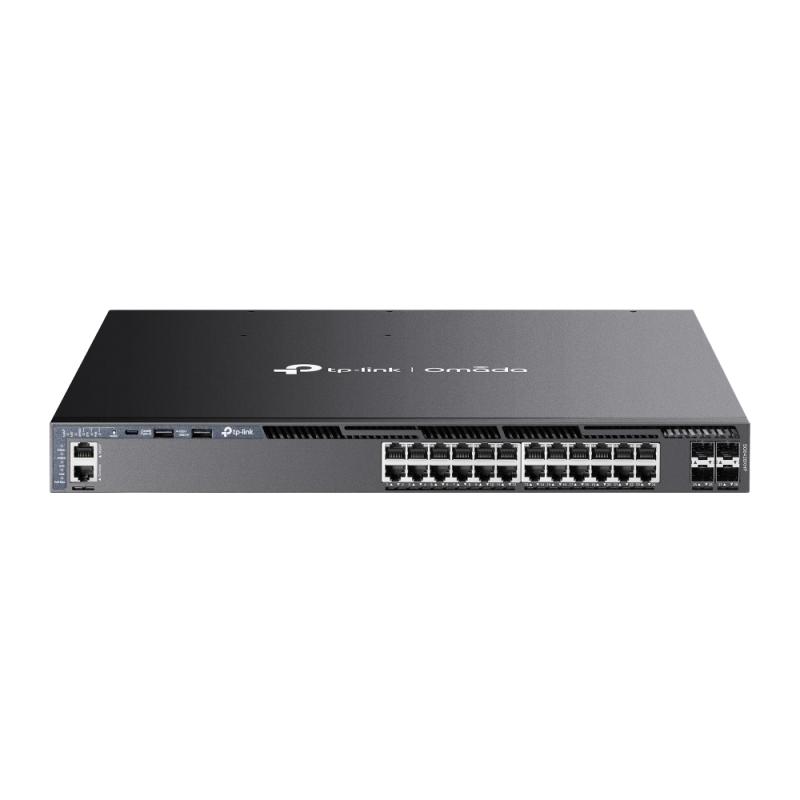

Tp-link switch 24 porturi, management l3, poe+, 4 porturi 10g sfp,interfata: 24× 10/100/1000 mbps poe+ rj45 ports, 4× 10g sfp+, 2× usb 2.0, 1× rj45 console por, 1× usb type-c console port, 1× rj45 management port, buget poe: 720w, 24 x 30w, dimensiuni: 44
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- Auto VLAN, MAC-based authentication, Port-based authentication
Authentication Type:
- RADIUS
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Cables Included:
- AC, LAN (RJ-45)
Cloud-managed:
- Yes
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/USB Type-C
Depth:
- 420 mm
Dhcp Features:
- DHCP relay, DHCP snooping, DHCPv6 snooping
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 95.2 Mpps
Heat Dissipation:
- 3125.61 BTU/h
Height:
- 44 mm
Igmp Entries:
- 2048
Igmp Snooping:
- Yes
Ip Routing:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Led Indicators:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 32000 entries
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Number Of Fans:
- 4 fan(s)
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 40 °C
Packet Buffer Memory:
- 3 MB
Port Mirroring:
- Yes
Power Consumption (max):
- 916.4 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 24
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- Yes
Rate Limiting:
- Yes
Sfp Module Slots Quantity:
- 4
Sfp+ Module Slots Quantity:
- 4
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stackable:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L3
Switch Type:
- Managed
Switching Capacity:
- 128 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 720 W
Usb 2.0 Ports Quantity:
- 2
Virtual Lan Features:
- MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere
TP-Link Switch 24 porturi, Management L3, POE+, 4 porturi 10G SFP,Interfata: 24× 10/100/1000 Mbps PoE+ RJ45 Ports, 4× 10G SFP+, 2× USB 2.0, 1× RJ45 Console Por, 1× USB Type-C Console Port, 1× RJ45 Management Port, Buget POE: 720W, 24 x 30W, Dimensiuni: 440 × 420 × 44 mm, Montare in rack, Capacitate switch: 128 Gbps per Unit, Packet Forwarding Rate: 95.2 Mpps.
