Tp-link omada sg5428x. switch type: managed, switch layer: l3. basic switching rj-45 ethernet ports type: gigabit ethernet (10/100/1000), basic switching rj-45 ethernet ports quantity: 24, usb 2.0 ports quantity: 1, console port: rj-45. mac address table:
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- Yes
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Bandwidth:
- 64 Gbit/s
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Built-in Processor:
- Yes
Cables Included:
- AC
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Console Port:
- RJ-45
Depth:
- 180 mm
Dhcp Features:
- DHCP relay, DHCP server
Fanless:
- Yes
Firmware Upgradeable:
- Yes
Flash Memory:
- 512 MB
Forwarding Rate:
- 95.23 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 24
Heat Dissipation:
- 66.87 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Installed Sfp+ Modules Quantity:
- 0
Ip-mac-port Binding:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Led Indicators:
- Yes
Link Aggregation:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 16000 entries
Management Level:
- 4
Mean Time Between Failures (mtbf):
- 519.543 h
Memory Type:
- DRAM
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 45 °C
Packet Buffer Memory:
- 12 MB
Password Protection:
- Yes
Physical Stacking (units):
- 4
Port Mirroring:
- Yes
Power Consumption (max):
- 19.6 W
Power Over Ethernet (poe):
- No
Power Source:
- AC
Power Supply Included:
- Yes
Processor Frequency:
- 1200 MHz
Processor Manufacturer:
- ARM
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Quick Start Guide:
- Yes
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Security Algorithms:
- SNMP, SNMPv2, SNMPv3
Sfp Module Slots Quantity:
- 4
Sfp+ Module Slots Quantity:
- 4
Ssh/ssl Support:
- Yes
Stackable:
- Yes
Static Port Security:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Surge Protection:
- Yes
Surge Protection Voltage:
- 6 kV
Switch Layer:
- L3
Switch Type:
- Managed
Switching Capacity:
- 128 Gbit/s
Telnet:
- Yes
Usb 2.0 Ports Quantity:
- 1
Usb Type-c Ports Quantity:
- 1
Virtual Lan Features:
- MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere

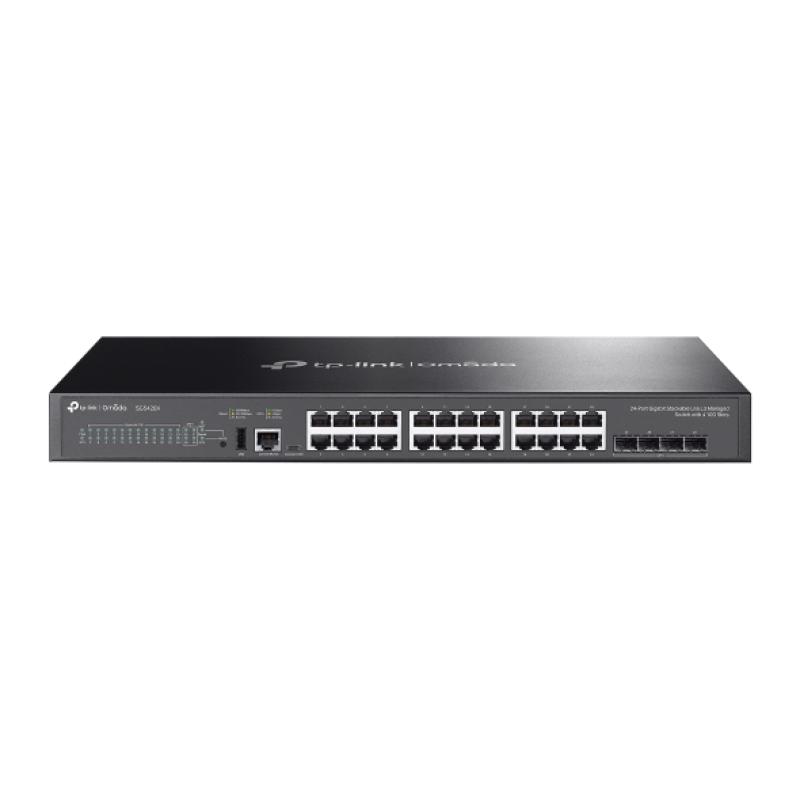

TP-Link Omada SG5428X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack mounting
