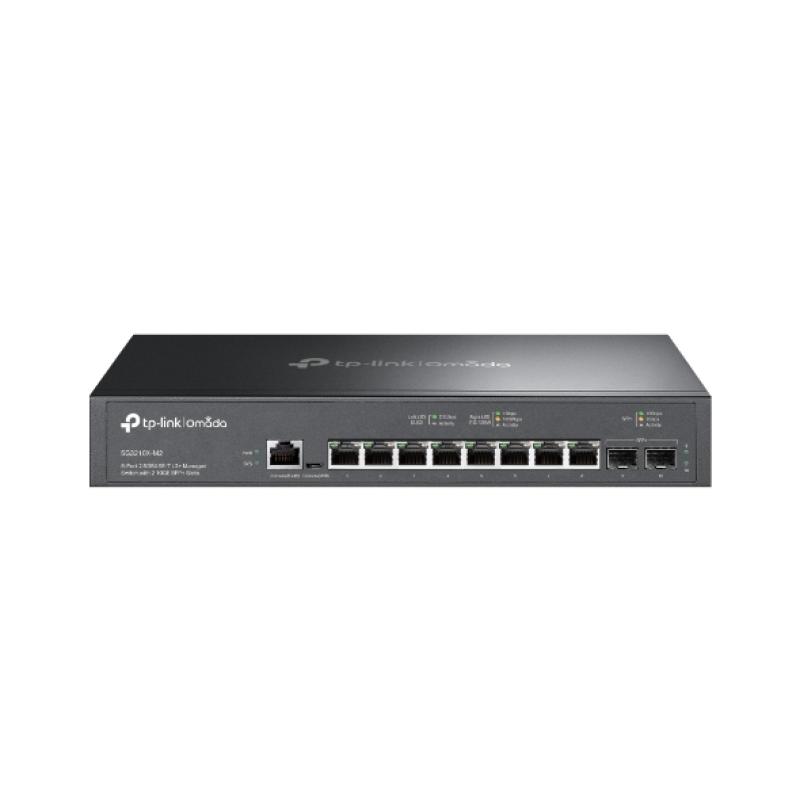

Switch tp-link sg3210x-m2, 8 x porturi rj 45, 2 x sfp+, viteza lan 100/1000/2500 mbps, layer l2+, capacitate 80 gbps, dimensiuni 294 × 180 × 44 mm
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- Yes
2.5g Ethernet (copper) Ports Quantity:
- 8
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- MAC-based authentication, Port-based authentication
Authentication Type:
- AAA, TACACS+
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- 2.5G Ethernet (100/1000/2500)
Bpdu Filtering/protection:
- Yes
Broadcast Storm Control:
- Yes
Cables Included:
- AC
Certification:
- CE, FCC, Rohs
Cloud-managed:
- Yes
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/micro-USB
Depth:
- 180 mm
Dhcp Features:
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet Lan Data Rates:
- 100,1000,2500 Mbit/s
Fanless:
- Yes
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 59.52 Mpps
Garp Vlan Registration Protocol (gvrp):
- Yes
Harmonized System (hs) Code:
- 85176990
Head-of-line (hol) Blocking:
- Yes
Heat Dissipation:
- 51.18 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Installed Sfp Modules Quantity:
- 0
Installed Sfp+ Modules Quantity:
- 0
Ip Routing:
- Yes
Ip-mac-port Binding:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 16000 entries
Management Protocols:
- SNMPv1/v2c/v3, SNTP
Mib Support:
- RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (mld) Snooping:
- Y
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number Of Fans:
- 2 fan(s)
Number Of Ip Interfaces:
- 16
Number Of Static Routes:
- 48
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 50 °C
Package Depth:
- 250 mm
Package Height:
- 80 mm
Package Type:
- Box
Package Weight:
- 2.84 kg
Package Width:
- 528 mm
Packet Buffer Memory:
- 12 MB
Password Protection:
- Yes
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (typical):
- 15 W
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- SP, WRR+SP, Weighted Round Robin (WRR)
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rate Limiting:
- Yes
Security Algorithms:
- HTTPS, SSH, SSH-2, SSL/TLS
Sfp Module Slots Quantity:
- 2
Sfp+ Module Slots Quantity:
- 2
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Static Port Security:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L2+
Switch Type:
- Managed
Switching Capacity:
- 80 Gbit/s
System Event Log:
- Yes
Traffic Classification:
- Yes
Virtual Lan Features:
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 29.4 mm
Descriere
Switch TP-Link SG3210X-M2, 8 x porturi RJ 45, 2 x SFP+, viteza LAN 100/1000/2500 MBps, Layer L2+, capacitate 80 Gbps, dimensiuni 294 × 180 × 44 mm
