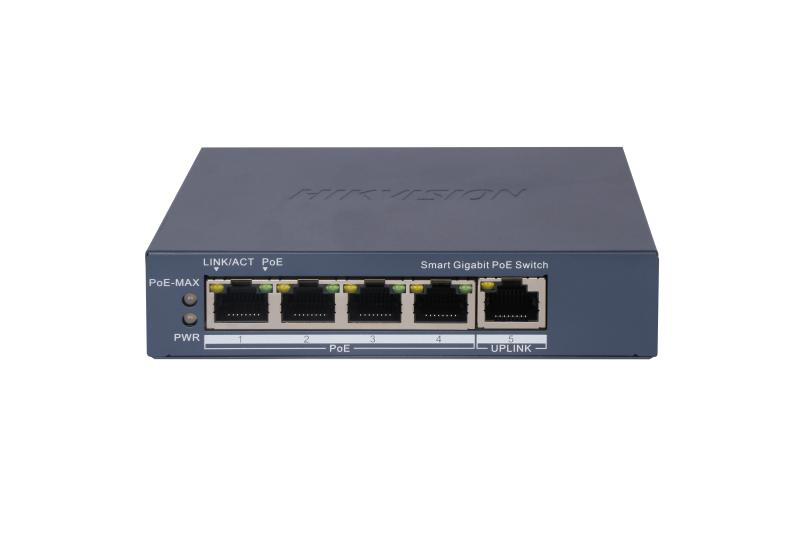

Switch poe hikvision ds-3e1505p-ei, 4 × gigabit poe port,1 × gigabit rj45 port, total poe power budget 60w, support 802.1q vlan, capacitate: 10 gbps, alimentare: 54vdc, 1.2a, dimensiuni: 121.1 mm × 27.6 mm × 83.1 mm, greutate: 0.26kg.
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Basic Switching Rj-45 Ethernet Ports Quantity:
- 5
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Compliance Certificates:
- CB, Low Voltage Directive (LVD), REACH, RoHS
Dc Input Voltage:
- 54 V
Depth:
- 83.1 mm
Dhcp Features:
- DHCP client
Forwarding Rate:
- 74.4 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 5
Height:
- 276 mm
Housing Material:
- Metal
Input Current:
- 12 A
Installed Sfp Modules Quantity:
- 0
Installed Sfp+ Modules Quantity:
- 0
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 2000 entries
Management:
- Da
Montare In Rack:
- Nu
Networking Standards:
- IEEE 802.1af, IEEE 802.3at
Number Of Vlans:
- 32
Operating Relative Humidity (h-h):
- 5 - 95%
Operating Temperature (t-t):
- 0 - 40 °C
Package Weight:
- 750 g
Poe:
- Da
Porturi Rj 45:
- 1
Porturi Sfp:
- None
Power Connector:
- DC-in jack
Power Consumption (max):
- 65 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Ports Quantity:
- 4
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Source:
- DC/PoE
Producator:
HIKVISION
Product Colour:
- Grey
Rack Mounting:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -40 - 85 °C
Surge Protection:
- Yes
Surge Protection Voltage:
- 6 kV
Sustainability Compliance:
- Yes
Switch Type:
- Managed
Switching Capacity:
- 10 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 60 W
Virtual Lan Features:
- VLAN Identifier ( VLAN ID)
Viteza Transfer:
- 10G+
Vlan Support:
- Yes
Wall Mountable:
- Yes
Weight:
- 260 g
Width:
- 121.1 mm
Descriere
Switch PoE Hikvision DS-3E1505P-EI, 4 × Gigabit PoE port,1 × Gigabit RJ45 port, Total PoE Power Budget 60W, Support 802.1Q VLAN, capacitate: 10 Gbps, alimentare: 54VDC, 1.2A, dimensiuni: 121.1 mm × 27.6 mm × 83.1 mm, greutate: 0.26kg.
