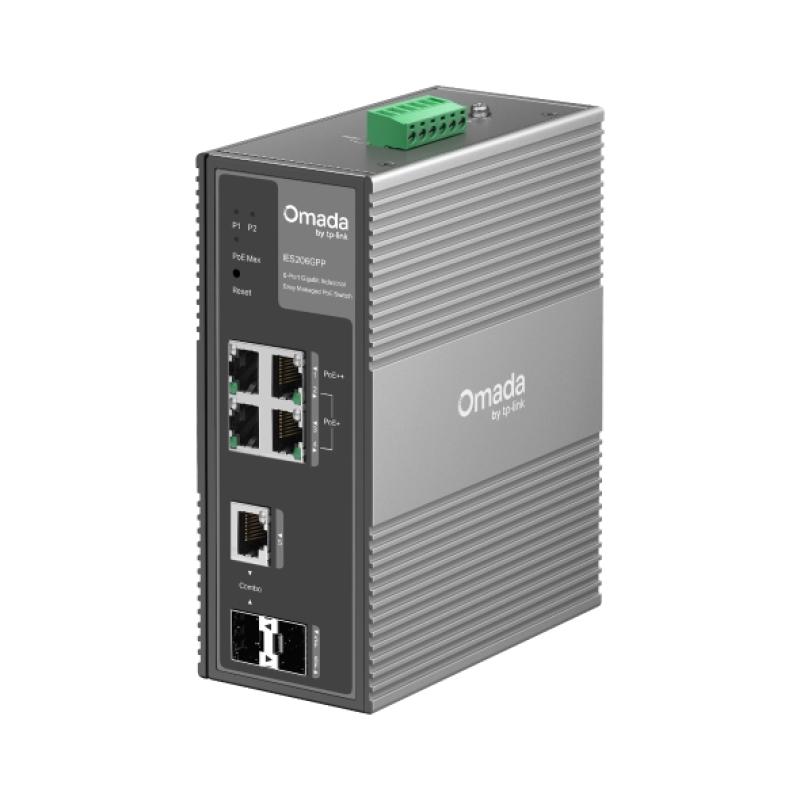

Switch industrial easy managed, 6 porturi:4× gigabit rj45 ports (1× poe++, 3× poe+), 1× gigabit combo rj45/sfp slot, 1× gigabit sfp slot, capacitate switch 12 gbps
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 4
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Certification:
- FCC, CE, RoHS
Combo Sfp Ports Quantity:
- 1
Dc Input Voltage:
- 12 - 57 V
Depth:
- 120 mm
Dhcp Features:
- DHCP client
Din Rail Mounting:
- Yes
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 8.93 Mpps
Height:
- 60 mm
Igmp Snooping:
- Yes
Jumbo Frames:
- 15000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Lan-ports:
- 5
Link Aggregation:
- Yes
Mac Address Table:
- 8000 entries
Multicast Support:
- Yes
Operating Relative Humidity (h-h):
- 5 - 95%
Operating Temperature (t-t):
- -40 - 75 °C
Port Mirroring:
- Yes
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet (poe) Type Supported:
- PoE+, PoE++ (4PPoE)
Power Over Ethernet 4ppoe (poe++) Ports Quantity:
- 1
Power Over Ethernet Plus (poe+) Ports Quantity:
- 3
Power Source:
- DC/PoE
Producator:
Tp-link
Product Colour:
- Black
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rackable:
- No
Redundant Power Supply (rps) Support:
- Yes
Redundant-psu:
- No
Sfp Module Slots Quantity:
- 1
Sfp+ Module Slots Quantity:
- 1
Spanning Tree Protocol:
- Yes
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -40 - 85 °C
Store-and-forward:
- Yes
Switch Type:
- Managed
Switching Capacity:
- 12 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 120 W
Wall Mountable:
- Yes
Width:
- 155 mm
Descriere
Switch Industrial Easy Managed, 6 porturi:4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+), 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot, capacitate switch 12 Gbps
