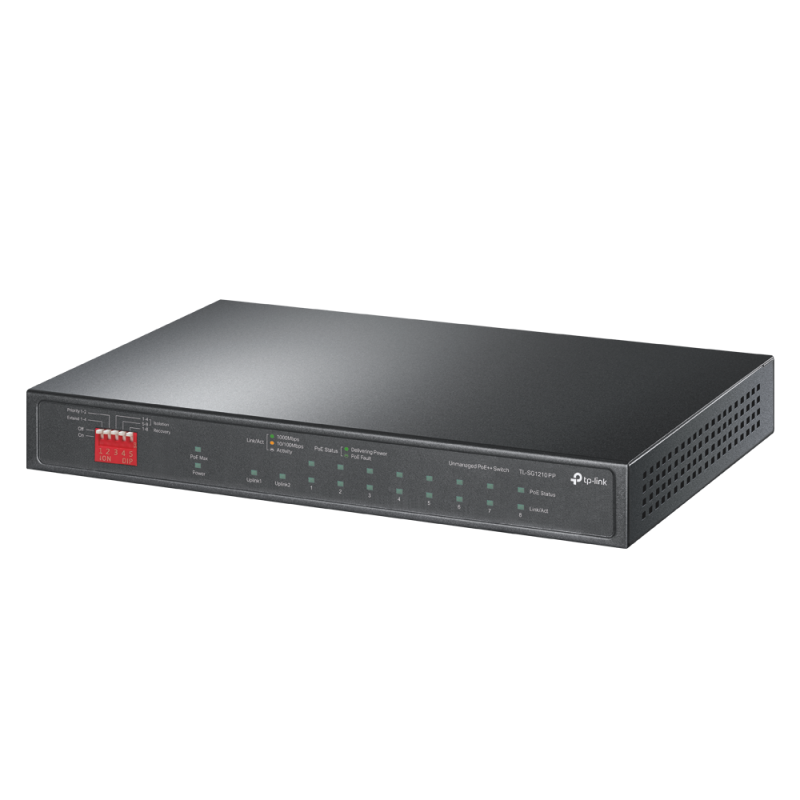

Switch desktop 10-port gigabit with 6-port poe+ and 2-port poe++ port: 2× gigabit poe++ ports, 6× gigabit poe+ ports, 2x gigabit non-poe ports, 1× combo gigabit sfp slot spec: 802.3af/at/bt type3, 123 w poe power, desktop steel case feature: extend mode
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50 Hz
Ac Input Voltage:
- 90 - 220 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 10
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cable Types Supported:
- Cat3, Cat4, Cat5, Cat5e
Cables Included:
- AC
Certification:
- FCC, CE, RoHS
Combo Sfp Ports Quantity:
- 1
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX
Depth:
- 126 mm
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 14.88 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 10
Harmonized System (hs) Code:
- 85176990
Heat Dissipation:
- 482.17 BTU/h
Height:
- 26 mm
Housing Material:
- Steel
Igmp Snooping:
- Yes
Input Current:
- 2.43 A
Input Voltage:
- 53.5 V
Installed Sfp Modules Quantity:
- 0
Installed Sfp+ Modules Quantity:
- 0
Lan-port-type:
- Gigabit
Lan-ports:
- 8
Layer:
- Unmanaged
Led Indicators:
- Yes
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 4000 entries
Networking Standards:
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number Of Power Supply Units:
- 1
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Package Type:
- Box
Power Consumption (max):
- 144.1 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet 4ppoe (poe++) Ports Quantity:
- 6
Power Over Ethernet Plus (poe+) Ports Quantity:
- 2
Power Source:
- DC/PoE
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- No
Rackable:
- No
Redundant-psu:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Type:
- Unmanaged
Switching Capacity:
- 20 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 123 W
User Guide:
- Yes
Width:
- 20.9 mm
Descriere
Switch Desktop 10-Port Gigabit with 6-Port PoE+ and 2-Port PoE++ PORT: 2× Gigabit PoE++ Ports, 6× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP Slot SPEC: 802.3af/at/bt type3, 123 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-4, Priority Mode for Port1-2, Isolation Mode for Port1-4/5-8, PoE Auto Recovery for Port1-8, Plug and Play
