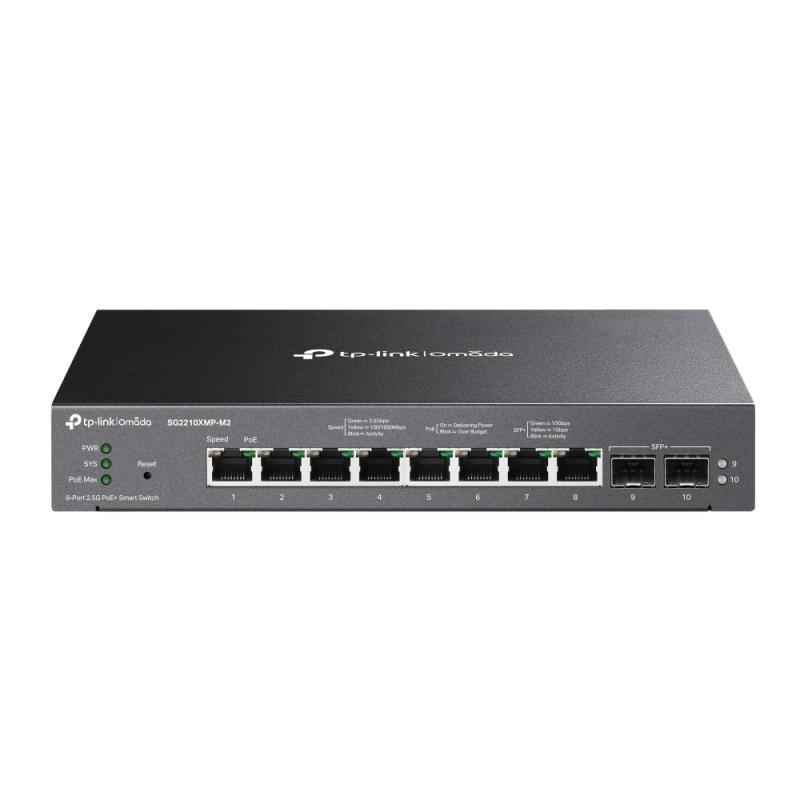

Omada 8-port 2.5gbase-t and 2-port 10ge sfp+ smart switch with 8-port poe+ port: 8× 2.5g poe+ ports, 2× 10g sfp+ slots spec: 802.3at/af, 160 w poe power, desktop & fanless steel case feature: integration with omada sdn controller, static routing, 802.1q v
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- MAC-based authentication, Port-based authentication
Authentication Type:
- RADIUS
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- 2.5G Ethernet (100/1000/2500)
Broadcast Storm Control:
- Yes
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (cli):
- Yes
Depth:
- 131 mm
Dhcp Features:
- DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Ethernet Lan Data Rates:
- 10,100,1000,2500 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- Desktop/Wall-Mounting
Forwarding Rate:
- 59.52 Mpps
Heat Dissipation:
- 614.58 BTU/h
Height:
- 35 mm
Igmp Snooping:
- Yes
Installed Sfp Modules Quantity:
- 0
Installed Sfp+ Modules Quantity:
- 0
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Lan-ports:
- 8
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 16000 entries
Mib Support:
- Y
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 9 MB
Port Mirroring:
- Yes
Power Connector:
- AC/DC
Power Consumption (max):
- 180.1 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet Plus (poe+) Ports Quantity:
- 8
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rackable:
- No
Rate Limiting:
- Yes
Redundant-psu:
- No
Reset Button:
- Yes
Security Algorithms:
- SNMP, SNMPv2, SNMPv3
Sfp Module Slots Quantity:
- 2
Sfp+ Module Slots Quantity:
- 2
Spanning Tree Protocol:
- Yes
Stackable:
- No
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Sustainability Compliance:
- Yes
Switch Layer:
- L2/L2+
Switch Type:
- Managed
Switching Capacity:
- 80 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 160 W
Virtual Lan Features:
- Protocol-based VLAN, Tagged VLAN, Voice VLAN
Vlan Support:
- Yes
Wall Mountable:
- Yes
Web-based Management:
- Yes
Width:
- 226 mm
Descriere
Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
