Omada 5-port gigabit smart switch with 1-port poe++ in and 4-port poe+ out port: 1× gigabit poe++ input ports, 4× gigabit poe+ output ports spec: 802.3at/af, max 64 w poe power (90w poe++ input), plastic case, pole-mounting/wall-mounting feature: integrat
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Ethernet (copper) Ports Quantity:
- 4
10g Support:
- Yes
Access Control List (acl):
- Yes
Access Control List (acl) Ipv4 Entries:
- 32
Arp Inspection:
- Yes
Authentication:
- MAC-based authentication, Port-based authentication
Basic Switching Rj-45 Ethernet Ports Quantity:
- 4
Basic Switching Rj-45 Ethernet Ports Type:
- 10G Ethernet (100/1000/10000)
Cable Types Supported:
- Cat5, Cat5e
Cloud-managed:
- Yes
Compliance Certificates:
- CE, RoHS
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 100BASE-T
Depth:
- 100 mm
Dhcp Features:
- DHCP relay, DHCP server
Flow Control Support:
- Yes
Form Factor:
- Desktop
Heat Dissipation:
- 243.99 BTU/h
Height:
- 38.5 mm
Igmp Snooping:
- Yes
Ip-mac-port Binding:
- Yes
Ipv4 & Ipv6 Features:
- Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Ipv4 Multicast Entries:
- 511
Ipv4 Routes:
- 32
Ipv6 Multicast Entries:
- 511
Ipv6 Routes:
- 32
Jumbo Frames:
- 9
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 8000 entries
Mib Support:
- Y
Multicast Mac Address Table:
- 8000 entries
Multicast Support:
- Yes
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -40 - 60 °C
Packet Buffer Memory:
- 4.1 MB
Packet Forwarding Rate (1 Gbps):
- 7440 pps
Password Protection:
- Yes
Port Mirroring:
- Yes
Power Consumption (typical):
- 71.5 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 64 W
Power Source:
- DC/PoE
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- White
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- No
Security Algorithms:
- 802.1x RADIUS
Spanning Tree Protocol:
- Yes
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Sustainability Compliance:
- Yes
Switch Layer:
- L2/L2+
Switch Type:
- Managed
Switching Capacity:
- 10 Gbit/s
Virtual Lan Features:
- Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 170 mm
Descriere

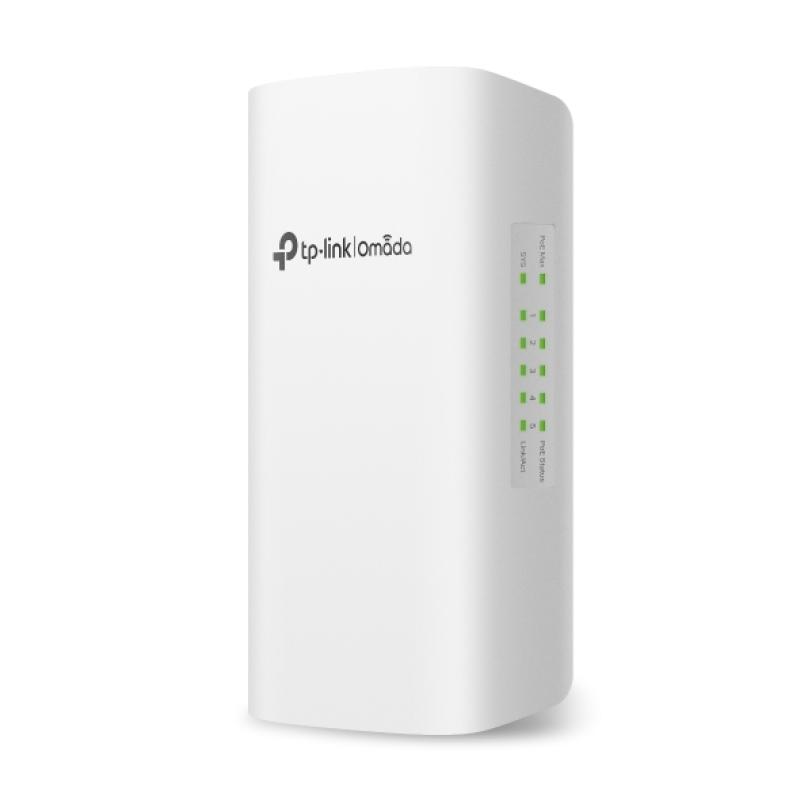

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ in and 4-Port PoE+ out PORT: 1× Gigabit PoE++ input Ports, 4× Gigabit PoE+ output Ports SPEC: 802.3at/af, max 64 W PoE Power (90W PoE++ input), plastic case, pole-mounting/wall-mounting FEATURE: Integration with Omada SDN Controller, IP55 Weatherproof, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
