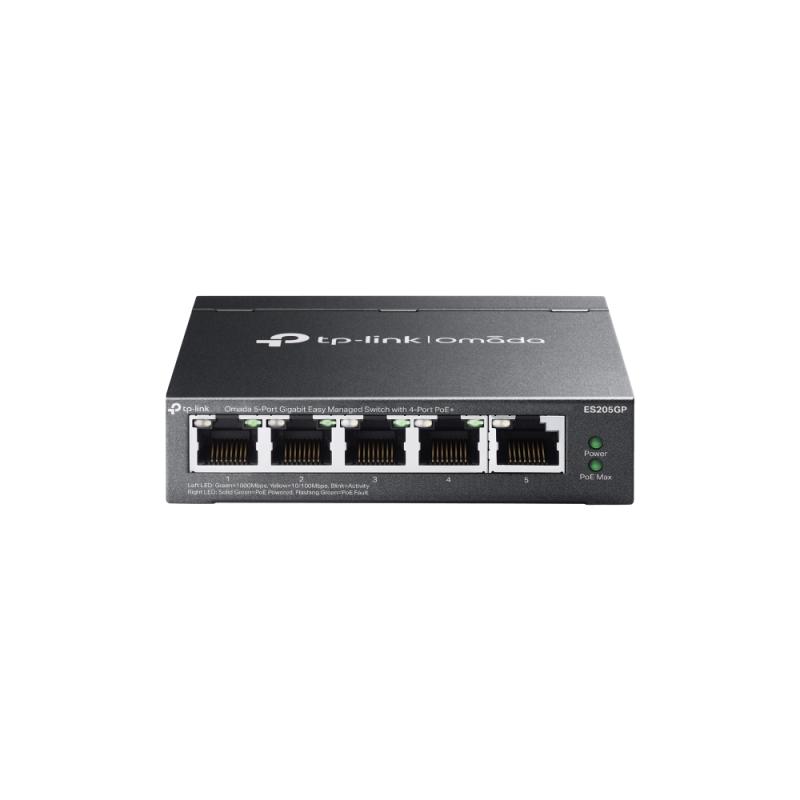

Omada 5-port gigabit easy managed switch port: 5× gigabit rj45 ports spec: desktop steel case feature: integration with omada sdn controller, flow control, loopback detection, port isolation, port mirroring, lag, vlan, igmp snooping, qos, storm control
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 5
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Dc Input Voltage:
- 53.5 V
Depth:
- 98 mm
Dhcp Features:
- DHCP client
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 7.4 Mpps
Height:
- 25 mm
Igmp Snooping:
- Yes
Jumbo Frames:
- 15
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 8000 entries
Networking Standards:
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Package Type:
- Box
Packet Buffer Memory:
- 4 MB
Port Mirroring:
- Yes
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Ports Quantity:
- 4
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 4
Power Source:
- AC/DC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Reset Button:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Type:
- Managed
Switching Capacity:
- 10 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 65 W
Transmission Distance (max):
- 0.25 km
User Guide:
- Yes
Virtual Lan Features:
- MTU VLAN, Port-based VLAN, Tagged VLAN
Vlan Support:
- Yes
Wall Mountable:
- Yes
Width:
- 100 mm
Descriere
Omada 5-Port Gigabit Easy Managed Switch PORT: 5× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Integration with Omada SDN Controller, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
