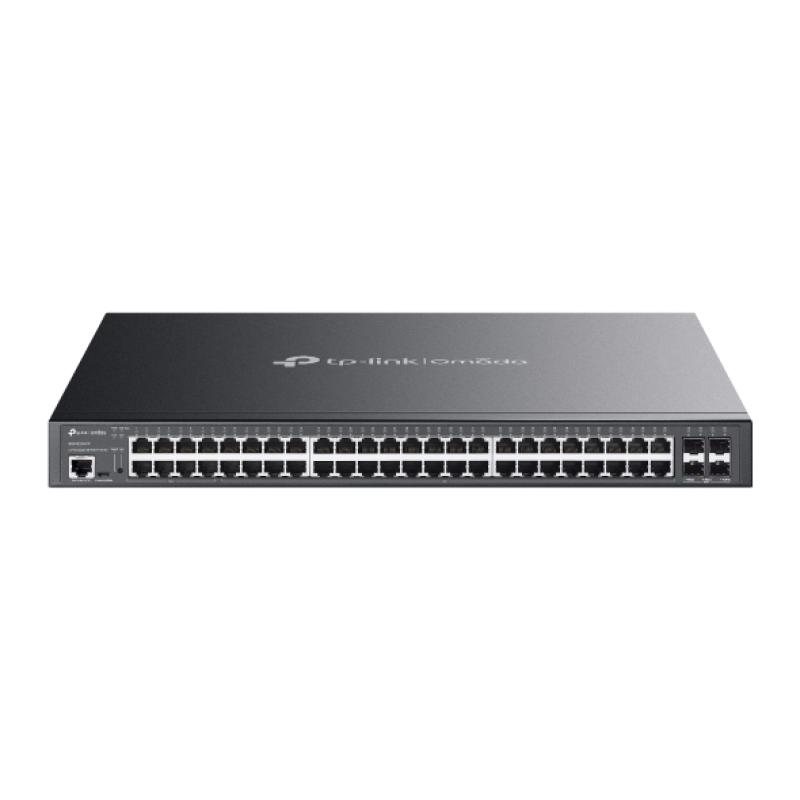

Omada 48-port gigabit and 4-port 10ge sfp+ l2+ managed switch with 40- port poe+ & 8-port poe++ port: 40× gigabit poe+ ports, 8×gigabit poe++ ports (max 90w/port), 4× 10g sfp+ slots, rj45/micro-usb console port spec: 802.3bt/at/af, 750 w poe power, 1u 19-
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- Yes
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- Auto VLAN, Guest VLAN
Basic Switching Rj-45 Ethernet Ports Quantity:
- 48
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Bpdu Filtering/protection:
- Yes
Broadcast Storm Control:
- Yes
Cables Included:
- AC
Certification:
- CE, FCC, Rohs
Cloud-managed:
- Yes
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/micro-USB
Depth:
- 330 mm
Dhcp Features:
- DHCP client, DHCP relay, DHCP server
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 130.9 Mpps
Head-of-line (hol) Blocking:
- Yes
Heat Dissipation:
- 2169.2 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Ip-mac-port Binding:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 24
Layer:
- Layer-2
Led Indicators:
- Yes
Link Aggregation:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 16000 entries
Multicast Support:
- Yes
Number Of Fans:
- 3 fan(s)
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 12 MB
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (max):
- 635.7 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet 4ppoe (poe++) Ports Quantity:
- 8
Power Over Ethernet Plus (poe+) Ports Quantity:
- 40
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rackable:
- Yes
Rate Limiting:
- Yes
Redundant-psu:
- Yes
Reset Button:
- Yes
Sfp+ Module Slots Quantity:
- 4
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stackable:
- No
Static Port Security:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Layer:
- L2
Switch Type:
- Managed
Switching Capacity:
- 176 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 750 W
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40- Port PoE+ & 8-Port PoE++ PORT: 40× Gigabit PoE+ Ports, 8×Gigabit PoE++ Ports (max 90W/port), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 750 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
