Omada 32-port 10ge l2+ managed switch with 24-port poe++ port: 24× 10g rj45 poe++ ports, 8× 10g sfp+ slots, rj45/usb type c console port spec: 802.3bt/at/af (up to 90w/port), 770 w poe power, 1u 19-inch rack- mountable steel case feature: integration with
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Ethernet (copper) Ports Quantity:
- 24
10g Support:
- Yes
2.5g Ethernet (copper) Ports Quantity:
- 24
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 110 - 240 V
Access Control List (acl):
- Yes
Address Resolution Protocol (arp) Entries (max):
- 510
Arp Inspection:
- Yes
Authentication:
- Guest VLAN
Authentication Type:
- AAA, RADIUS, TACACS+
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- 10G Ethernet (100/1000/10000)
Broadcast Storm Control:
- Yes
Cables Included:
- Power
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/USB Type-C
Cpu Defense:
- Yes
Depth:
- 330 mm
Device Link Detection Protocol (dldp):
- Yes
Dhcp Features:
- DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Dos Attack Prevention:
- Yes
Ethernet Ring Protection Switching (erps):
- Yes
Fanless:
- No
Fast Ethernet (copper) Ports Quantity:
- 24
Firmware Upgradeable:
- Yes
Form Factor:
- DIN rail
Forwarding Rate:
- 240 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 24
Heat Dissipation:
- 3444.7 BTU/h
Height:
- 44 mm
Housing Material:
- Metal
Igmp Snooping:
- Yes
Installed Sfp Modules Quantity:
- 8
Installed Sfp+ Modules Quantity:
- 8
Ipv4 & Ipv6 Features:
- Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Ipv4 Routes:
- 48
Ipv6 Routes:
- 48
Jumbo Frames:
- 9
Jumbo Frames Support:
- Yes
Lan-port-type:
- 10Gigabit
Lan-ports:
- 16
Layer:
- Layer-2
Led Indicators:
- Yes
Link Aggregation:
- Yes
Mac Address Table:
- 32000 entries
Mib Support:
- RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Mounting Bracket(s) Included:
- Yes
Mounting Brackets Included:
- Yes
Multicast Listener Discovery (mld) Snooping:
- Yes
Multicast Support:
- Yes
Number Of Fans:
- 4 fan(s)
Number Of Queues:
- 8
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 45 °C
Packaging Content:
- Console Cable
Packet Buffer Memory:
- 24 MB
Port Mirroring:
- Yes
Power Consumption (max):
- 1010.2 W
Power Consumption (typical):
- 953.7 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 90 W
Power Over Ethernet 4ppoe (poe++) Ports Quantity:
- 24
Power Saving Mode (eee):
- Yes
Power Source:
- AC/PoE
Power Supply Included:
- No
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
Quick Start Guide:
- Yes
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Rackable:
- No
Rate Limiting:
- Yes
Redundant-psu:
- Yes
Rubber Feet:
- Yes
Screws Included:
- Yes
Security Algorithms:
- HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Spanning Tree Protocol:
- Yes
Stackable:
- Yes
Static Port Security:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Sustainability Organizations:
- Accountability
Switch Layer:
- L2
Switch Type:
- Managed
Switching Capacity:
- 640 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 770 W
Unified Static Configuration:
- Yes
Virtual Lan Features:
- MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere

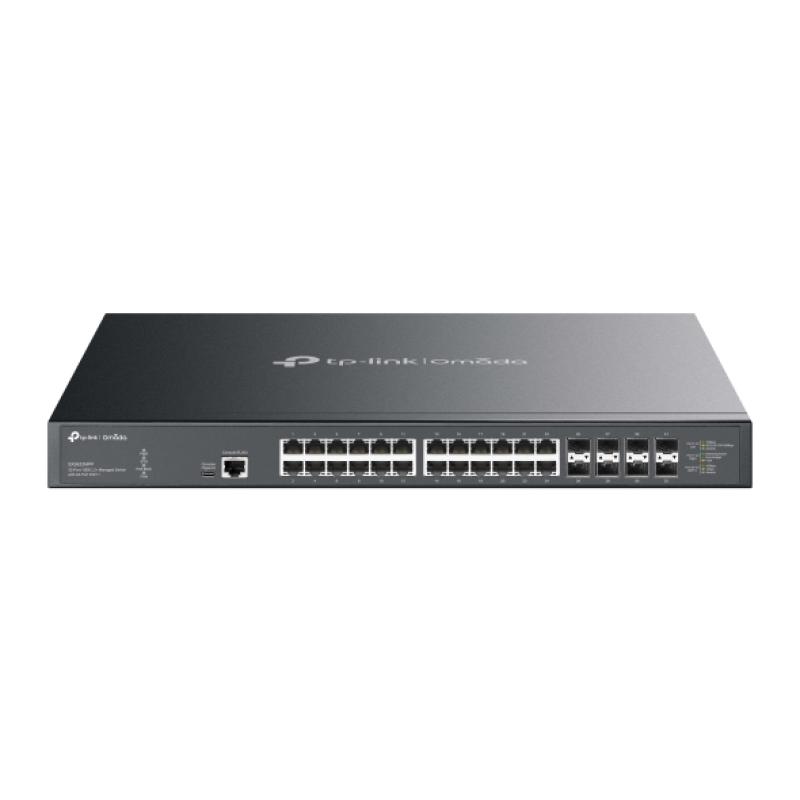

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, Fast PoE, Perpetual PoE, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
