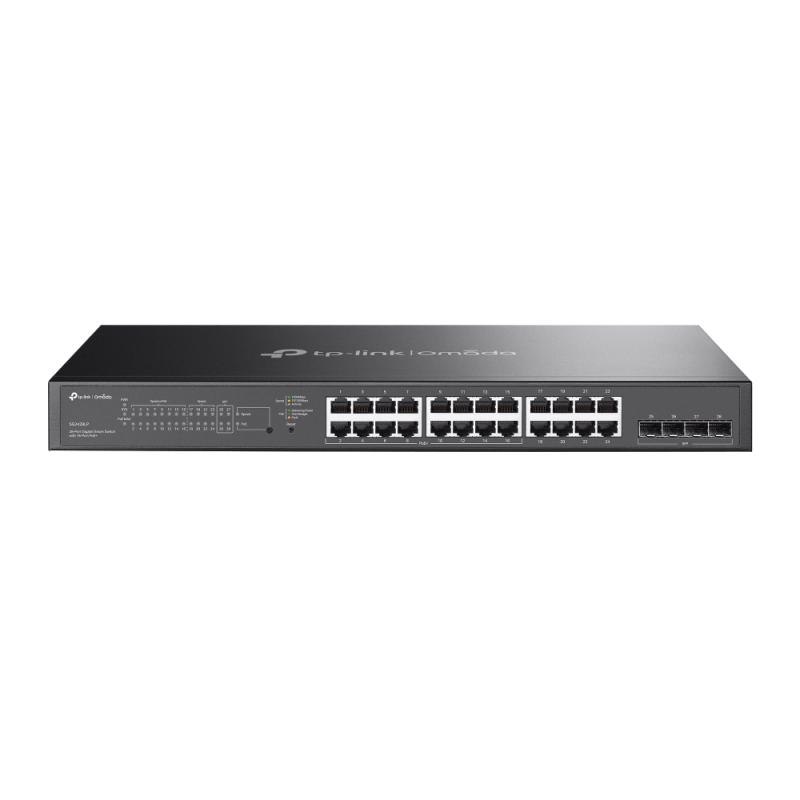

Omada 28-port gigabit smart switch with 16-port poe+ port: 24× gigabit ports (16×poe+ and 8× non-poe), 4× gigabit sfp slots spec: 16× 802.3at/af, 150 w poe power, 1u 19-inch rack-mountable steel case, fanless feature: integration with omada sdn controller
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cloud-managed:
- Yes
Depth:
- 220 mm
Dhcp Features:
- DHCP relay, DHCP server
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 41.66 Mpps
Heat Dissipation:
- 628 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 8000 entries
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.3af, IEEE 802.3at
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 4.1 MB
Password Protection:
- Yes
Power Consumption (max):
- 184.7 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 16
Power Source:
- AC/PoE
Producator:
Tp-link
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- Yes
Sfp Module Slots Quantity:
- 4
Sfp+ Module Slots Quantity:
- 4
Spanning Tree Protocol:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L2/L2+
Switch Type:
- Managed
Switching Capacity:
- 56 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 150 W
Virtual Lan Features:
- MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere
Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ PORT: 24× Gigabit Ports (16×PoE+ and 8× Non-PoE), 4× Gigabit SFP Slots SPEC: 16× 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case, Fanless FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
