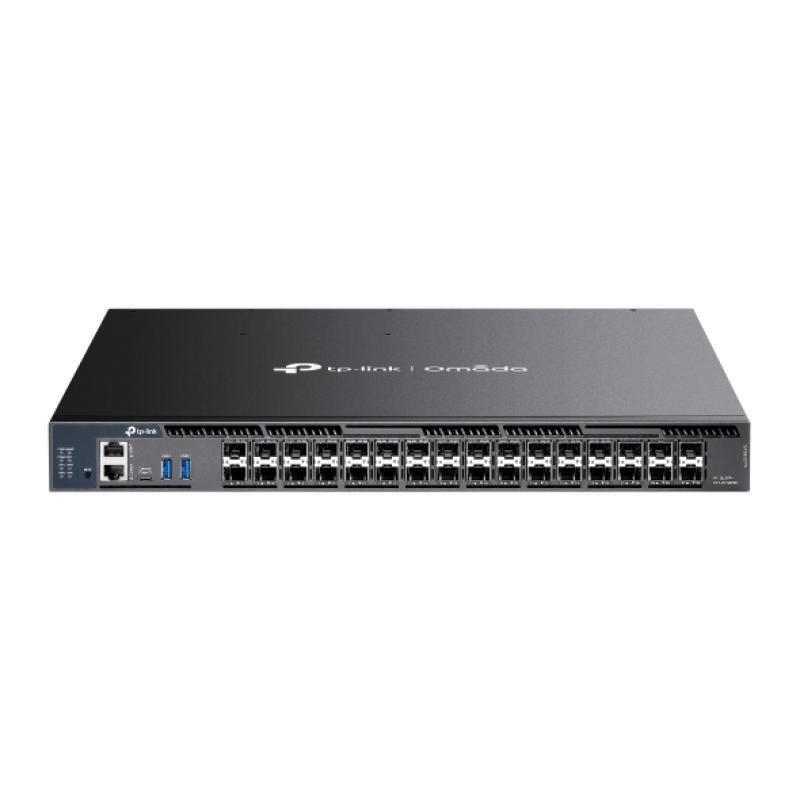

Omada 26-port 10g stackable l3 managed aggregation switch with 6 25g slots port: 26× 10g sfp+ slots, 6× 25g sfp28 slots, rj45/type c usb console port, management port, 2× usb3.0 ports spec: 1u 19-inch rack-mountable steel case feature: integration with om
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- Yes
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Basic Switching Rj-45 Ethernet Ports Type:
- No
Cables Included:
- Power
Cloud-managed:
- Yes
Console Port:
- RJ-45
Depth:
- 380 mm
Dhcp Features:
- DHCP Option 82
Forwarding Rate:
- 610.1 Mpps
Height:
- 44 mm
Igmp Snooping:
- Yes
Ip Routing:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- 10Gigabit
Lan-ports:
- 16
Layer:
- Layer-2
Mac Address Filtering:
- Yes
Mac Address Table:
- 128000 entries
Management Protocols:
- SNMPv1/v2c/v3
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
Number Of Fans:
- 4 fan(s)
Number Of Management Ports:
- 1 pc(s)
Number Of Power Supply Units:
- 2
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 40 °C
Packet Buffer Memory:
- 8 MB
Port Mirroring:
- Yes
Power Over Ethernet (poe):
- No
Power Source:
- AC
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Quick Start Guide:
- Yes
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Rackable:
- No
Redundant Power Supply (rps) Support:
- Yes
Redundant-psu:
- Yes
Sfp Module Slots Quantity:
- 26
Sfp+ Module Slots Quantity:
- 26
Ssh/ssl Support:
- Yes
Stackable:
- Yes
Static Port Security:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L2+/L3
Switch Type:
- Managed
Switching Capacity:
- 820 Gbit/s
Usb Type-a Ports Quantity:
- 2
Usb Type-c Ports Quantity:
- 1
Virtual Lan Features:
- MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere
Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots PORT: 26× 10G SFP+ Slots, 6× 25G SFP28 Slots, RJ45/Type C USB Console Port, Management Port, 2× USB3.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, ERPS, Static Routing, DHCP Server, DHCP Relay, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, hot swappable fan and power supply modules
