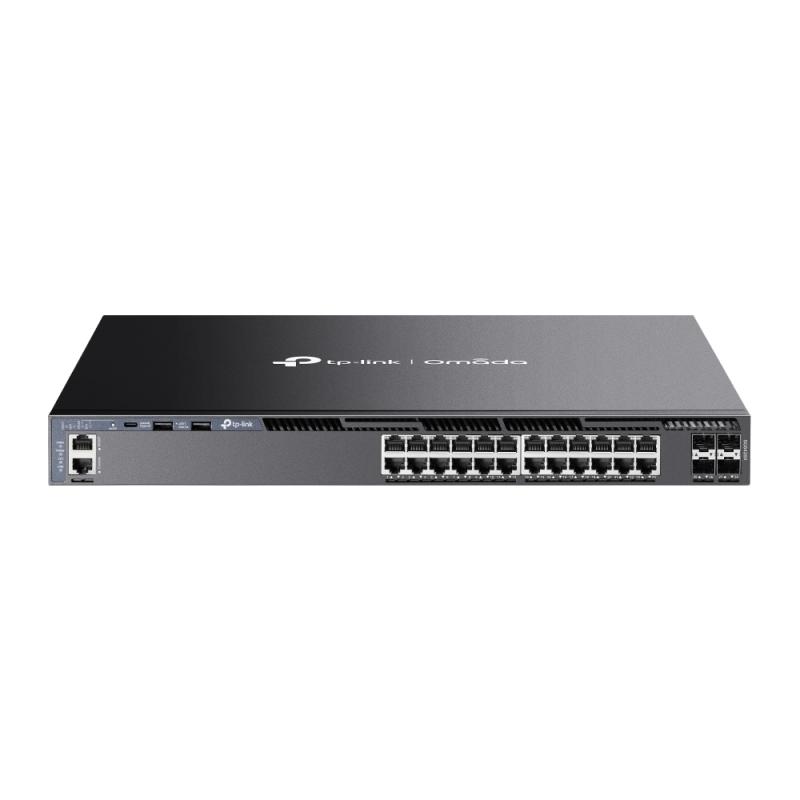

Omada 24-port gigabit stackable l3 managed switch with 4 10ge sfp+ slots port: 24× gigabit rj45 ports, 4× 10g sfp+ slots, rj45/type c usb console port, management port, 2× usb2.0 ports spec: 1u 19-inch rack-mountable steel case feature: integration with o
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- Auto VLAN, MAC-based authentication, Port-based authentication
Authentication Type:
- RADIUS
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Cables Included:
- AC, LAN (RJ-45)
Cloud-managed:
- Yes
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/USB Type-C
Depth:
- 380 mm
Dhcp Features:
- DHCP relay, DHCP snooping, DHCPv6 snooping
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 95.2 Mpps
Heat Dissipation:
- 96.91 BTU/h
Height:
- 44 mm
Igmp Entries:
- 2048
Igmp Snooping:
- Yes
Ip Routing:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 24
Layer:
- Layer-2
Led Indicators:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 32000 entries
Management:
- Da
Manual:
- Yes
Montare In Rack:
- Da
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Number Of Fans:
- 4 fan(s)
Number Of Vlans:
- 4000
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 40 °C
Packet Buffer Memory:
- 3 MB
Poe:
- Nu
Port Mirroring:
- Yes
Porturi Rj 45:
- 24× Gigabit RJ45 Ports
Porturi Sfp:
- 4× 10G SFP+ Slots
Power Consumption (max):
- 28.4 W
Power Over Ethernet (poe):
- No
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- Yes
Rackable:
- Yes
Rate Limiting:
- Yes
Redundant-psu:
- Yes
Sfp Module Slots Quantity:
- 4
Sfp+ Module Slots Quantity:
- 4
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stackable:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L3
Switch Type:
- Managed
Switching Capacity:
- 128 Gbit/s
System Event Log:
- Yes
Usb 2.0 Ports Quantity:
- 2
Virtual Lan Features:
- MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Viteza Transfer:
- Gigabit
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 440 mm
Descriere
Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies
