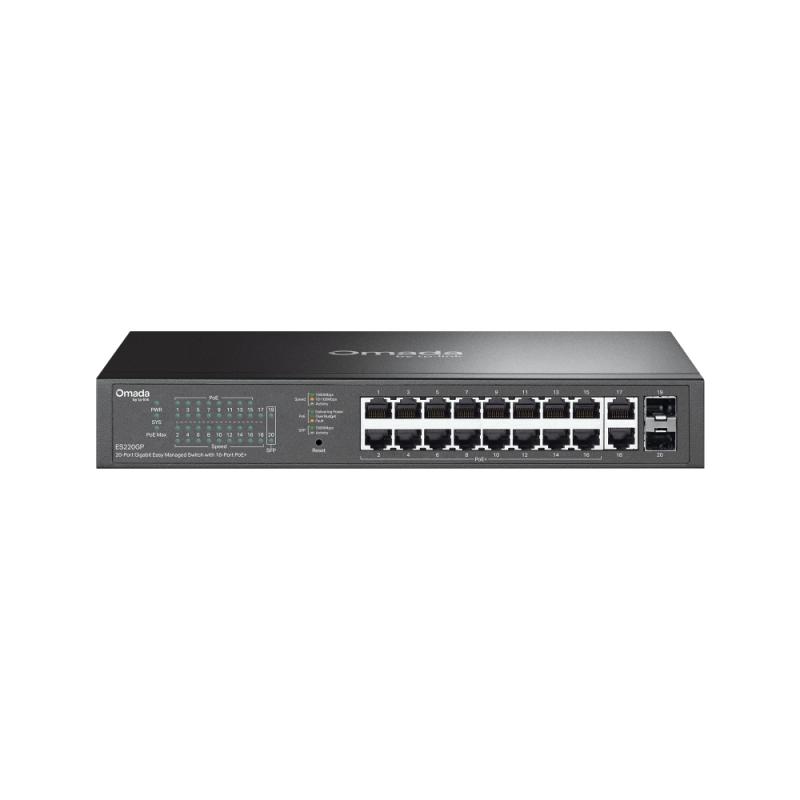

Omada 20-port switch es220gp, • 16× 10/100/1000 mbps poe+ rj45 ports (support 802.3at poe+ and 802.3af poe)• 2× 10/100/1000 mbps rj45 port• 2 × gigabit sfp slot, 100–240 vac, 50/60 hz, capacitate switch 40 gbps
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 18
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Cables Included:
- AC
Cloud-managed:
- Yes
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Depth:
- 180 mm
Dhcp Features:
- DHCP client
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fanless:
- Yes
Flow Control Support:
- Yes
Forwarding Rate:
- 29.76 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 18
Height:
- 44 mm
Housing Material:
- Metal
Igmp Snooping:
- Yes
Input Current:
- 2.5 A
Installed Sfp+ Modules Quantity:
- 0
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Lan-ports:
- 8
Link Aggregation:
- Yes
Mac Address Table:
- 8000 entries
Mean Time Between Failures (mtbf):
- 320156 h
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Noise Level:
- 20.1 dB
Number Of Queues:
- 8
Number Of Vlans:
- 32
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -5 - 40 °C
Packet Buffer Memory:
- 4 MB
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (max):
- 182.43 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet (poe) Type Supported:
- PoE+
Power Over Ethernet Plus (poe+) Ports Quantity:
- 16
Power Source:
- AC
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- Weighted Round Robin (WRR)
Rack Mounting:
- Yes
Rackable:
- No
Redundant-psu:
- No
Sfp Module Slots Quantity:
- 2
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Type:
- Managed
Switching Capacity:
- 40 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 150 W
User Guide:
- Yes
Virtual Lan Features:
- MTU VLAN, Port-based VLAN, Tagged VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Width:
- 294 mm
Descriere
Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
