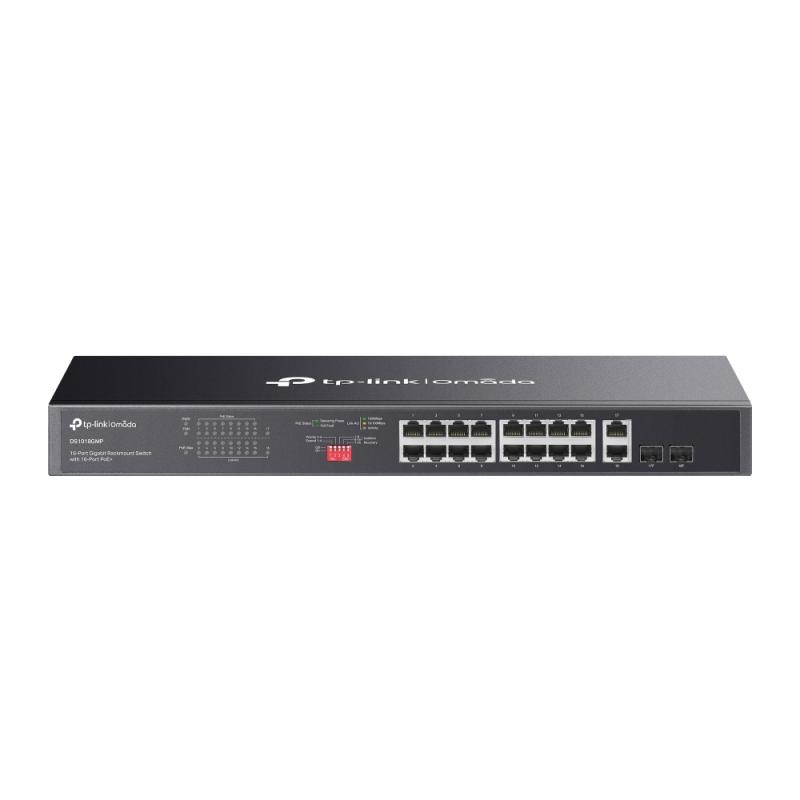

Omada 18-port gigabit rackmount switch with 16-port poe+ port: 16× gigabit poe+ ports, 2× gigabit non-poe ports, 2× combo gigabit sfp slots spec: 802.3at/af, 250 w poe power, 1u 19-inch rack-mountable steel case feature: plug and play
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 16
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cables Included:
- Power
Compliance Certificates:
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Depth:
- 180 mm
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 26.78 Mpps
Heat Dissipation:
- 1000.29 BTU/h
Height:
- 44 mm
Housing Material:
- Metal
Jumbo Frames:
- 10
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Activity, Link, PoE, Power
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 8000 entries
Management:
- Nu
Montare In Rack:
- Nu
Number Of Fans:
- 2 fan(s)
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 50 °C
Packet Buffer Memory:
- 4.1 MB
Plug And Play:
- Yes
Poe:
- Nu
Porturi Rj 45:
- 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports
Porturi Sfp:
- 2× Combo Gigabit SFP Slots
Power Connector:
- AC-in jack
Power Consumption (max):
- 293.34 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 16
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mount Kit:
- Yes
Rack Mounting:
- Yes
Rubber Feet:
- Yes
Sfp Module Slots Quantity:
- 2
Sfp+ Module Slots Quantity:
- 2
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Type:
- Unmanaged
Switching Capacity:
- 36 Gbit/s
Total Power Over Ethernet (poe) Budget:
- 250 W
User Guide:
- Yes
Viteza Transfer:
- Gigabit
Width:
- 440 mm
Descriere
Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Combo Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Plug and Play
