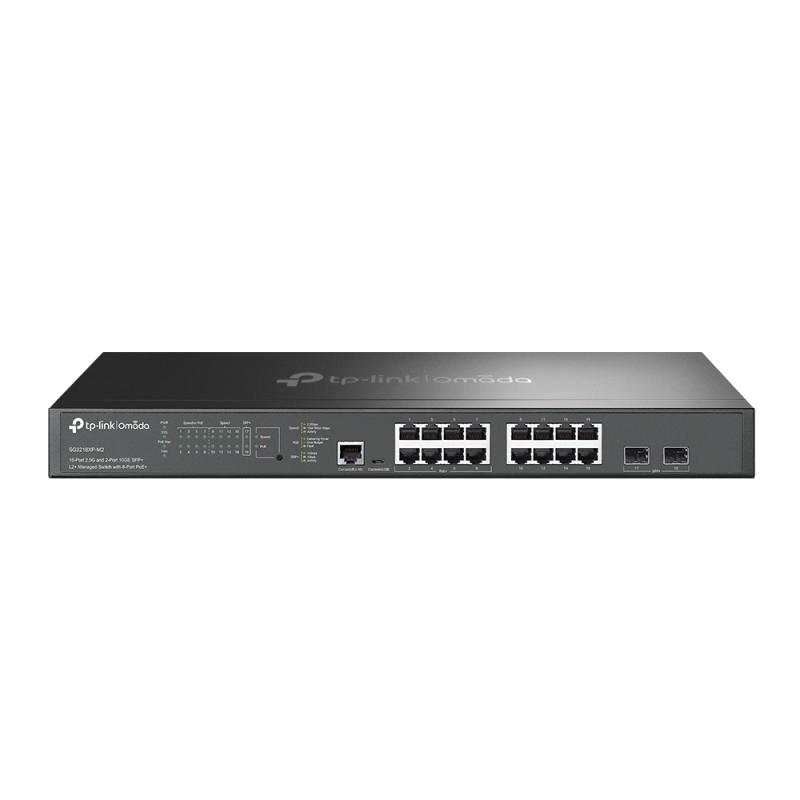

Omada 16-port 2.5gbase-t and 2-port 10ge sfp+ l2+ managed switch with 8- port poe+ port: 8× 2.5g poe+ ports, 8× 2.5g non-poe ports, 2× 10g sfp+ slots, rj45/micro-usb console port spec: 802.3at/af, 240 w poe power, 1u 19-inch rack-mountable steel case feat
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- Yes
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Arp Inspection:
- Yes
Authentication:
- MAC-based authentication, Port-based authentication
Authentication Type:
- AAA, TACACS+
Basic Switching Rj-45 Ethernet Ports Quantity:
- 16
Basic Switching Rj-45 Ethernet Ports Type:
- 2.5G Ethernet (100/1000/2500)
Bpdu Filtering/protection:
- Yes
Broadcast Storm Control:
- Yes
Cables Included:
- AC
Certification:
- CE, FCC, Rohs
Cloud-managed:
- Yes
Compliance Certificates:
- Federal Communications Commission (FCC), RoHS
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45/micro-USB
Depth:
- 180 mm
Dhcp Features:
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet Lan Data Rates:
- 100,1000,2500 Mbit/s
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 89.28 Mpps
Garp Vlan Registration Protocol (gvrp):
- Yes
Head-of-line (hol) Blocking:
- Yes
Heat Dissipation:
- 1021.64 BTU/h
Igmp Snooping:
- Yes
Installed Sfp Modules Quantity:
- 0
Installed Sfp+ Modules Quantity:
- 0
Ip Routing:
- Yes
Ip-mac-port Binding:
- Yes
Jumbo Frames:
- 9000
Jumbo Frames Support:
- Yes
Lan-port-type:
- FastEthernet
Led Indicators:
- Yes
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Filtering:
- Yes
Mac Address Table:
- 16000 entries
Management Protocols:
- SNMP v1/v2c/v3, SNTP
Multicast Listener Discovery (mld) Snooping:
- Y
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number Of Fans:
- 2 fan(s)
Number Of Ip Interfaces:
- 32
Number Of Static Routes:
- 48
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 50 °C
Package Type:
- Box
Packet Buffer Memory:
- 12 MB
Password Protection:
- Yes
Port Mirroring:
- Yes
Power Connector:
- AC-in jack
Power Consumption (max):
- 299.4 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 8
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
Tp-link
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- SP, WRR+SP, Weighted Round Robin (WRR)
Quick Start Guide:
- Yes
Rack Mounting:
- Yes
Rate Limiting:
- Yes
Security Algorithms:
- HTTPS, SSH, SSH-2, SSL/TLS
Sfp Module Slots Quantity:
- 2
Sfp+ Module Slots Quantity:
- 2
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Static Port Security:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Sustainability Compliance:
- Yes
Switch Layer:
- L2+
Switch Type:
- Managed
Switching Capacity:
- 120 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 240 W
Virtual Lan Features:
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Descriere
Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
