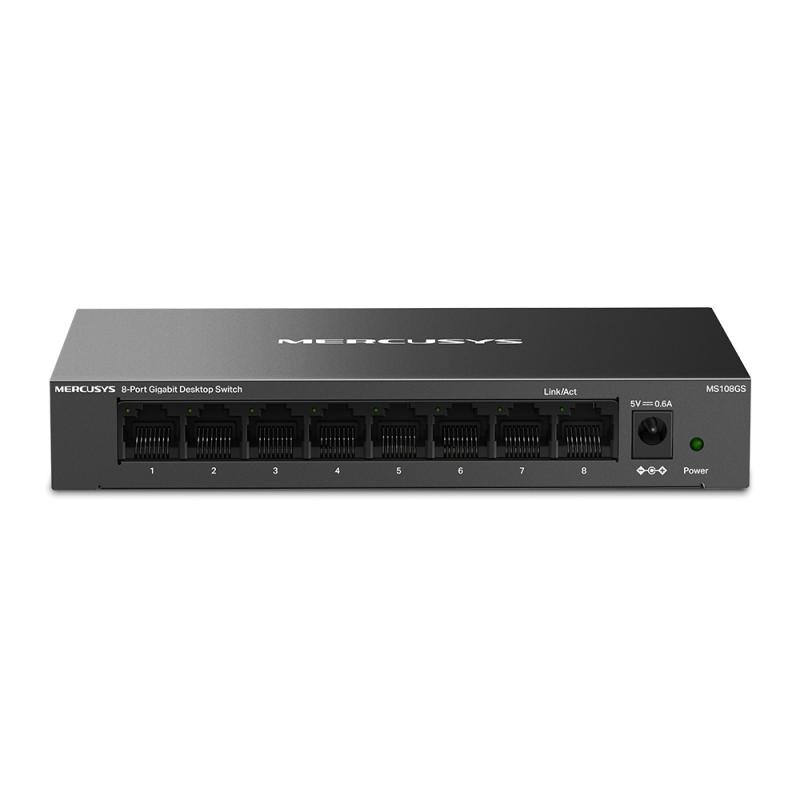

Mercusys ms108gs. switch type: unmanaged. basic switching rj-45 ethernet ports type: gigabit ethernet (10/100/1000), basic switching rj-45 ethernet ports quantity: 8. full duplex. mac address table: 8000 entries, switching capacity: 16 gbit/s. networking
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
10g Support:
- No
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 220 V
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cables Included:
- AC
Certification:
- CE, RoHS
Dc Input Voltage:
- 5 V
Depth:
- 99.1 mm
Fanless:
- Yes
Flow Control Support:
- Yes
Full Duplex:
- Yes
Half Duplex:
- Yes
Heat Dissipation:
- 14.348 BTU/h
Height:
- 252 mm
Housing Material:
- Metal
Input Current:
- 0.6 A
Installed Sfp+ Modules Quantity:
- 0
Jumbo Frames:
- 15000
Jumbo Frames Support:
- Yes
Led Indicators:
- Yes
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 8000 entries
Manual:
- Yes
Networking Standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 40 °C
Packet Buffer Memory:
- 0.5 MB
Power Connector:
- DC-in jack
Power Consumption (max):
- 4.22 W
Power Over Ethernet (poe):
- No
Power Source:
- DC
Power Supply Included:
- Yes
Producator:
MERCUSYS
Product Colour:
- Black
Quick Start Guide:
- Yes
Rack Mounting:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Switch Type:
- Unmanaged
Switching Capacity:
- 1.6 Gbit/s
Transmission Distance (max):
- 0.1 km
Wall Mountable:
- Yes
Width:
- 158 mm
Descriere
Mercusys MS108GS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack. Wall mountable
