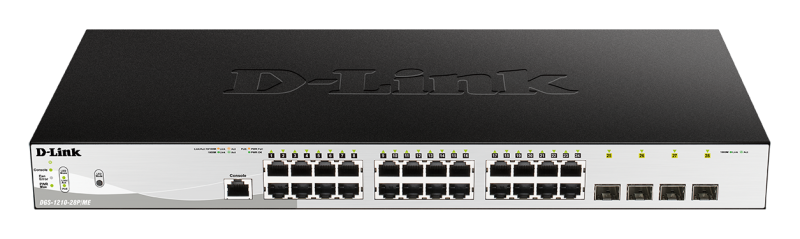

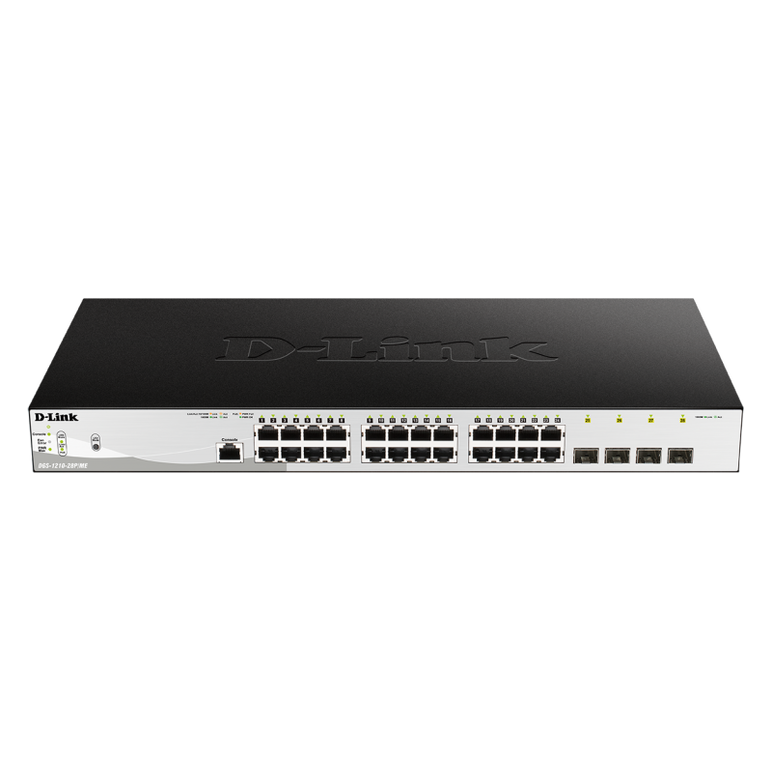

D-link switch dgs-1210-28p/me, 24 porturi gigabit poe base-t, 4 porturi sfp1000mbps, capacity 56gbps, 19" rackmount, websmart, 2*fan
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Access Control List (acl) Ingress:
- 256
Access Control List (acl) Rules:
- 256
Active Link Detection:
- Yes
Arp Inspection:
- Yes
Authentication Type:
- AAA, RADIUS, TACACS+
Auto Mdi/mdi-x:
- Yes
Auto-negotiation:
- Yes
Basic Switching Rj-45 Ethernet Ports Quantity:
- 24
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Bpdu Filtering/protection:
- Yes
Broadcast Storm Control:
- Yes
Cable Types Supported:
- Cat5, Cat5e
Compliance Certificates:
- BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Configuring Location Settings (cli):
- Yes
Console Port:
- RJ-45
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T
Depth:
- 210 mm
Dhcp Features:
- DHCP client, DHCP relay, DHCP server, DHCP snooping
Ethernet Lan Data Rates:
- 1000 Mbit/s
Fanless:
- No
Fiber Ethernet Cabling Technology:
- 1000Base-X
Flash Memory:
- 32 MB
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 41.7 Mpps
Full Duplex:
- Yes
Garp Vlan Registration Protocol (gvrp):
- Yes
Half Duplex:
- Yes
Heat Dissipation:
- 857.98 BTU/h
Height:
- 44 mm
Igmp Snooping:
- Yes
Input Voltage:
- 100 - 240 V
Installed Sfp Modules Quantity:
- 4
Installed Sfp+ Modules Quantity:
- 4
Ip-mac-port Binding:
- Yes
Ipv4 Routes:
- 64
Ipv6 Routes:
- 32
Lan-port-type:
- Gigabit
Lan-ports:
- 24
Layer:
- Unmanaged
Led Indicators:
- Activity, Fan fail, Link, Power, Speed
Link Aggregation:
- Yes
Loop Protection:
- Yes
Mac Address Table:
- 16000 entries
Mean Time Between Failures (mtbf):
- 331669 h
Memory Type:
- DDR3-SDRAM
Multicast Features:
- Controllable multicast
Multicast Listener Discovery (mld) Snooping:
- MLD v1, MLD v2
Multicast Support:
- Yes
Noise Level:
- 52.9 dB
Number Of Fans:
- 2 fan(s)
Number Of Ip Interfaces:
- 4
Number Of Multicast Groups Filtered:
- 256
Number Of Queues:
- 8
Number Of Static Routes:
- 96
Number Of Vlans:
- 4094
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 5 - 50 °C
Packet Buffer Memory:
- 1.5 MB
Password Protection:
- Yes
Port Mirroring:
- Yes
Power Consumption (max):
- 251.5 W
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Ports Quantity:
- 24
Power Protection Features:
- Surge protection
Power Source:
- AC
Producator:
D-LINK
Quality Of Service (qos) Support:
- Yes
Queue Scheduling Algorithms:
- Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Rackable:
- Yes
Redundant-psu:
- No
Security Algorithms:
- EAP, SNMP, SNMPv2, SNMPv3
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stackable:
- No
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 0 - 95%
Storage Temperature (t-t):
- -40 - 70 °C
Store-and-forward:
- Yes
Sustainability Certificates:
- UL ECOLOGO
Sustainability Compliance:
- Yes
Switch Layer:
- L2+/L3
Switch Type:
- Managed
Switching Capacity:
- 56 Gbit/s
System Event Log:
- Yes
Total Power Over Ethernet (poe) Budget:
- 193 W
Traffic Classification:
- Yes
Virtual Lan Features:
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Weight:
- 3.34 kg
Width:
- 440 mm
Descriere
D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan
