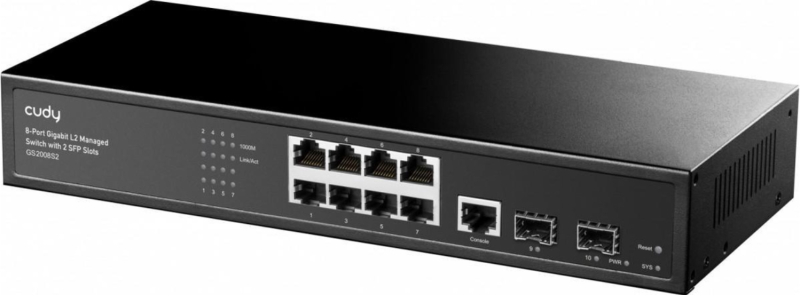

Cudy switch managed 8-port layer 2 10/100/1000m, 8x porturi gigabit ethernet + 2x porturi gigabit sfp + 1 port management, backplane bandwidth 20gbps, suporta dial-up vlan, extensie 250 metri, functie layer 2 network management, suport routare, dhcp, vlan
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Input Voltage:
- 100 - 240 V
Authentication:
- Port-based authentication
Authentication Type:
- RADIUS, TACACS+
Basic Switching Rj-45 Ethernet Ports Quantity:
- 8
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Broadcast Storm Control:
- Yes
Cable Types Supported:
- Cat3, Cat4, Cat5
Console Port:
- RJ-45
Depth:
- 181 mm
Dhcp Features:
- DHCP Option 82, DHCP server, DHCP snooping
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fiber Type:
- Multi-mode
Flash Memory:
- 16 MB
Flow Control Support:
- Yes
Form Factor:
- 1U
Forwarding Rate:
- 41.66 Mpps
Gigabit Ethernet (copper) Ports Quantity:
- 8
Height:
- 44 mm
Igmp Snooping:
- Yes
Installed Sfp Modules Quantity:
- 2
Installed Sfp+ Modules Quantity:
- 2
Ip-mac-port Binding:
- Yes
Ipv4 & Ipv6 Features:
- IPv6 Telnet
Jumbo Frames:
- 9.6
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 8
Layer:
- Layer-2
Led Indicators:
- Activity, Link, Power, System
Link Aggregation:
- Yes
Mac Address Auto-aging Supported:
- Yes
Mac Address Auto-learning Supported:
- Yes
Mac Address Table:
- 8000 entries
Memory Type:
- DDR-SDRAM
Multicast Support:
- Yes
Networking Standards:
- IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav
Number Of Vlans:
- 4096
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 10 - 50 °C
Package Depth:
- 262 mm
Package Height:
- 84 mm
Package Type:
- Box
Package Weight:
- 1.54 kg
Package Width:
- 312 mm
Packet Buffer Memory:
- 0.5 MB
Port Mirroring:
- Yes
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
CUDY
Product Colour:
- Black
Quality Of Service (qos) Support:
- Yes
Rack Mounting:
- Yes
Rackable:
- No
Rate Limiting:
- Yes
Redundant-psu:
- No
Spanning Tree Protocol:
- Yes
Ssh/ssl Support:
- Yes
Stackable:
- Yes
Static Route:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 70 °C
Switch Layer:
- L2
Switch Type:
- Managed
Switching Capacity:
- 56 Gbit/s
System Event Log:
- Yes
Traffic Classification:
- Yes
Virtual Lan Features:
- Voice VLAN
Vlan Support:
- Yes
Web-based Management:
- Yes
Weight:
- 1.01 kg
Width:
- 26.8 mm
Descriere
CUDY Switch Managed 8-Port Layer 2 10/100/1000M, 8x porturi Gigabit Ethernet + 2x porturi Gigabit SFP + 1 port management, backplane bandwidth 20Gbps, suporta dial-up VLAN, extensie 250 metri, functie Layer 2 network management, suport routare, DHCP, VLAN, MAC address, ACL Access control, QOS, multicast, storm suppression, IPV4/IPV6 si alte functii de business, suporta autentificarea 802.1X, ARP intrusion detection, protectie sursa IP, protectie DoS si alte politici de control de securitate, suporta STP/RSTP/MSTP protocol spanning tree, functii dinamice/Network protection precum static link aggregation, suporta Web/Telnet/CLI/SSH management si metode de mentenanta
