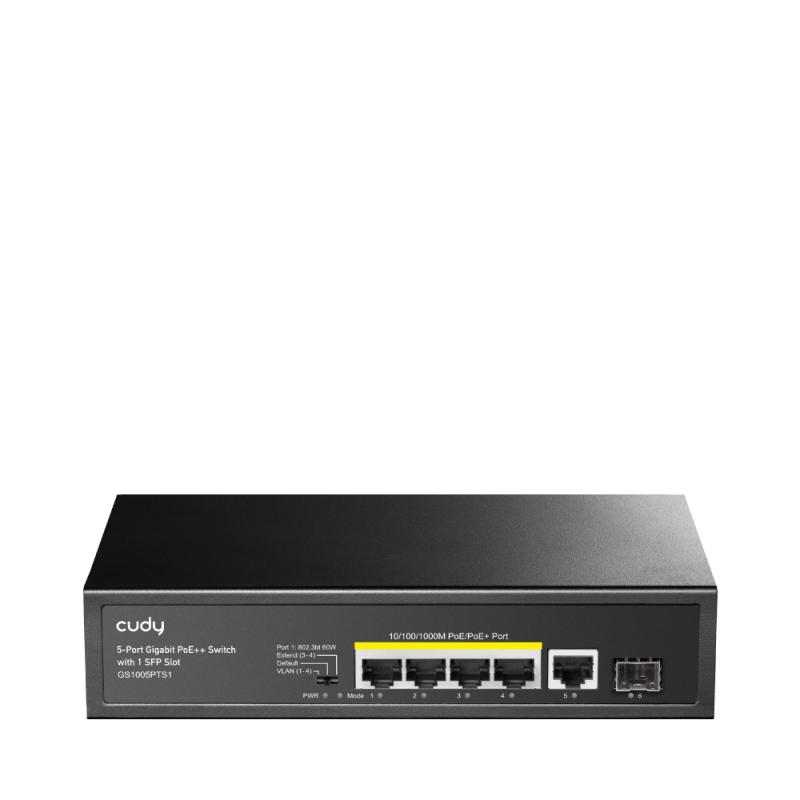

Cudy 5-port 10/100/1000m poe+ switch 120w, 4-port 10/100/1000m poe+ ports, 60 watts for port #1, 802.3at/af, vlan on/off, extend on/off, watchdog on/off， fanless, ±4kv surge protection,watchdog, 120w internal power supply
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Input Voltage:
- 100 - 240 V
Basic Switching Rj-45 Ethernet Ports Quantity:
- 5
Basic Switching Rj-45 Ethernet Ports Type:
- Gigabit Ethernet (10/100/1000)
Cable Types Supported:
- Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Cables Included:
- AC
Combo Sfp Ports Quantity:
- 1
Copper Ethernet Cabling Technology:
- 10BASE-T, 100BASE-TX, 1000BASE-TX
Depth:
- 118 mm
Ethernet Lan Data Rates:
- 10,100,1000 Mbit/s
Fanless:
- Yes
Fiber Type:
- Multi-mode
Flow Control Support:
- Yes
Full Duplex:
- Yes
Half Duplex:
- Yes
Height:
- 44 mm
Housing Material:
- Metal
Input Current:
- 1.25 A
Installed Sfp Modules Quantity:
- 1
Installed Sfp+ Modules Quantity:
- 1
Jumbo Frames:
- 9216
Jumbo Frames Support:
- Yes
Lan-port-type:
- Gigabit
Lan-ports:
- 5
Layer:
- Layer-2
Led Indicators:
- Activity, Link, Power
Mac Address Table:
- 2000 entries
Manual:
- Yes
Master (outer) Case Height:
- 402 mm
Master (outer) Case Length:
- 320 mm
Master (outer) Case Net Weight:
- 19 kg
Master (outer) Case Width:
- 505 mm
Mean Time Between Failures (mtbf):
- 100000 h
Networking Standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating Altitude:
- 0 - 3048 m
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- -20 - 50 °C
Output Current:
- 1.25 A
Output Voltage:
- 52 V
Package Depth:
- 190 mm
Package Height:
- 60 mm
Package Type:
- Box
Package Weight:
- 900 g
Package Width:
- 245 mm
Packet Buffer Memory:
- 1 MB
Plug And Play:
- Yes
Power Connector:
- AC-in jack
Power Over Ethernet (poe):
- Yes
Power Over Ethernet (poe) Ports Quantity:
- 4
Power Over Ethernet (poe) Power Per Port:
- 30 W
Power Over Ethernet Plus (poe+) Ports Quantity:
- 1
Power Source:
- AC
Power Supply Included:
- Yes
Producator:
CUDY
Product Colour:
- Black
Products Per Master (outer) Case:
- 20 pc(s)
Rack Mounting:
- Yes
Rackable:
- No
Redundant-psu:
- No
Stackable:
- No
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 85 °C
Store-and-forward:
- Yes
Switching Capacity:
- 12 Gbit/s
Switching Optical Modules Type:
- Gigabit Ethernet
Throughput:
- 8.928 Mpps
Total Power Over Ethernet (poe) Budget:
- 120 W
Uplink Ports Quantity:
- 1
Vlan Support:
- Yes
Wall Mountable:
- Yes
Weight:
- 600 g
Width:
- 200 mm
Descriere
CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply
