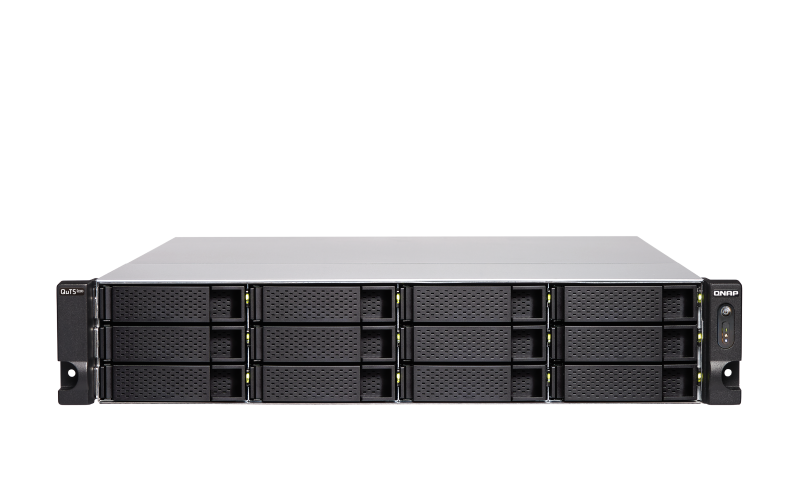

Qnap ts-h1886xu-rp-r2-d1622-32g, 18-bay sata 6gbps (12 x 3.5" + 6 x 2.5") 2u nas, intel xeon d-1622 4 cores / 8 threads up to 3.20 ghz, 32gb ecc ddr4 ram (4 x dimms, max 128gb total), 4 x 2.5gbe rj45 lan, 2 x 10gbe sfp+ smartnic, optional 25gbe & fibre ch
-33%
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Backup Features:
- Cloud, iSCSI LUN
Backup Function:
- Yes
Browser Supported:
- Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Built-in Ftp Server:
- Yes
Buzzer:
- Yes
Cables Included:
- AC, LAN (RJ-45)
Chassis Type:
- Rack (3U)
Concurrent Connections:
- 10000
Cooling Type:
- Active
Cpu Configuration (max):
- 1
Depth:
- 549.7 mm
Device Class:
- Large Enterprise Business
Dhcp Server:
- Yes
Disk Roaming:
- Yes
Dynamic Dns (ddns):
- Yes
Embedded Options Available:
- No
Enhanced Intel Speedstep Technology:
- Yes
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 4
Ethernet Lan Data Rate Supported (max):
- 10000 Mbit/s
Ethernet Lan Data Rates:
- 100,1000,2500 Mbit/s
Execute Disable Bit:
- Yes
Fan Diameter:
- 6 cm
Fan Voltage:
- 12 V
Fiber Optic Connector:
- SFP+
Fiber Ports Quantity:
- 2
Flash Memory:
- 5000 MB
Harmonized System (hs) Code:
- 84714100
Height:
- 88.3 mm
Hot Spare:
- Yes
Hot-swap Drive Bays:
- Yes
Idle States:
- Yes
Installed Storage Drive Type:
- No
Intel 64:
- Yes
Intel Quickassist Technology:
- No
Intel Trusted Execution Technology:
- Yes
Intel Tsx-ni:
- Yes
Intel Virtualization Technology (vt-x):
- Yes
Intel Virtualization Technology For Directed I/o (vt-d):
- Yes
Intel Vt-x With Extended Page Tables (ept):
- Yes
Internal Memory Type:
- DDR4
Iscsi Support:
- Yes
Jumbo Frames Support:
- Yes
Led Indicators:
- HDD, LAN, SSD, Status
Management Protocols:
- SNMP
Maximum Ram Supported:
- 128 GB
Memory Form Factor:
- UDIMM
Memory Slots:
- 4
Multilingual Support:
- Yes
Number Of Fans:
- 3 fan(s)
Number Of Power Supply Units:
- 2
Number Of Screws:
- 112
Number Of Storage Drives Installed:
- 0
Number Of Storage Drives Supported:
- 18
On/off Switch:
- Yes
Online Raid Expansion:
- Yes
Online Raid Migration:
- Yes
Operating Relative Humidity (h-h):
- 5 - 95%
Operating System Installed:
- QuTS hero
Operating System Version:
- h5.0.0
Operating Temperature (t-t):
- 0 - 40 °C
Other Operating Systems Supported:
- IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Package Weight:
- 18.7 kg
Pci Express X4 (gen 3.x) Slots:
- 1
Pci Express X8 (gen 3.x) Slots:
- 1
Power Cables Quantity:
- 2
Power Consumption (typical):
- 117.92 W
Power Supply Location:
- Built-in
Power Supply Unit (psu) Capacity:
- 550 W
Processor Boost Frequency:
- 3.2 GHz
Processor Cache:
- 6 MB
Processor Cores:
- 4
Processor Family:
- Intel® Xeon® D
Processor Frequency:
- 2.6 GHz
Processor Manufacturer:
- Intel
Processor Model:
- D-1622
Producator:
QNAP
Product Colour:
- Black, Grey
Quick Installation Guide:
- Yes
Raid Levels:
- 0, 1, 5, 6, 10, 50, 60, JBOD
Raid Rebuild:
- Yes
Raid Support:
- Yes
Redundant Power Supply (rps) Support:
- Yes
Reset Button:
- Yes
S.m.a.r.t. Support:
- Yes
Security Algorithms:
- 256-bit AES, FIPS 140-2, SNMPv2, SNMPv3
Snapshot:
- Yes
Storage Drive Capacity:
- 0 GB
Storage Drive Sizes Supported:
- 2.5,3.5
Storage Drives Installed:
- No
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -20 - 70 °C
Storage-format:
- NAS
Storage-type:
- HDD
Supported File Systems:
- FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Supported Network Protocols:
- IPv4, IPv6, SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Supported Storage Drive Interfaces:
- Serial ATA II, Serial ATA III
Supported Storage Drive Types:
- HDD & SSD
Supported-hdds:
- 6
System Log:
- Yes
Total Installed Storage Capacity:
- 0 TB
Type:
- NAS
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Wake-on-lan Ready:
- Yes
Web-based Management:
- Yes
Weight:
- 12.7 kg
Width:
- 482 mm
Descriere
QNAP TS-h1886XU-RP-R2-D1622-32G, 18-Bay SATA 6Gbps (12 x 3.5" + 6 x 2.5") 2U NAS, Intel Xeon D-1622 4 cores / 8 threads up to 3.20 GHz, 32GB ECC DDR4 RAM (4 x DIMMs, max 128GB total), 4 x 2.5GbE RJ45 LAN, 2 x 10GbE SFP+ SmartNIC, optional 25GbE & fibre channel FC support, iSCSI, RAID, 3 x PCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+ card), USB 3.2 Gen1, redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
