Nas qnap h674 6-bay, cpu intel core i5-12400 6-core 12-thread processor, up to 4.4ghz, ram 32gb (2x 16gb) ddr4 sodimm (max. 128gb), 6 x 2.5"/3.5" sata 6gbps + 2 x m.2 2280 nvme hdd (neincluse), lan: 2 x 2.5gbe (2.5g/1g/100m/10m), usb3.2 gen1: 3 (2 x usb-
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Ac Input Voltage:
- 100 - 240 V
Access Control List (acl):
- Yes
Auto-rebuild:
- Yes
Backup Button:
- Yes
Backup Features:
- Cloud, USB drive, iSCSI LUN
Backup Function:
- Yes
Built-in Display:
- Yes
Built-in Ftp Server:
- Yes
Bus Type:
- DMI4
Buzzer:
- Yes
Cable Lock Slot:
- Yes
Cable Lock Slot Type:
- Kensington
Cables Included:
- AC, LAN (RJ-45)
Chassis Type:
- Tower
Concurrent Connections:
- 25000
Cooling Type:
- Active
Cpu Configuration (max):
- 1
Depth:
- 280.8 mm
Device Class:
- Small & Medium Business
Dhcp Server:
- Yes
Disk Roaming:
- Yes
Disk Scan:
- Yes
Display Type:
- LCD
Drive Bay Locking:
- Yes
Drive Tray Key Included:
- Yes
Dynamic Dns (ddns):
- Yes
Embedded Options Available:
- No
Enhanced Intel Speedstep Technology:
- Yes
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 2
Ethernet Lan Data Rates:
- 10,100,1000,2500 Mbit/s
Execute Disable Bit:
- Yes
Fan Diameter:
- 9.2 cm
Fan Diameter 2:
- 6 cm
Fan Voltage:
- 12 V
Fibre Channel:
- Yes
Flash Memory:
- 5000 MB
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 1.4b
Height:
- 188.2 mm
Hot Spare:
- Yes
Hot-swap Drive Bays:
- Yes
Idle States:
- Yes
Installed Storage Drive Type:
- No
Intel 64:
- Yes
Intel Virtualization Technology (vt-x):
- Yes
Intel Virtualization Technology For Directed I/o (vt-d):
- Yes
Intel Vt-x With Extended Page Tables (ept):
- Yes
Internal Memory Type:
- DDR4
Iscsi Support:
- Yes
Jumbo Frames Support:
- Yes
L2 Cache:
- 7.5 MB
Led Indicators:
- HDD, LAN, M.2, Status, USB
Linux Operating Systems Supported:
- Ubuntu 14.04, CentOS 7.0, openSUSE 12.1, openSUSE 12.2
Management Protocols:
- SNMP V2/V3
Maximum Ram Supported:
- 64 GB
Memory Form Factor:
- SO-DIMM
Memory Slots:
- 2
Multilingual Support:
- Yes
Number Of Fans:
- 3 fan(s)
Number Of M.2 (m & B) Slots:
- 2
Number Of Power Supply Units:
- 1
Number Of Screws:
- 42
Number Of Storage Drives Installed:
- 0
Number Of Storage Drives Supported:
- 6
Number Of Users:
- 16000 user(s)
On-board Graphics Card Model:
- Intel UHD Graphics 730
On/off Switch:
- Yes
Operating Relative Humidity (h-h):
- 5 - 95%
Operating System Installed:
- QuTS hero
Operating System Version:
- h5.0.0
Operating Temperature (t-t):
- 0 - 40 °C
Other Operating Systems Supported:
- Solaris 10, IBM AIX 7.1
Package Depth:
- 390 mm
Package Height:
- 417 mm
Package Type:
- Box
Package Weight:
- 7.89 kg
Package Width:
- 295 mm
Pci Express X16 (gen 4.x) Slots:
- 1
Power Cables Quantity:
- 1
Power Consumption (sleep):
- 39.911 W
Power Consumption (typical):
- 79.363 W
Power Supply Location:
- Built-in
Power Supply Unit (psu) Capacity:
- 250 W
Processor Boost Frequency:
- 4.4 GHz
Processor Cache:
- 18 MB
Processor Cores:
- 6
Processor Family:
- Intel® Core™ i5
Processor Frequency:
- 2.5 GHz
Processor Generation:
- 12th gen Intel® Core™ i5
Processor Manufacturer:
- Intel
Processor Model:
- i5-12400
Processor Threads:
- 12
Producator:
QNAP
Product Colour:
- Black
Quick Installation Guide:
- Yes
Raid Levels:
- 0, 1, 5, 6, 10, 50, JBOD
Raid Rebuild:
- Yes
Raid Support:
- Yes
Reset Button:
- Yes
S.m.a.r.t. Support:
- Yes
Security Algorithms:
- FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH
Share Folder:
- Thick, Thin
Share Folder Access Right Management:
- Yes
Snapshot:
- Yes
Storage Drive Capacity:
- 0 GB
Storage Drive Sizes Supported:
- 2.5,3.5,M.2
Storage Drives Installed:
- No
Storage Temperature (t-t):
- -20 - 70 °C
Storage-format:
- NAS
Storage-interface:
- RJ45+USB
Storage-type:
- HDD
Supported File Systems:
- FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Supported Network Protocols:
- IPv4, IPv6
Supported Storage Drive Interfaces:
- M.2, Serial ATA II, Serial ATA III
Supported Storage Drive Types:
- HDD & SSD
Supported-hdds:
- 6
System Log:
- Yes
Third-party Support:
- Yes
Total Installed Storage Capacity:
- 0 TB
Type:
- NAS
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 1
Usb Copy Function:
- Yes
Wake-on-lan Ready:
- Yes
Warranty Period:
- 3 year(s)
Web-based Management:
- Yes
Weight:
- 6.55 kg
Width:
- 264.3 mm
Descriere

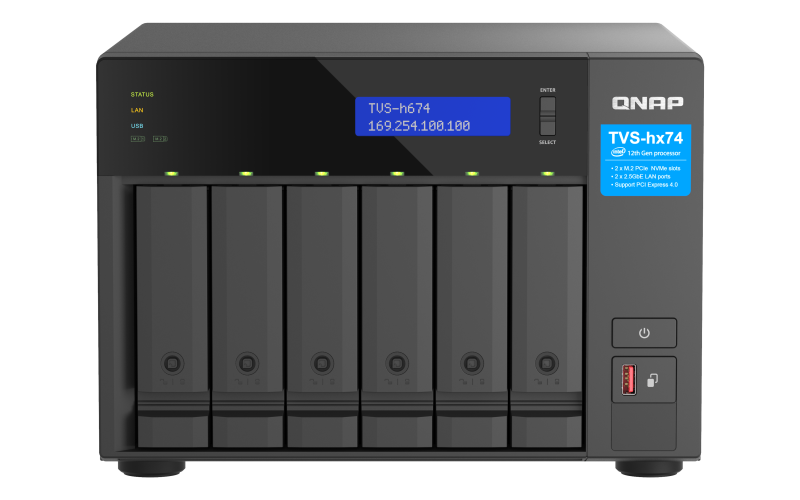

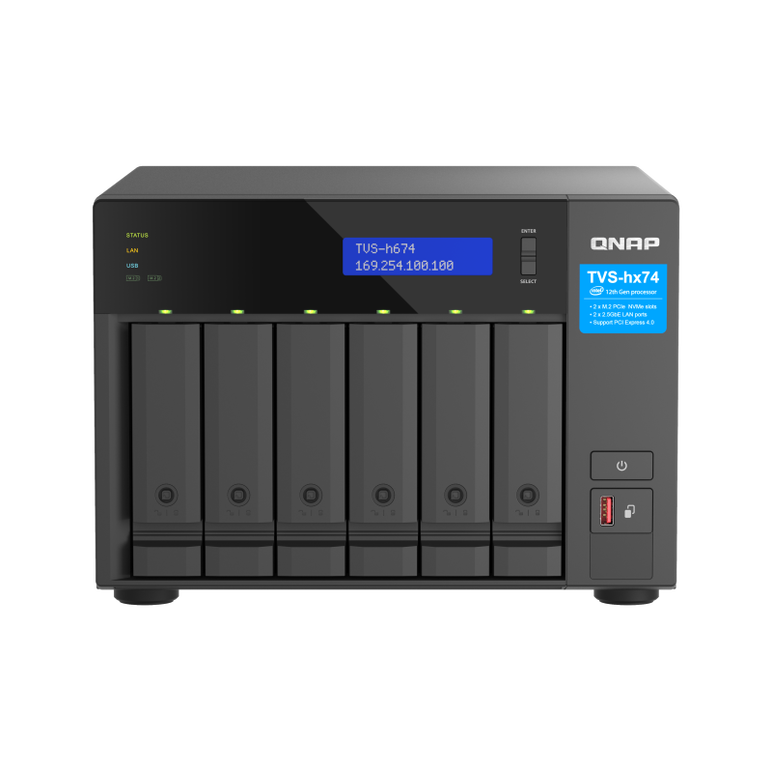

NAS QNAP H674 6-Bay, CPU Intel Core i5-12400 6-core 12-thread Processor, up to 4.4GHz, RAM 32GB (2x 16GB) DDR4 SODIMM (Max. 128GB), 6 x 2.5"/3.5" SATA 6Gbps + 2 x M.2 2280 NVMe HDD (neincluse), LAN: 2 x 2.5GbE (2.5G/1G/100M/10M), USB3.2 Gen1: 3 (2 x USB-A + 1 x USB-C), Tower, Single PSU, 250W, garantie 3 ani
