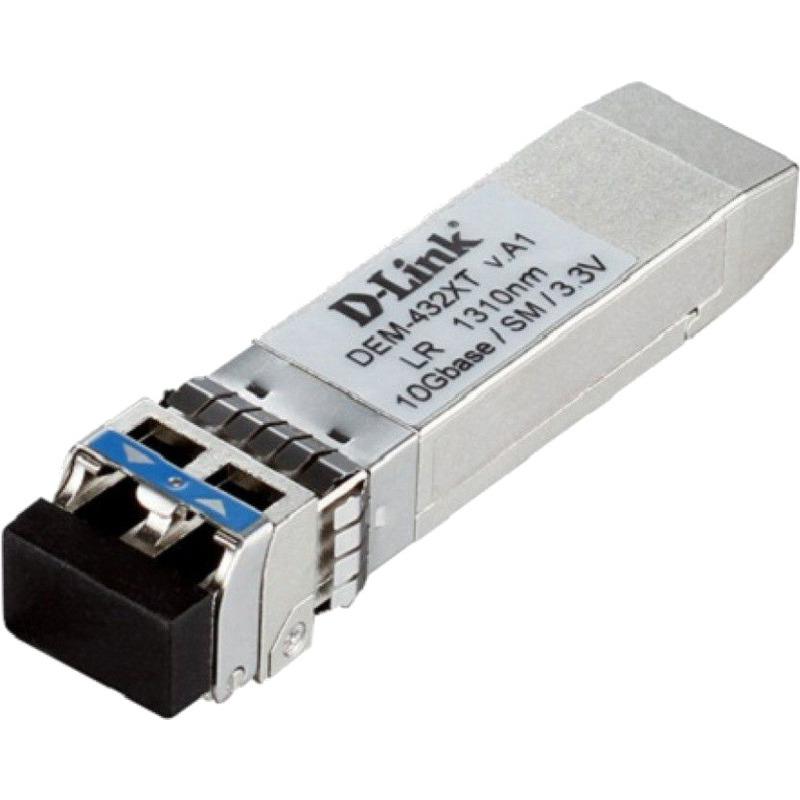

Single mode fibre transceiver d-link, dem-432xt; standard compliance: ieee-802.3ae/ 10gbase-lr; fibre channel fc-pi standard: 1200-sm-ll-l; distance capacity: 10km; speed: 10 gbps; duplex lc connector; single- direction; wavelength: 1310 nm; power/ maximu
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Certification:
- CE, FCC, VCCI, MSA
Compliance Certificates:
- RoHS
Depth:
- 118 mm
Duplex System:
- Full
Fiber Cable Diameters Supported (core/cladding):
- 9/125 µm
Fiber Ethernet Cabling Technology:
- 10GBASE
Fiber Optic Connector:
- LC
Harmonized System (hs) Code:
- 85369010
Height:
- 56.5 mm
Hot-plug Support:
- Yes
Interface Type:
- SFP
Link Budget:
- 10.1 dB
Master (outer) Cases Per Pallet (air):
- 60 pc(s)
Master (outer) Cases Per Pallet (sea):
- 60 pc(s)
Maximum Current:
- 300 A
Maximum Data Transfer Rate:
- 10000 Mbit/s
Maximum Transfer Distance:
- 10000 m
Maximum Voltage:
- 3.3 V
Mean Time Between Failures (mtbf):
- 4650000 h
Multi-mode Fiber (mmf) Supported:
- No
Networking Standards:
- IEEE 802.3ae
Operating Relative Humidity (h-h):
- 5 - 85%
Operating Temperature (t-t):
- 0 - 70 °C
Package Depth:
- 131 mm
Package Height:
- 49 mm
Package Weight:
- 64 g
Package Width:
- 74 mm
Pallet Gross Length:
- 102 cm
Pallet Gross Weight (air):
- 272 kg
Pallet Gross Weight (sea):
- 272 kg
Pallet Gross Width:
- 122 cm
Pallet Height (air):
- 199 cm
Pallet Height (sea):
- 199 cm
Producator:
D-LINK
Product Colour:
- Gold, Metallic
Products Per Pallet (air):
- 3000 pc(s)
Products Per Pallet (sea):
- 3000 pc(s)
Products Per Shipping (inner) Case:
- 50 pc(s)
Rx Power (max):
- 0.5 dBmW
Rx Power (min):
- -12.6 dBmW
Safety:
- UL, TUV, CDRH
Sfp Transceiver Standard:
- LR
Sfp Transceiver Type:
- Fiber optic
Shipping (inner) Case Gross Weight:
- 4.2 kg
Shipping (inner) Case Height:
- 31 cm
Shipping (inner) Case Length:
- 36 cm
Shipping (inner) Case Net Weight:
- 3.2 kg
Shipping (inner) Case Width:
- 26 cm
Single-mode Fiber (smf) Supported:
- Yes
Storage Relative Humidity (h-h):
- 5 - 95%
Storage Temperature (t-t):
- -40 - 85 °C
Tx Power (max):
- 0.5 dBmW
Tx Power (min):
- -8.5 dBmW
Wavelength:
- 1310 nm
Weight:
- 195 g
Width:
- 148 mm
Descriere
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;
