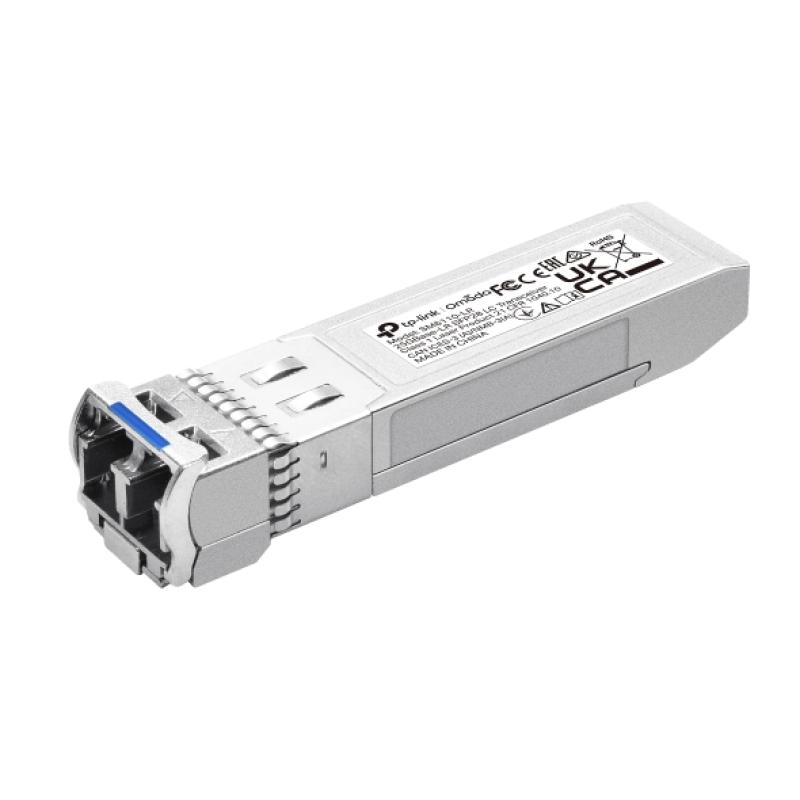

Omada 25gbase-lr sfp28 lc transceiver spec: dual rate 25.78 gbps and 10.31 gbps, 1310 nm smf (single-mode fiber), duplex lc/upc, up to 10 km distance feature: support ddm, hot swappable, low power consumption (≤ 1.2 w)
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Depth:
- 1.4 mm
Fiber Cable Diameters Supported (core/cladding):
- 9/125 µm
Height:
- 12 mm
Hot-plug Support:
- Yes
Hot-swap:
- Yes
Input Voltage:
- 3.3 V
Interface Type:
- SFP+
Maximum Data Transfer Rate:
- 25780 Mbit/s
Maximum Operating Temperature:
- 70 °C
Maximum Transfer Distance:
- 10000 m
Minimum Operating Temperature:
- 0 °C
Producator:
Tp-link
Product Colour:
- Grey
Quantity Per Pack:
- 1 pc(s)
Sfp Transceiver Type:
- Fiber optic
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 85 °C
Switch-cm-type:
- SFP
Wavelength:
- 1310 nm
Width:
- 57 mm
Descriere
Omada 25GBase-LR SFP28 LC Transceiver SPEC: Dual Rate 25.78 Gbps and 10.31 Gbps, 1310 nm SMF (Single-mode fiber), Duplex LC/UPC, Up to 10 km Distance FEATURE: Support DDM, Hot Swappable, Low Power Consumption (≤ 1.2 W)
