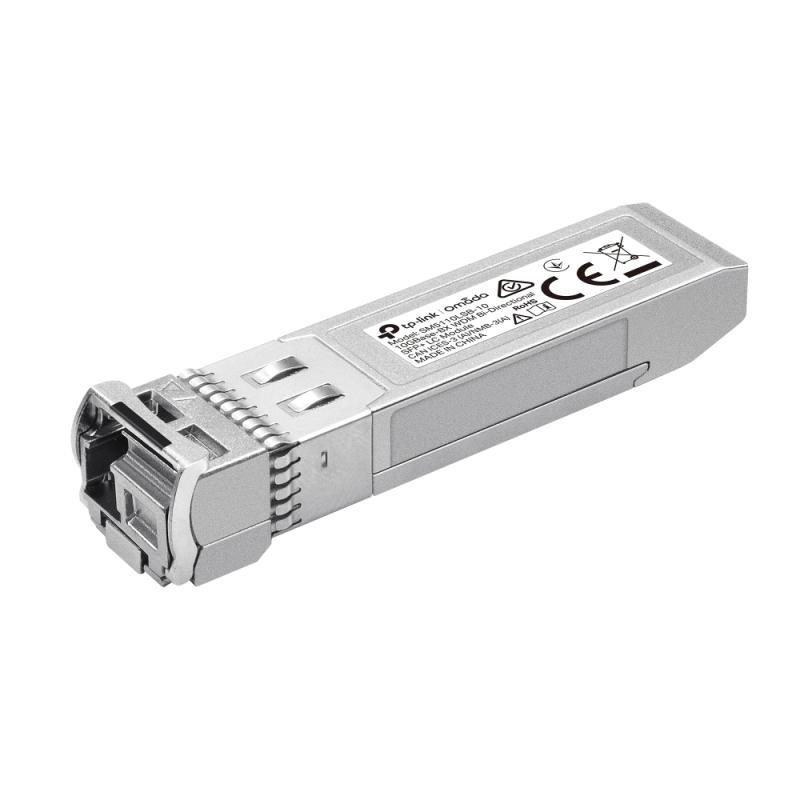

Omada 10gbase-bx single-mode wdm bi-directional sfp+ module spec: lc/upc connector, tx:1270nm/rx:1330nm, single-mode, 10km
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Compliance Certificates:
- CE, Federal Communications Commission (FCC), RoHS
Depth:
- 1.4 mm
Digital Diagnostics Monitoring (ddm):
- Yes
Fiber Cable Diameters Supported (core/cladding):
- 9/125 µm
Fiber Optic Connector:
- LC (UPC)
Height:
- 12 mm
Hot-swap:
- Yes
Input Voltage:
- 3.3 V
Interface Type:
- SFP+
Manual:
- Yes
Maximum Data Transfer Rate:
- 10312 Mbit/s
Maximum Operating Temperature:
- 70 °C
Maximum Transfer Distance:
- 10000 m
Minimum Operating Temperature:
- 0 °C
Networking Standards:
- IEEE 802.3ae
Operating Relative Humidity (h-h):
- 10 - 90%
Operating Temperature (t-t):
- 0 - 70 °C
Producator:
Tp-link
Product Colour:
- Silver
Quantity Per Pack:
- 1 pc(s)
Rx Wavelength (max):
- 1330 nm
Sfp Transceiver Type:
- Fiber optic
Single-mode Fiber (smf) Supported:
- Yes
Storage Relative Humidity (h-h):
- 5 - 90%
Storage Temperature (t-t):
- -40 - 85 °C
Switch-cm-type:
- SFP
Tx Wavelength (max):
- 1270 nm
Width:
- 57 mm
Descriere
Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1270nm/RX:1330nm, Single-mode, 10km
