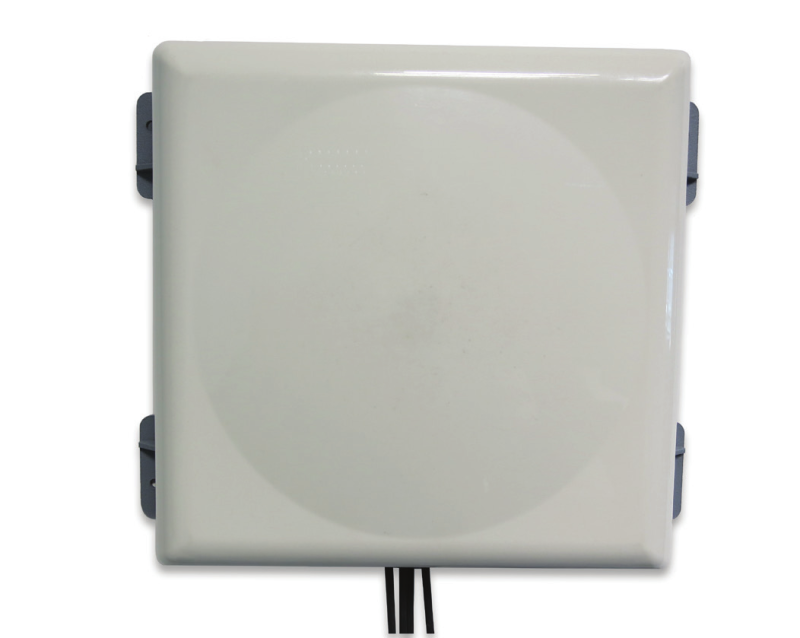

Ap-ant-48 2.4/5g 8.5dbi 4x4 panel
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Antenna Connector Type:
- RP-SMA
Antenna Gain (2.4 Ghz):
- 8.5 dBi
Antenna Gain (5 Ghz):
- 8.5 dBi
Antenna Gain Level (max):
- 8.5 dBi
Antenna Type:
- Sector antenna
Cable Length:
- 0.3 m
Connector Gender:
- Male
Depth:
- 190 mm
Frequency Band:
- 2.4-2.5/4.9-6.0 GHz
Harmonized System (hs) Code:
- 85177100
Height:
- 44 mm
Horizontal Beam Width (2.4 Ghz):
- 70°
Horizontal Beam Width (5 Ghz):
- 56°
Housing Material:
- Aluminium, Plastic
Impedance:
- 50 Ω
Mounting:
- Wall
Operating Temperature (t-t):
- -45 - 65 °C
Power Consumption (max):
- 6 W
Producator:
ARUBA NETWORKS
Vertical Beam Width (2.4 Ghz):
- 70°
Vertical Beam Width (5 Ghz):
- 56°
Voltage Standing Wave Ratio (vswr):
- 2:1
Weight:
- 700 g
Width:
- 190 mm
Descriere
AP-ANT-48 2.4/5G 8.5dBi 4x4 Panel
