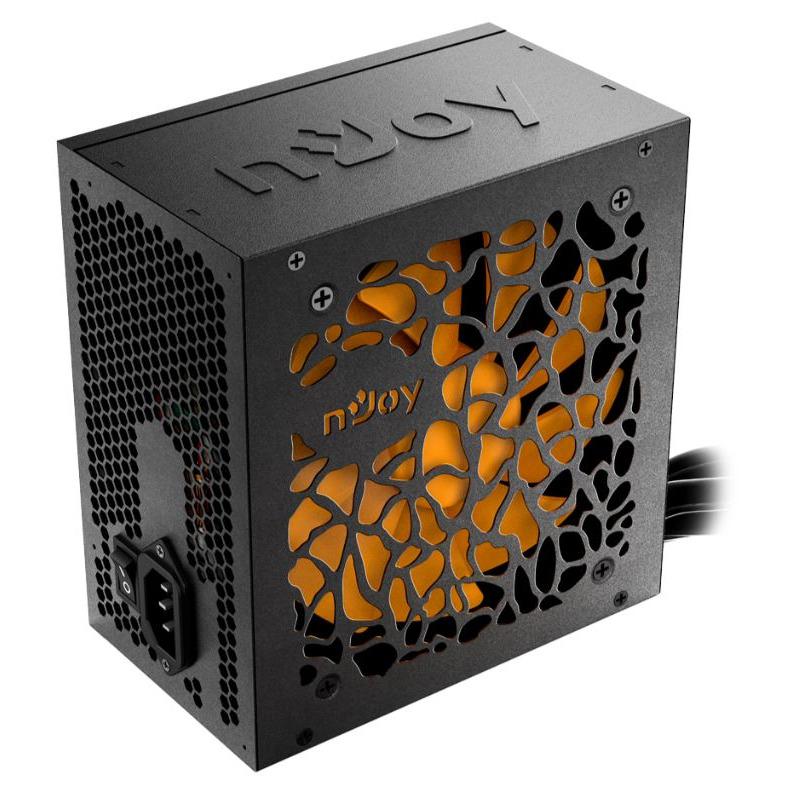

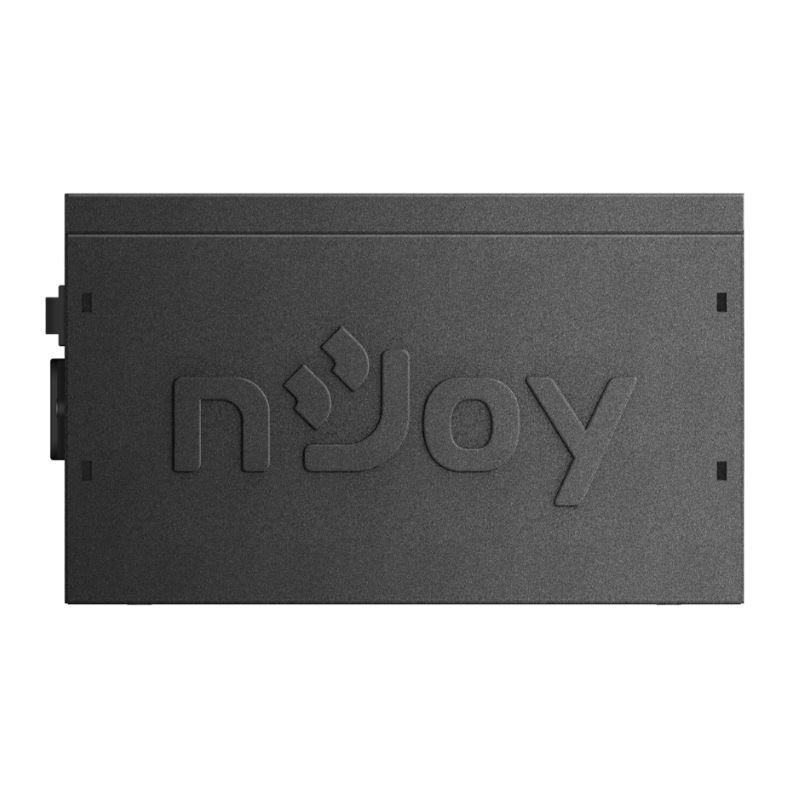

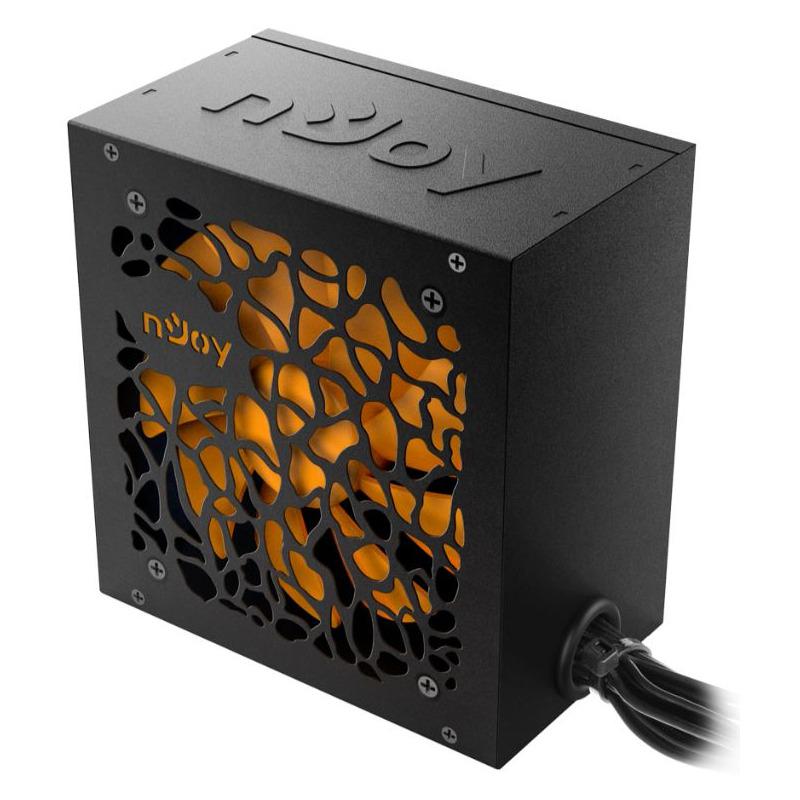

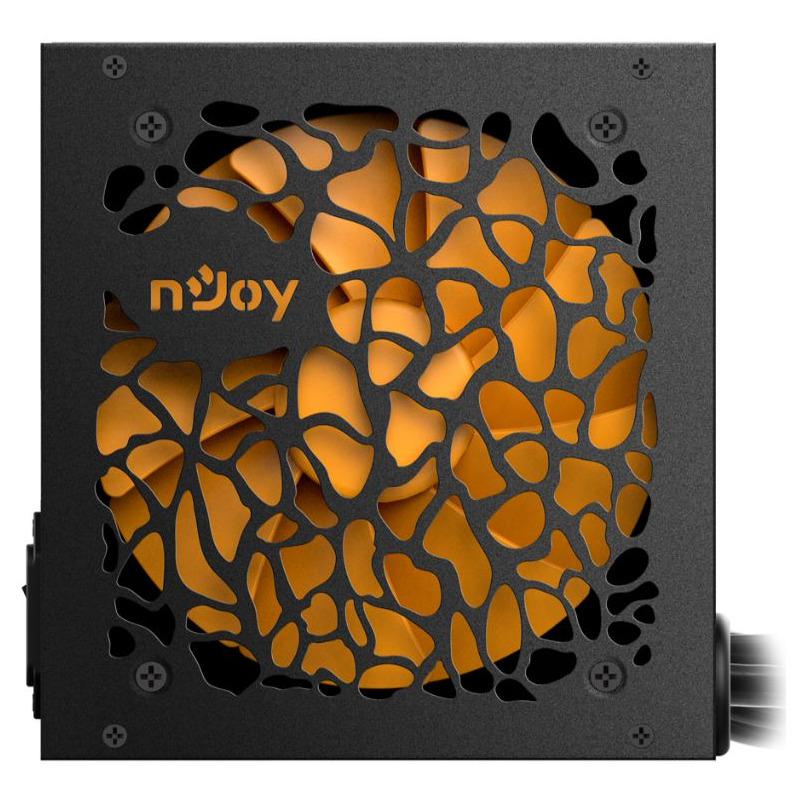

Sursa njoy titan+ 550w 80+ bronze
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Bronze
Ac Input Frequency:
- 47 - 63 Hz
Ac Input Voltage:
- 230 V
Atx Version:
- 2.53
Bearing Technology:
- Hydraulic
Cables Included:
- AC
Combined Power (+12v):
- 540 W
Combined Power (+3.3v):
- 90 W
Combined Power (+5v):
- 90 W
Combined Power (+5vsb):
- 12.5 W
Combined Power (-12v):
- 3.6 W
Continuous Output Rated Temperature:
- 105 °C
Depth:
- 140 mm
Efficiency:
- 88%
Fan Diameter:
- 12 cm
Height:
- 86 mm
Master (outer) Case Gross Weight:
- 17.4 kg
Master (outer) Case Height:
- 265 mm
Master (outer) Case Length:
- 525 mm
Master (outer) Case Net Weight:
- 16.5 kg
Master (outer) Case Width:
- 375 mm
Max Output Current (+12v):
- 45 A
Max Output Current (+3.3v):
- 15 A
Max Output Current (+5v):
- 15 A
Max Output Current (+5vsb):
- 2.5 A
Max Output Current (-12v):
- 0.3 A
Motherboard Power Cable Length:
- 50 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of +12v Rail(s):
- 1
Number Of Eps Connectors:
- 1
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 6
On/off Switch:
- Yes
Package Depth:
- 100 mm
Package Height:
- 180 mm
Package Weight:
- 1.65 kg
Package Width:
- 240 mm
Parallel Processing Technology Support:
- CrossFireX, SLI
Pci Express Power Cable Length:
- 65 cm
Pci Express Power Connectors (6+2 Pin):
- 2
Peripheral (molex) Power Cable Length:
- 600 mm
Peripheral (molex) Power Connectors (4-pin):
- 4
Power Factor Correction (pfc) Type:
- Active
Power Plug Type:
- Type F
Power Protection Features:
- Over current, Over power, Over voltage, Short circuit
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
NJOY
Product Colour:
- Black, Orange
Products Per Master (outer) Case:
- 10 pc(s)
Purpose:
- PC
Sata Power Cable Length:
- 400,530,790,920,660 mm
Supported Motherboard Form Factors:
- ATX
Total Power:
- 550 W
Weight:
- 1.45 kg
Width:
- 150 mm
Descriere
Sursa NJOY TITAN+ 550W 80+ BRONZE, ATX, Active PFC, Protectie OVP / OCP / SCP / OPP, negru
Recenzii
Nu au fost găsite recenzii
