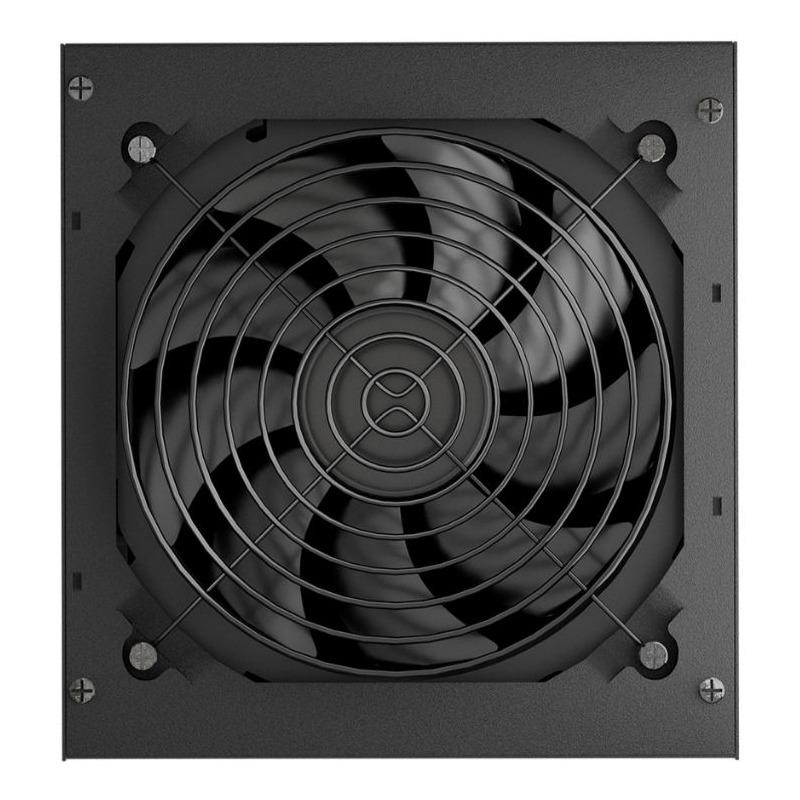

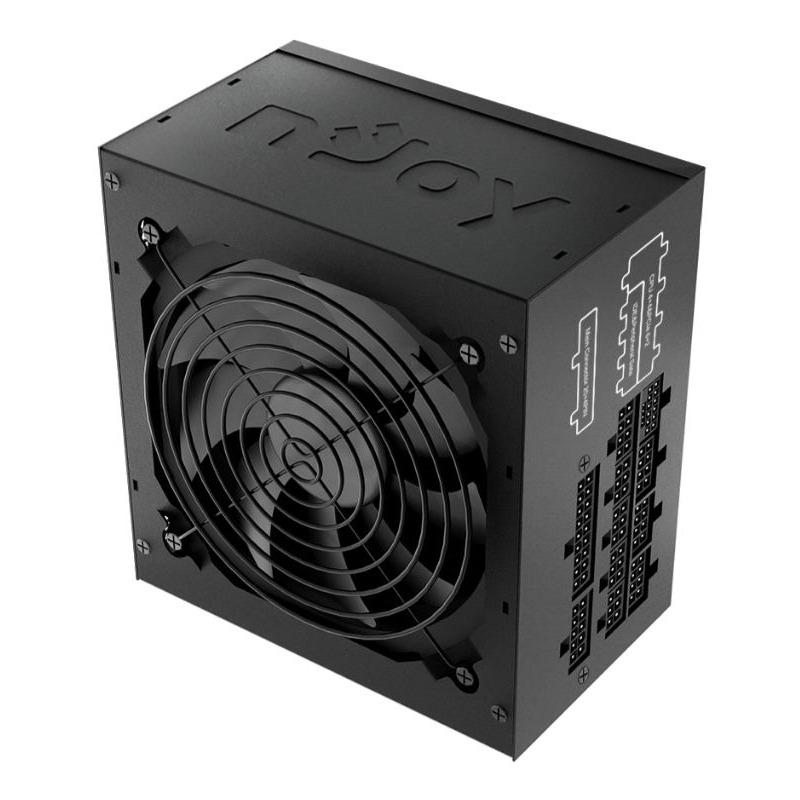

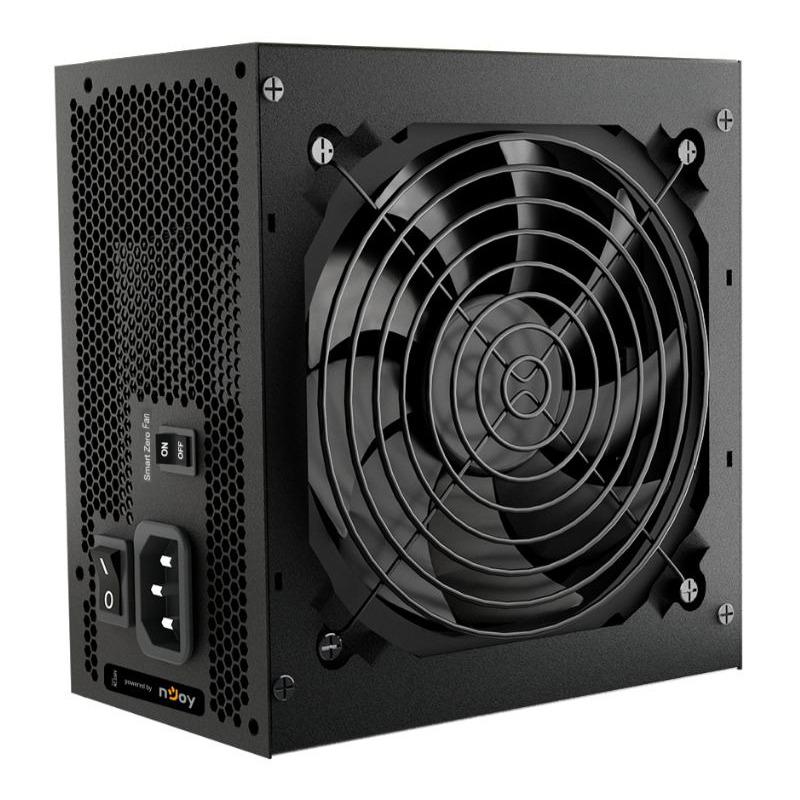

Sursa njoy alpha+ 1000w 80+ gold
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Version:
- 2.52
Bearing Technology:
- Hydraulic
Cables Included:
- AC, PATA, PCIe, SATA
Cabling Type:
- Fully-Modular
Certification:
- CE, RoHS
Combined Power (+12v):
- 999.6 W
Combined Power (+3.3v):
- 100 W
Combined Power (+5v):
- 100 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Cpu Power Cable Length:
- 55 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 160 mm
Efficiency:
- 89%
Fan Diameter:
- 12 cm
Fan Location:
- Top
Height:
- 86 mm
Master (outer) Case Gross Weight:
- 23.6 kg
Master (outer) Case Height:
- 275 mm
Master (outer) Case Length:
- 450 mm
Master (outer) Case Net Weight:
- 22.1 kg
Master (outer) Case Width:
- 590 mm
Max Output Current (+12v):
- 83.3 A
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Motherboard Power Cable Length:
- 60 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Pata Power Connectors:
- 9
Package Depth:
- 280 mm
Package Height:
- 125 mm
Package Weight:
- 2.76 kg
Package Width:
- 215 mm
Pci Express Power Cable Length:
- 60 cm
Pci Express Power Connectors (12-pin):
- 1
Pci Express Power Connectors (6+2 Pin):
- 6
Peripheral (molex) Power Cable Length:
- 150,450 mm
Peripheral (molex) Power Connectors (4-pin):
- 3
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
NJOY
Products Per Master (outer) Case:
- 8 pc(s)
Purpose:
- PC
Sata Power Cable Length:
- 150,450 mm
Total Power:
- 1000 W
Weight:
- 2.75 kg
Width:
- 150 mm
Descriere
Sursa NJOY ALPHA+ 1000W 80+ GOLD, ATX, Active PFC, Modulara, Protectie OVP / OCP / OTP / UVP / SCP / OPP, Tehnologie Zero Fan, negru
