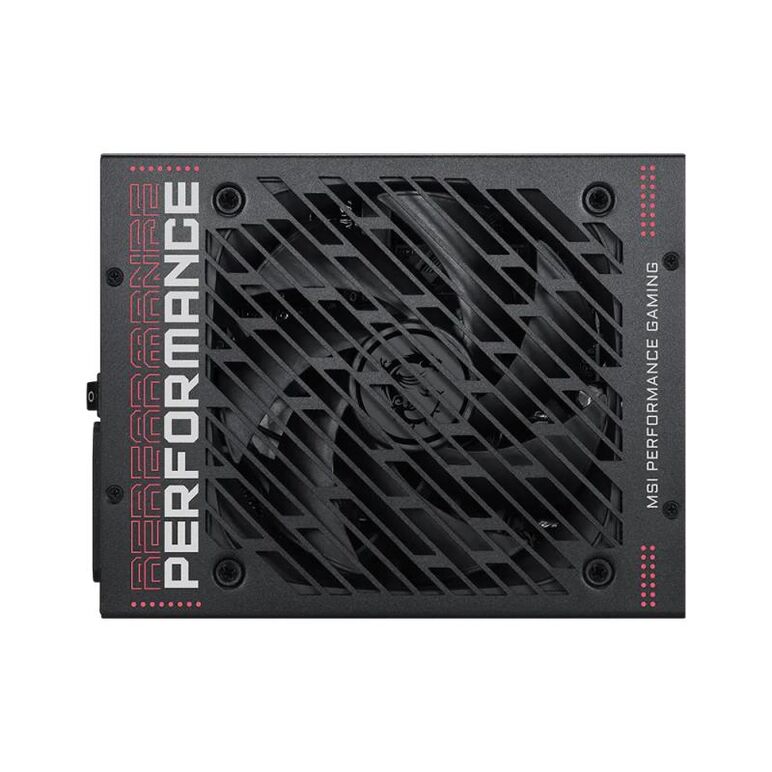

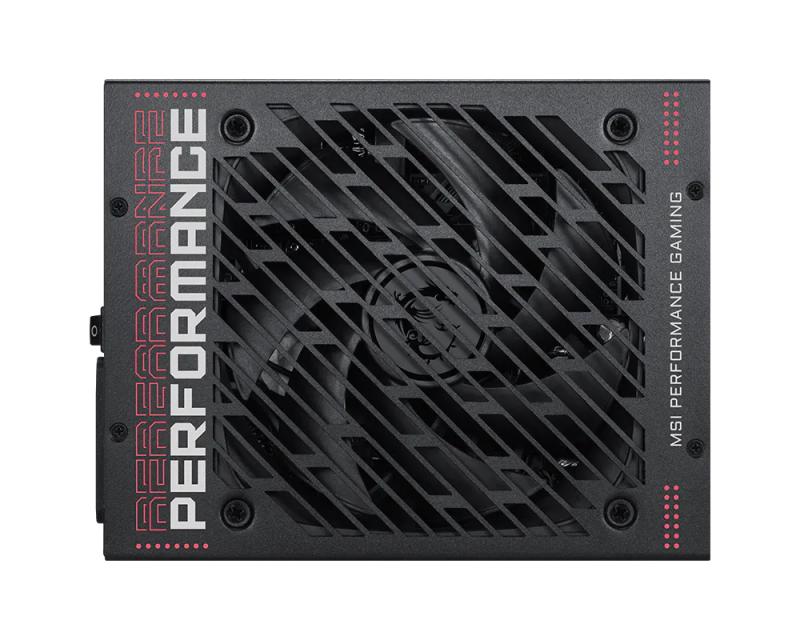

Sursa msi mpg ai1300ts pcie5, 80+ titanium, 1300w
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Titanium
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (24-pin):
- Yes
Atx Version:
- 3.1
Cabling Type:
- Fully-Modular
Combined Power (+12v):
- 1299.96 W
Combined Power (+3.3v):
- 120 W
Combined Power (+5v):
- 120 W
Combined Power (+5vsb):
- 15 W
Cooling Type:
- Active
Country Of Origin:
- China
Depth:
- 150 mm
Eps Power Connector (4+4 Pin):
- Yes
Eps Power Connector (8-pin):
- Yes
Fan Diameter:
- 13.5 cm
Floppy Disk Drive Connector:
- Yes
Height:
- 86 mm
Illumination:
- No
Max Output Current (+12v):
- 108.33 A
Max Output Current (+3.3v):
- 22 A
Max Output Current (+5v):
- 22 A
Max Output Current (+5vsb):
- 3 A
Maximum Input Current (@110v):
- 15 A
Maximum Input Current (@220v):
- 10 A
Motherboard Power Cable Length:
- 60 cm
Motherboard Power Connector:
- 24-pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 8
On/off Switch:
- Yes
Pci Express Power Connectors (12+4 Pin):
- 0
Pci Express Power Connectors (12-pin):
- 0
Pci Express Power Connectors (6+2 Pin):
- 8
Pci Express Power Connectors (6-pin):
- 0
Pci Express Power Connectors (8-pin):
- 0
Peripheral (molex) Power Connectors (4-pin):
- 4
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
MSI
Product Colour:
- Black
Purpose:
- PC
Total Power:
- 1300 W
Width:
- 190 mm
Descriere
MSI MPG AI1300TS PCIE5 power supply
