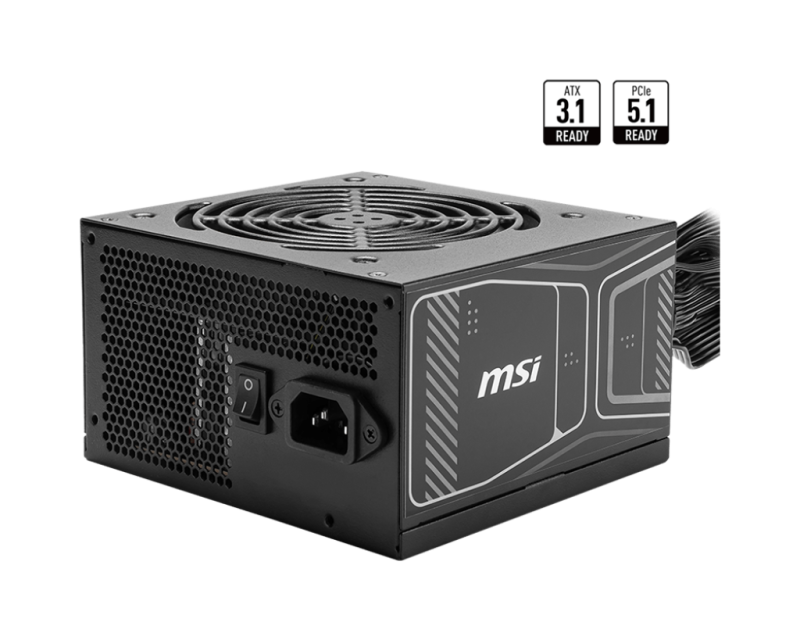

Sursa msi mag a750gn pcie5 750w 80 plus gold, active pfc, non modulara, protectii ocp / ovp / opp / otp / scp
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 47 - 63 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- No
Atx Power Connector (24-pin):
- No
Atx Version:
- 3.1
Bearing Technology:
- Sleeve
Cabling Type:
- Non-Modular
Combined Power (+12v):
- 3.6 W
Combined Power (+3.3v):
- 110 W
Combined Power (+5v):
- 110 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Cooling Type:
- Active
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 140 mm
Efficiency:
- 90%
Eps Power Connector (4+4 Pin):
- Yes
Eps Power Connector (8-pin):
- No
Fan Diameter:
- 12 cm
Height:
- 86 mm
Illumination:
- No
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Maximum Input Current (@110v):
- 4.7 A
Maximum Input Current (@220v):
- 63 A
Modular:
- No
Motherboard Power Cable Length:
- 55 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of +12v Rail(s):
- 1
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 4
On/off Switch:
- Yes
Package Type:
- Box
Pci Express Power Connectors (12+4 Pin):
- 0
Pci Express Power Connectors (12-pin):
- 0
Pci Express Power Connectors (6+2 Pin):
- 2
Pci Express Power Connectors (6-pin):
- 0
Pci Express Power Connectors (8-pin):
- 0
Peripheral (molex) Power Cable Length:
- 500 mm
Peripheral (molex) Power Connectors (4-pin):
- 4
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Overheating, Short circuit
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
MSI
Product Colour:
- Black
Psu-power:
- 501W-750W
Purpose:
- PC
Sata Power Cable Length:
- 150,450 mm
Total Power:
- 750 W
Width:
- 150 mm
Descriere
Sursa MSI MAG A750GN PCIE5 750W 80 PLUS GOLD, Active PFC, non modulara, Protectii OCP / OVP / OPP / OTP / SCP
