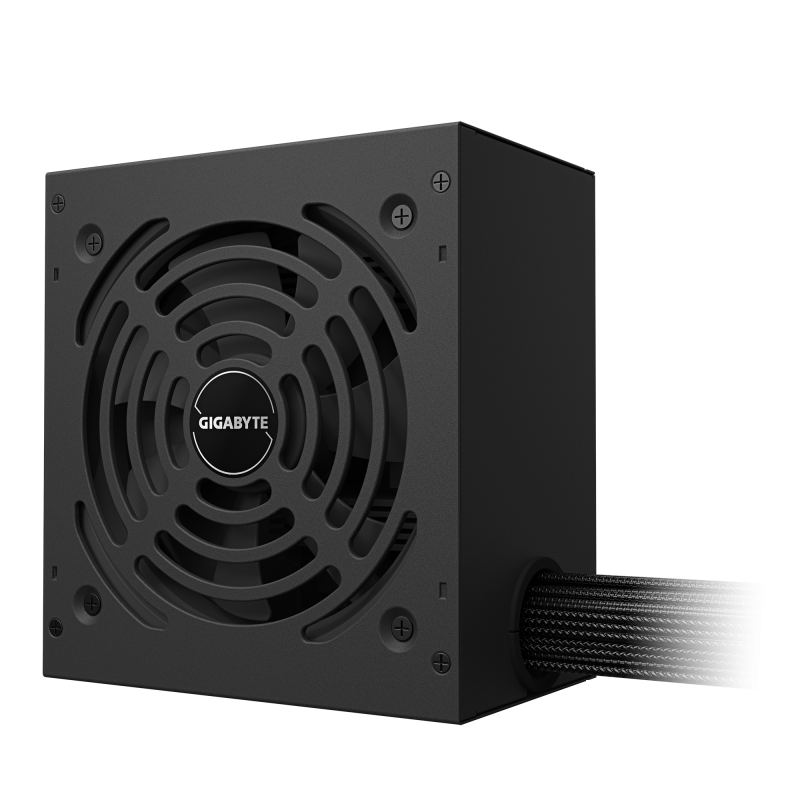

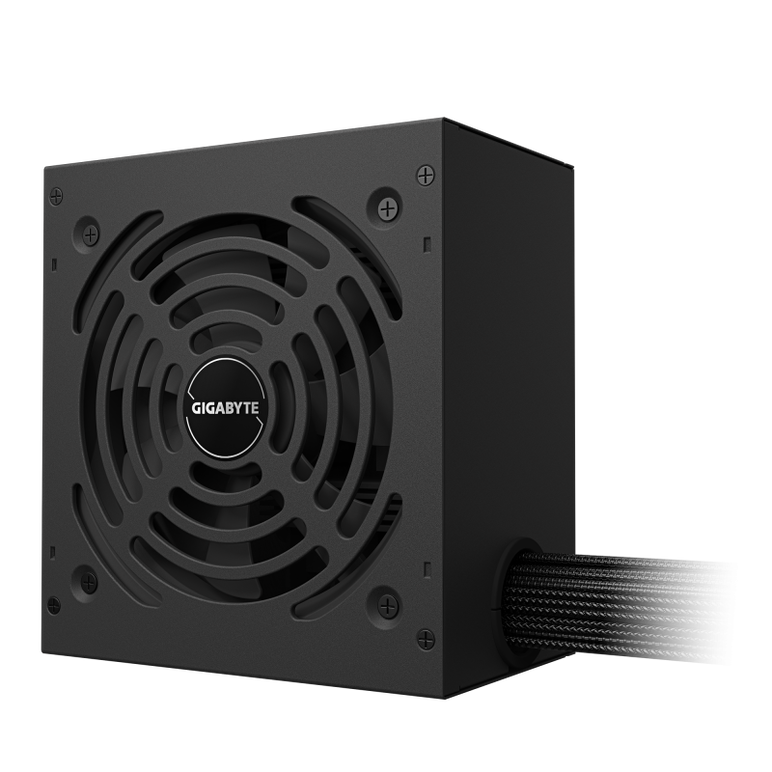

Sursa gigabyte p650g pcie 5.1, 80+ gold, 650w
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- Yes
Atx Version:
- 3.1
Bearing Technology:
- HYB
Cabling Type:
- Non-Modular
Combined Power (+12v):
- 650 W
Combined Power (+3.3v):
- 90 W
Combined Power (+5v):
- 650 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Cooling Type:
- Active
Cpu P4 Connector (4-pin):
- 1
Cpu Power Cable Length:
- 60 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 150 mm
Fan Diameter:
- 12 cm
Fan Location:
- Top
Floppy Disk Drive Connector:
- Yes
Height:
- 86 mm
Input Current:
- 10 - 6 A
Max Output Current (+12v):
- 54.2 A
Max Output Current (+3.3v):
- 18 A
Max Output Current (+5v):
- 18 A
Max Output Current (+5vsb):
- 18 A
Max Output Current (-12v):
- 0.3 A
Maximum Input Current (@110v):
- 10 A
Maximum Input Current (@220v):
- 6 A
Mean Time Between Failures (mtbf):
- 100000 h
Motherboard Power Cable Length:
- 60 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 6
On/off Switch:
- Yes
Package Depth:
- 110 mm
Package Height:
- 180 mm
Package Type:
- Box
Package Weight:
- 1.92 kg
Package Width:
- 260 mm
Pci Express Power Cable Length:
- 50 cm
Pci Express Power Connectors (6+2 Pin):
- 2
Peripheral (molex) Power Cable Length:
- 150 mm
Peripheral (molex) Power Connectors (4-pin):
- 3
Power Factor Correction (pfc) Type:
- Active
Power Good Signal Delay Range:
- 100 - 150 ms
Power Protection Features:
- Over power, Overcharge, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
GIGABYTE
Product Colour:
- Black
Purpose:
- PC
Sata Power Cable Length:
- 120,500 mm
Total Power:
- 650 W
Warranty Period:
- 5 year(s)
Weight:
- 1.76 kg
Width:
- 140 mm
Descriere
GIGABYTE P650G PCIE 5.1. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
