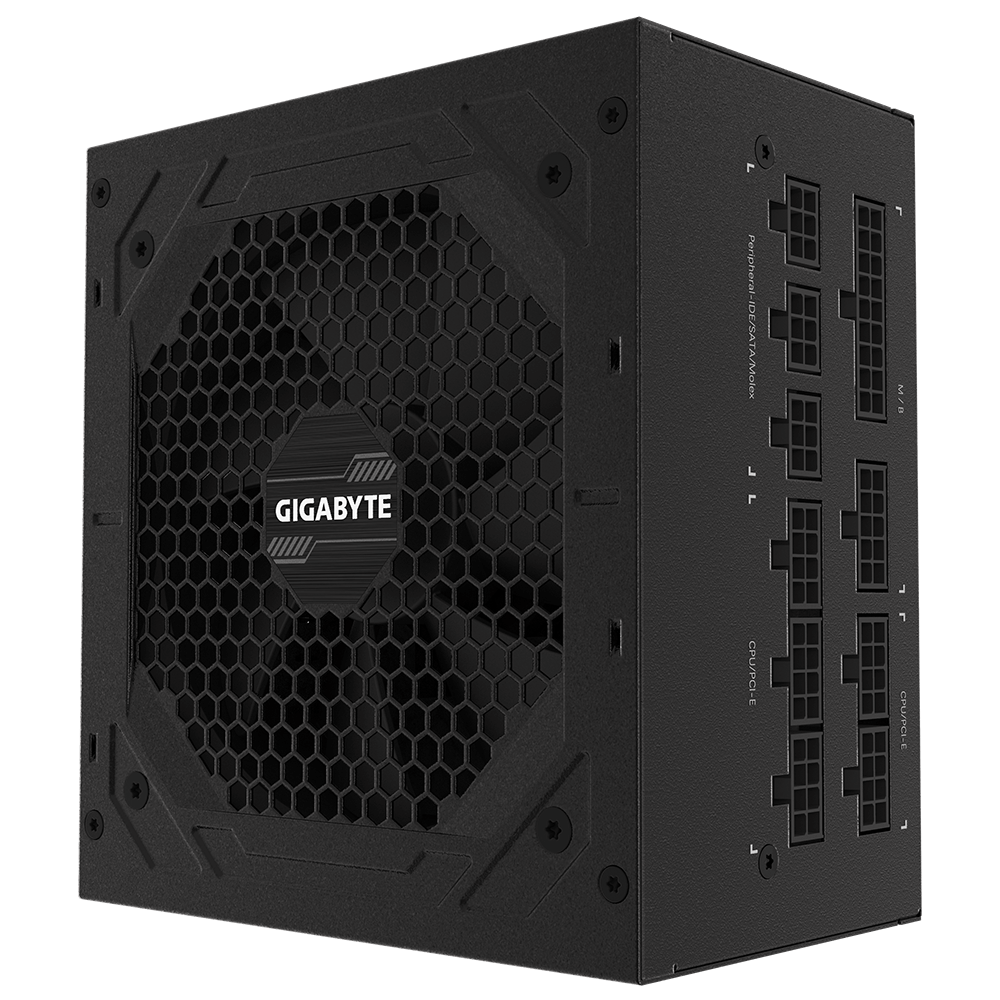

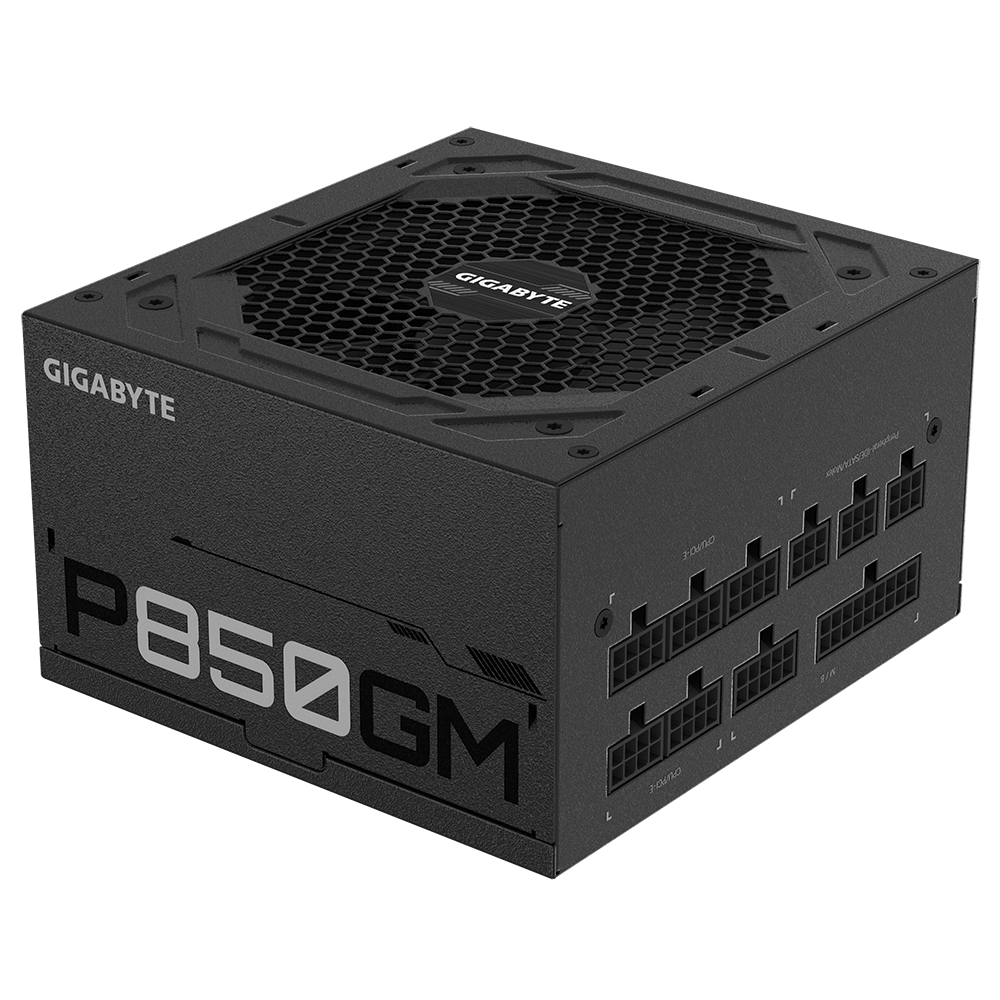

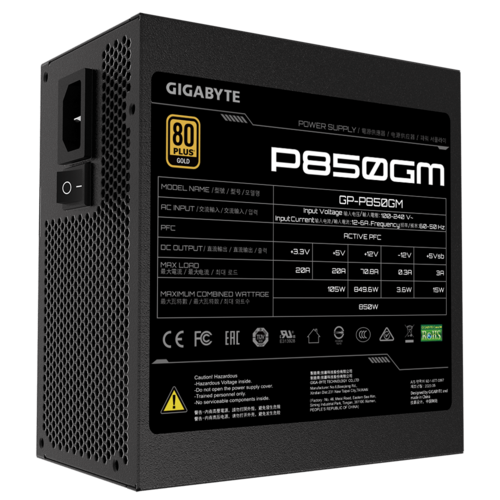

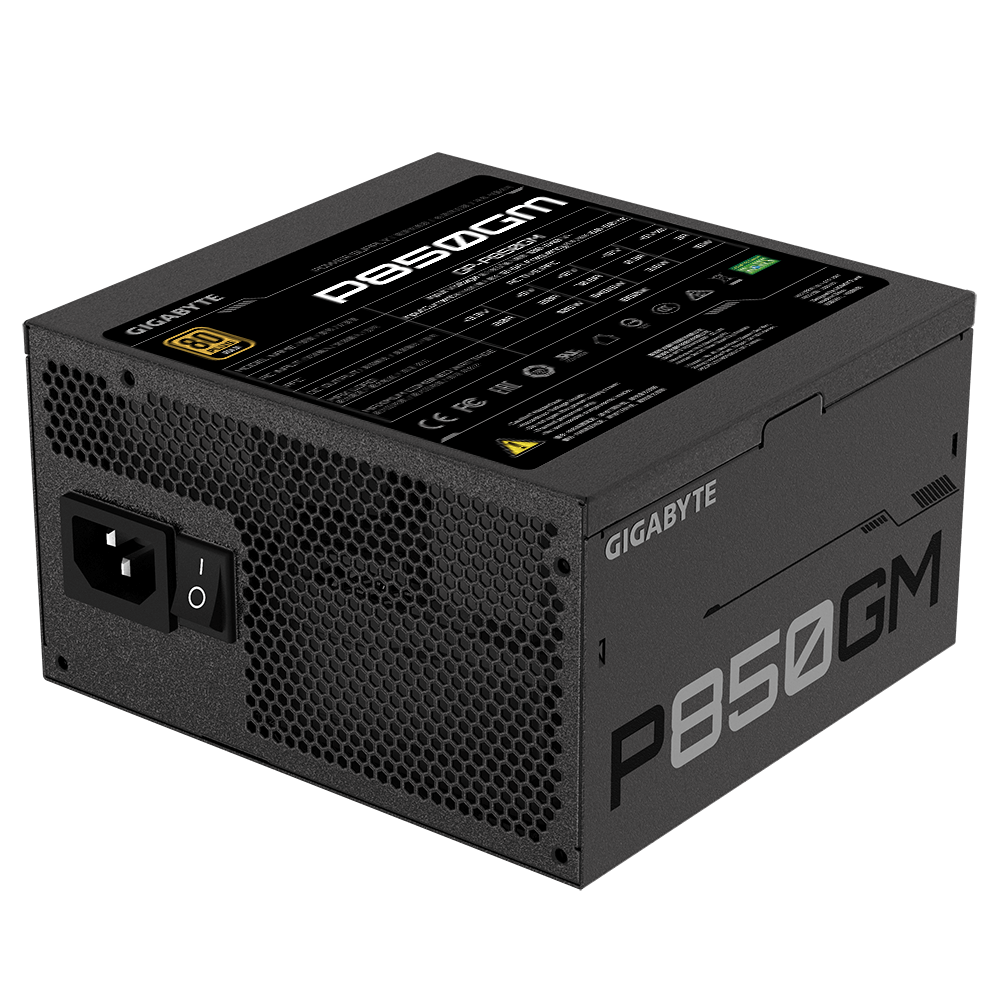

Sursa gb p850gm 850w 80 plus gold
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50 - 60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- Yes
Atx Version:
- 2.31
Cabling Type:
- Fully-Modular
Combined Power (+12v):
- 846 W
Combined Power (+3.3v):
- 120 W
Combined Power (+5v):
- 120 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Cooling Type:
- Active
Cpu Power Cable Length:
- 60 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 140 mm
Efficiency:
- 80Plus-Gold
Fan Diameter:
- 12 cm
Fan Location:
- Top
Floppy Disk Drive Cable Length:
- 89 cm
Floppy Disk Drive Connector:
- Yes
Floppy Drive Power Connector:
- 2
Harmonized System (hs) Code:
- 84733020
Height:
- 86 mm
Hold Time:
- 16 ms
Max Output Current (+12v):
- 70.5 A
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Maximum Input Current (@110v):
- 12 A
Maximum Input Current (@220v):
- 6 A
Mean Time Between Failures (mtbf):
- 100000 h
Modular:
- Yes
Motherboard Power Cable Length:
- 61 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 8
On/off Switch:
- Yes
Package Type:
- Box
Pci Express Power Cable Length:
- 75 cm
Pci Express Power Connectors (6+2 Pin):
- 4
Peripheral (molex) Power Connectors (4-pin):
- 3
Power Factor:
- 0.9
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
GIGABYTE
Product Colour:
- Black
Purpose:
- PC
Sata Power Cable Length:
- 600,750,900 mm
Total Power:
- 850 W
Width:
- 150 mm
Descriere
SURSA GB P850GM 850W 80 PLUS GOLD, Fully Modular Design, 80 PLUS Gold certified: above 90% efficiency at 50% load, ATX Form, Active PFC, ATX/MB 20+4 Pin x 1 : 650mm, CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1, PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2, SATA x6 + 4 Pin Peripheral x2 :, 550mm+100mm+100mm+100mm*1, 450mm+100mm+100mm+100mm *1, 4 Pin Peripheral x 3 +, 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1, 4 Pin Floppy x 1 : 100mm.
