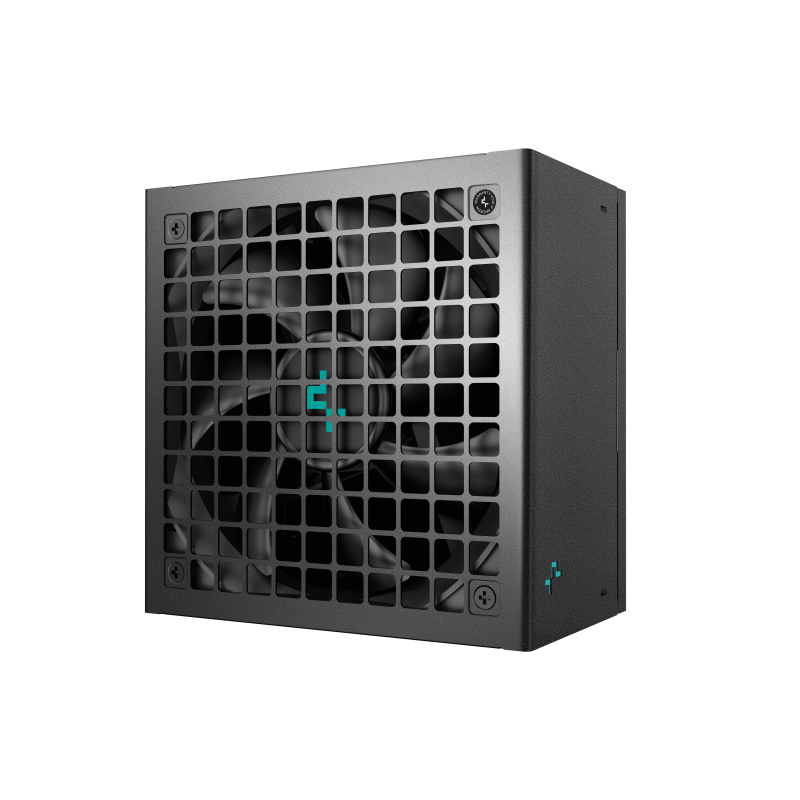

Sursa deepcool pn1000m 1000w 80 plus gold, active pfc+ full bridge src llc+ dc to dc, eficienta 90% sub incarcare tipica, protectie opp/ovp/scp/otp/ocp/uvp/sip/nlo
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- Yes
Atx Version:
- 3.1
Bearing Technology:
- FDB
Cabling Type:
- Fully-Modular
Certificare 80 Plus:
- 80 PLUS Gold
Certification:
- CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Compliance Certificates:
- RoHS, WEEE
Conectivitate:
- Full - Modular
Cooling Type:
- Active
Cpu Power Cable Length:
- 70 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 150 mm
Efficiency:
- 80Plus-Gold
Fan Diameter:
- 13.5 cm
Fan Location:
- Top
Height:
- 86 mm
Hold Time:
- 16 ms
Iluminare Rgb:
- Nu
Mean Time Between Failures (mtbf):
- 100000 h
Modular:
- Yes
Motherboard Power Cable Length:
- 55 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 8
On/off Switch:
- Yes
Operating Temperature (t-t):
- 0 - 40 °C
Pci Express Power Connectors (16-pin):
- 1
Pci Express Power Connectors (6+2 Pin):
- 3
Peripheral (molex) Power Cable Length:
- 930 mm
Peripheral (molex) Power Connectors (4-pin):
- 2
Pfc:
- Active
Power Factor Correction (pfc) Type:
- Active
Power Good Signal Delay Range:
- 100 - 150 ms
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
DEEPCOOL
Product Colour:
- Black
Psu Power:
- 1000 W
Psu Type:
- ATX
Purpose:
- PC
Sata Power Cable Length:
- 450,570,690,810 mm
Sustainability Certificates:
- ErP, Triman
Total Power:
- 1000 W
Width:
- 150 mm
Descriere
Sursa DEEPCOOL PN1000M 1000W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
