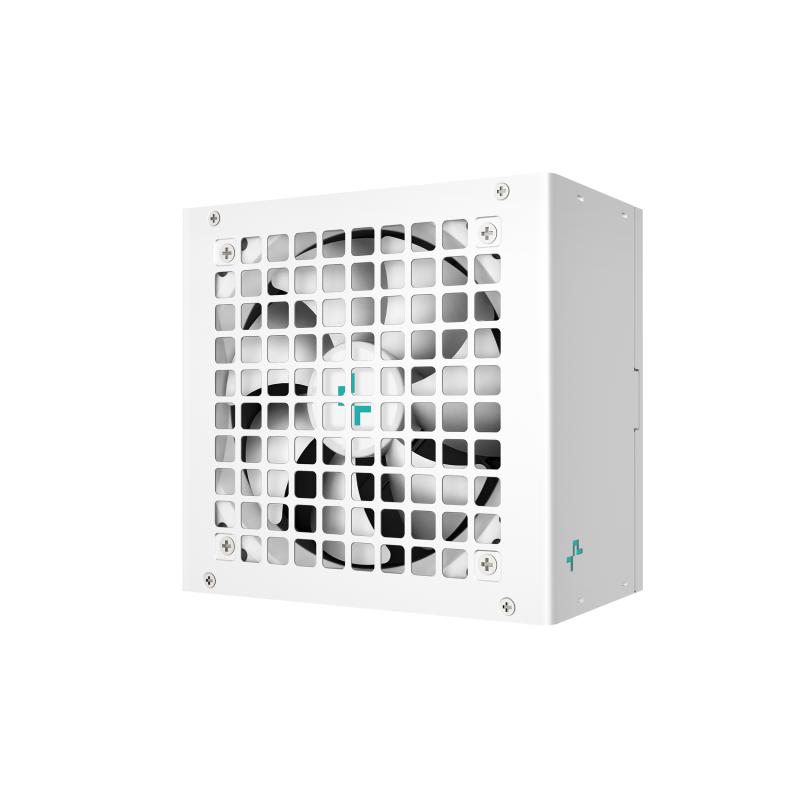

Sursa deepcool pl750d v2 750w 80 plus bronze, active pfc+dc to dc, eficienta 85% sub incarcare tipica, protectie opp/ovp/scp/otp/ocp/uvp/sip/nlo, alb
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Bronze
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- Yes
Atx Version:
- 3.1
Bearing Technology:
- HYB
Cabling Type:
- Non-Modular
Certification:
- CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Combined Power (+12v):
- 3.6 W
Combined Power (+3.3v):
- 100 W
Combined Power (+5v):
- 100 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Compliance Certificates:
- RoHS, WEEE
Cooling Type:
- Active
Country Of Origin:
- China
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 140 mm
Efficiency:
- 80Plus-Bronze
Fan Diameter:
- 12 cm
Fan Location:
- Top
Height:
- 86 mm
Hold Time:
- 16 ms
Input Current:
- 10 / 5 A
Max Output Current (+12v):
- 0.3 A
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Mean Time Between Failures (mtbf):
- 100000 h
Modular:
- No
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 7
On/off Switch:
- Yes
Operating Temperature (t-t):
- 0 - 40 °C
Package Type:
- Box
Pci Express Power Connectors (16-pin):
- 1
Pci Express Power Connectors (6+2 Pin):
- 3
Peripheral (molex) Power Connectors (4-pin):
- 2
Power Factor Correction (pfc) Type:
- Active
Power Good Signal Delay Range:
- 100 - 150 ms
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
DEEPCOOL
Product Colour:
- White
Purpose:
- PC
Sustainability Certificates:
- ErP, Triman
Sustainability Compliance:
- Yes
Total Power:
- 750 W
Width:
- 150 mm
Descriere
Sursa DEEPCOOL PL750D V2 750W 80 PLUS Bronze, Active PFC+DC to DC, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO, alb
