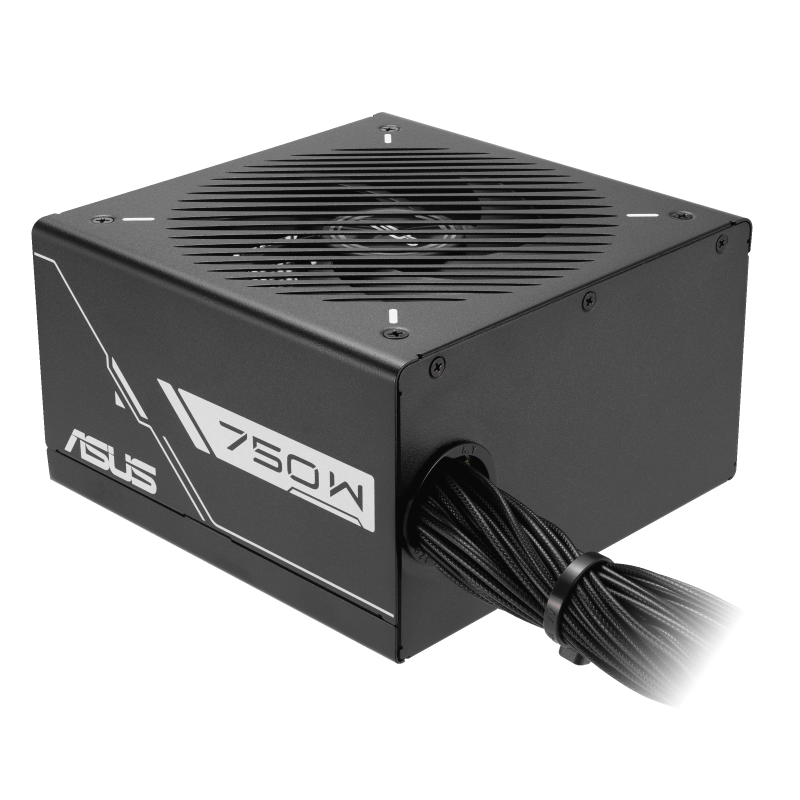

Sursa asus prime 750w 80 plus bronze, active pfc, atx12v, protectii opp/ovp/uvp/scp/ocp/otp
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Bronze
Ac Input Voltage:
- 100 - 240 V
Bearing Technology:
- Ball bearing
Cabling Type:
- Non-Modular
Combined Power (+12v):
- 3.6 W
Combined Power (+3.3v):
- 120 W
Combined Power (+5v):
- 120 W
Combined Power (+5vsb):
- 12.5 W
Combined Power (-12v):
- 3.6 W
Cooling Type:
- Active
Cpu Power Cable Length:
- 80 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 150 mm
Efficiency:
- 80Plus-Bronze
Fan Diameter:
- 13.5 cm
Fan Location:
- Top
Height:
- 86 mm
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 2.5 A
Max Output Current (-12v):
- 0.3 A
Mean Time Between Failures (mtbf):
- 120000 h
Modular:
- Yes
Motherboard Power Cable Length:
- 60 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 6
On/off Switch:
- Yes
Package Depth:
- 196 mm
Package Height:
- 115 mm
Package Type:
- Box
Package Weight:
- 3 kg
Package Width:
- 340 mm
Pci Express Power Connectors (8-pin):
- 3
Peripheral (molex) Power Cable Length:
- 120,400 mm
Peripheral (molex) Power Connectors (4-pin):
- 3
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
Asus
Product Colour:
- Black
Psu-power:
- 501W-750W
Purpose:
- PC
Sata Power Cable Length:
- 120,400 mm
Total Power:
- 750 W
Weight:
- 1.92 kg
Width:
- 150 mm
Descriere
Sursa ASUS PRIME 750W 80 PLUS BRONZE, Active PFC, ATX12V, protectii OPP/OVP/UVP/SCP/OCP/OTP
