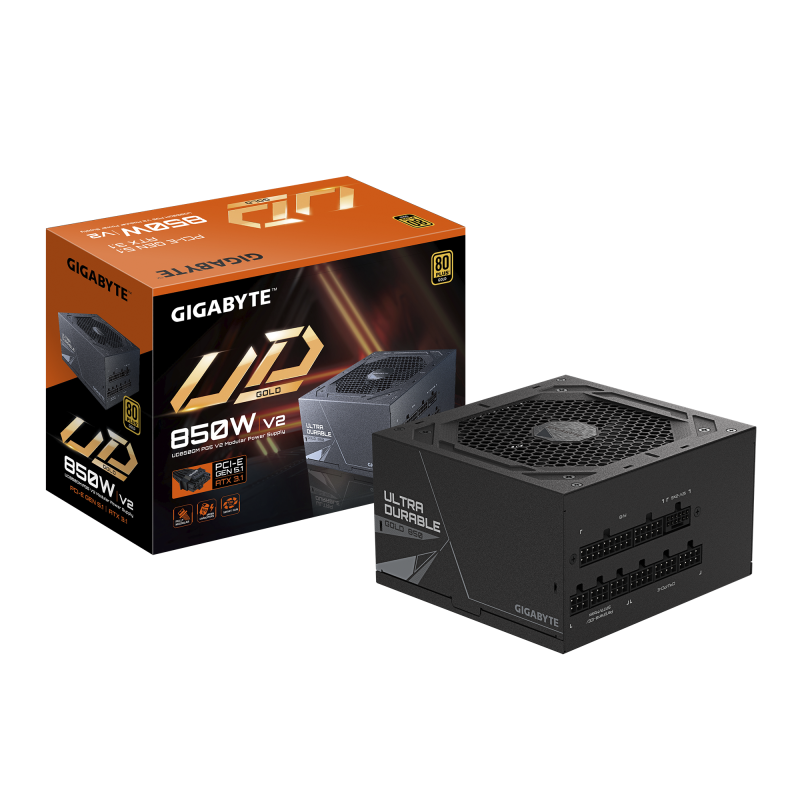

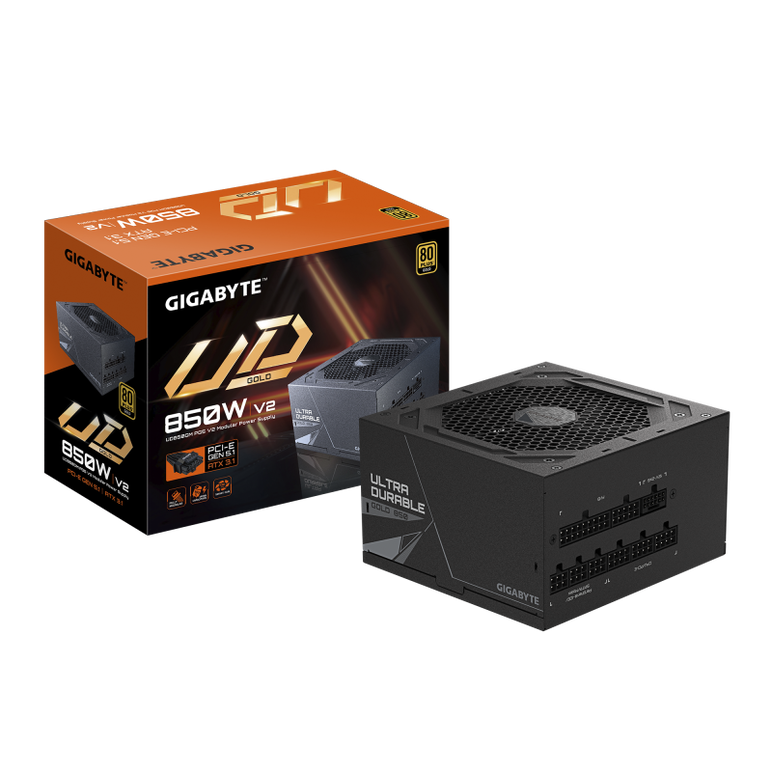

Gigabyte ud850gm pg5 v2 power supply unit- pcie gen 5.1, 80 plus gold, fully modular design, 120mm fan, atx 3.1 compatible, eu plug. total power: 850 w, ac input voltage: 100 - 240 v, ac input frequency: 50/60 hz. motherboard power connector: 20+4 pin at
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Version:
- 3.1
Bearing Technology:
- HYB
Cabling Type:
- Fully-Modular
Combined Power (+12v):
- 3.6 W
Combined Power (+3.3v):
- 105 W
Combined Power (+5v):
- 105 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Cooling Type:
- Active
Cpu Power Cable Length:
- 60 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 140 mm
Efficiency:
- 90%
Fan Diameter:
- 12 cm
Floppy Drive Power Connector:
- 1
Height:
- 86 mm
Hold Time:
- 16 ms
Input Current:
- 12 - 6 A
Max Output Current (+12v):
- 0.3 A
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Mean Time Between Failures (mtbf):
- 100000 h
Motherboard Power Cable Length:
- 61 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Eps Connectors:
- 2
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 8
On/off Switch:
- Yes
Package Depth:
- 269 mm
Package Height:
- 211 mm
Package Type:
- Box
Package Weight:
- 2.56 kg
Package Width:
- 618 mm
Pci Express Connector:
- Yes
Pci Express Power Cable Length:
- 70 cm
Pci Express Power Connectors (16-pin):
- 1
Pci Express Power Connectors (6+2 Pin):
- 4
Peripheral (molex) Power Cable Length:
- 150,500 mm
Peripheral (molex) Power Connectors (4-pin):
- 3
Power Factor:
- 0.9
Power Factor Correction (pfc) Type:
- Active
Power Protection Features:
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
GIGABYTE
Product Colour:
- Black
Purpose:
- PC
Sata Power Cable Length:
- 150,600 mm
Total Power:
- 850 W
Warranty Period:
- 10 year(s)
Weight:
- 2.4 kg
Width:
- 150 mm
Descriere
GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
