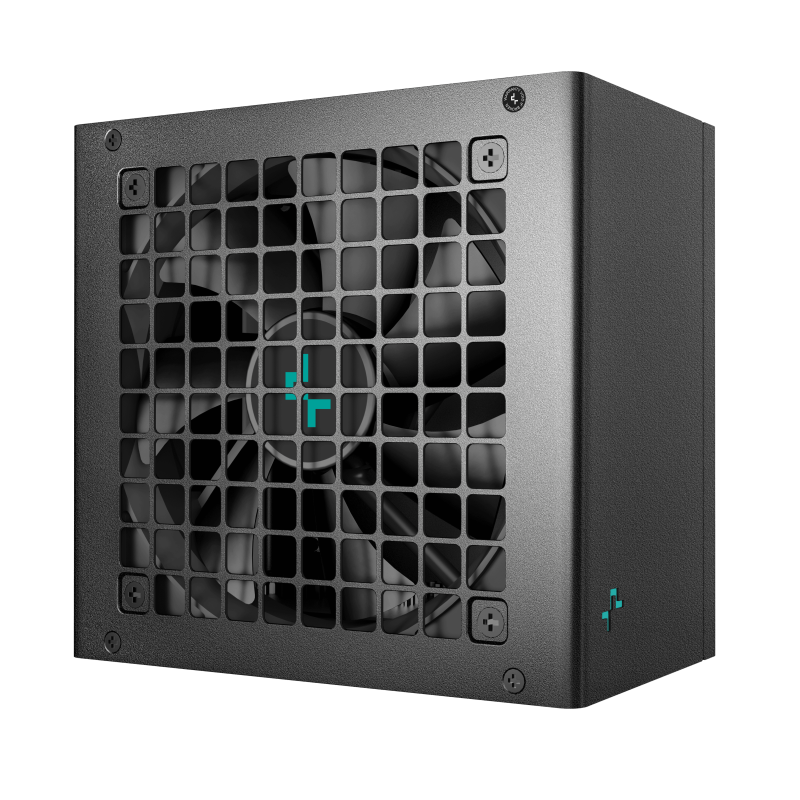

Deepcool pn750m. total power: 750 w, ac input voltage: 100 - 240 v, ac input frequency: 50/60 hz. motherboard power connector: 20+4 pin atx, motherboard power cable length: 55 cm, sata power cable length: 450,570,690,810 mm. purpose: pc, power supply unit
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
80 Plus Certification:
- 80 PLUS Gold
Ac Input Frequency:
- 50/60 Hz
Ac Input Voltage:
- 100 - 240 V
Atx Power Connector (20+4 Pin):
- Yes
Atx Version:
- 3.1
Bearing Technology:
- FDB
Cable Tie(s) Included:
- Yes
Cable Ties Included:
- Yes
Cables Included:
- AC, CPU, PCIe, Peripheral (Molex), SATA
Cabling Type:
- Fully-Modular
Combined Power (+12v):
- 3.6 W
Combined Power (+3.3v):
- 110 W
Combined Power (+5v):
- 110 W
Combined Power (+5vsb):
- 15 W
Combined Power (-12v):
- 3.6 W
Compliance Certificates:
- CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Cooling Type:
- Active
Cpu Power Cable Length:
- 70 cm
Cpu Power Connector (4+4 Pin):
- Yes
Depth:
- 140 mm
Efficiency:
- 90%
Fan Diameter:
- 12 cm
Fan Location:
- Top
Height:
- 86 mm
Hold Time:
- 16 ms
Input Current:
- 10 - 5 A
Max Output Current (+12v):
- 0.3 A
Max Output Current (+3.3v):
- 20 A
Max Output Current (+5v):
- 20 A
Max Output Current (+5vsb):
- 3 A
Max Output Current (-12v):
- 0.3 A
Mean Time Between Failures (mtbf):
- 100000 h
Motherboard Power Cable Length:
- 55 cm
Motherboard Power Connector:
- 20+4 pin ATX
Number Of Fans:
- 1 fan(s)
Number Of Sata Power Connectors:
- 8
On/off Switch:
- Yes
Operating Temperature (t-t):
- 0 - 40 °C
Package Type:
- Box
Pci Express Power Connectors (16-pin):
- 1
Pci Express Power Connectors (6+2 Pin):
- 3
Peripheral (molex) Power Cable Length:
- 930 mm
Peripheral (molex) Power Connectors (4-pin):
- 2
Power Factor Correction (pfc) Type:
- Active
Power Good Signal Delay Range:
- 100 - 150 ms
Power Supply Unit (psu) Form Factor:
- ATX
Producator:
DEEPCOOL
Product Colour:
- Black
Purpose:
- PC
Sata Power Cable Length:
- 450,570,690,810 mm
Sustainability Certificates:
- ErP, Triman
Total Power:
- 750 W
Warranty Period:
- 10 year(s)
Width:
- 150 mm
Descriere
DeepCool PN750M. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
