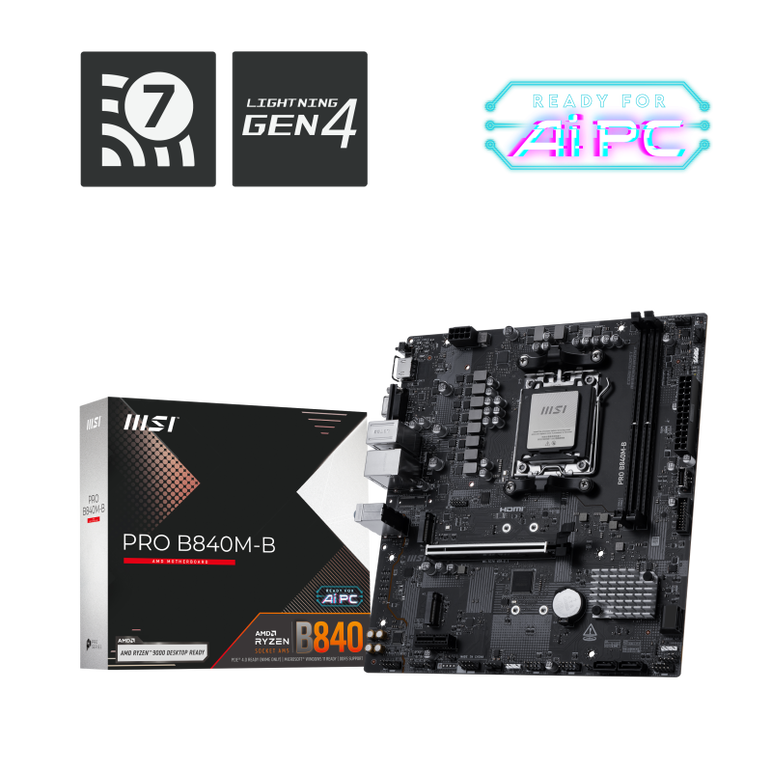

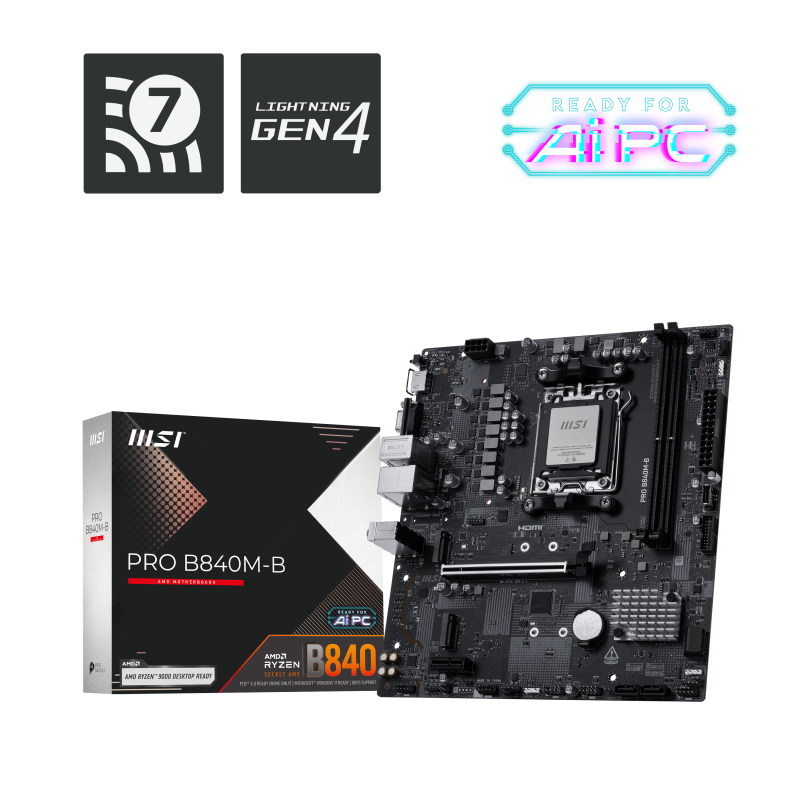

Placa de baza msi pro b840m-b, socket am5, ddr5, micro-atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
Acpi Version:
- 6.5
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Depth:
- 243.8 mm
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Lan Controller:
- Realtek RTL8125D
Maximum Internal Memory:
- 128 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- AMD B840
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- micro ATX
Msata Ports Quantity:
- 0
Number Of Chassis Fan Connectors:
- 5
Number Of Cpu Fan Connectors:
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 3
Number Of Sata Connectors:
- 0
Number Of Sata Express Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Number Of Water Pump Connectors:
- 1
On-board Graphics Card:
- No
Pci Express X16 Slots:
- 2
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
MSI
Product Colour:
- Black
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
Supported Memory Clock Speed (max):
- 8000 MHz
Supported Memory Clock Speeds:
- 4800,5600,8000 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, Micro SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 3.7
Total Number Of Sata Connectors:
- 4
Usb 2.0 Connectors:
- 4
Usb 2.0 Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Vga (d-sub) Ports Quantity:
- 0
Wi-fi:
- No
Width:
- 226 mm
Windows Operating Systems Supported:
- Windows 11 x64
Descriere
MSI PRO B840M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
