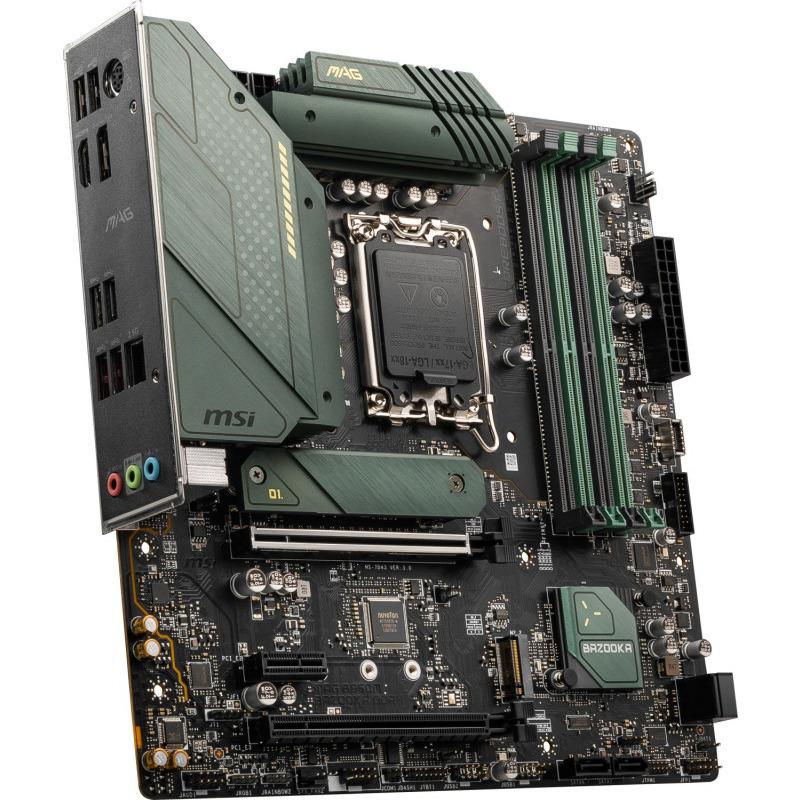

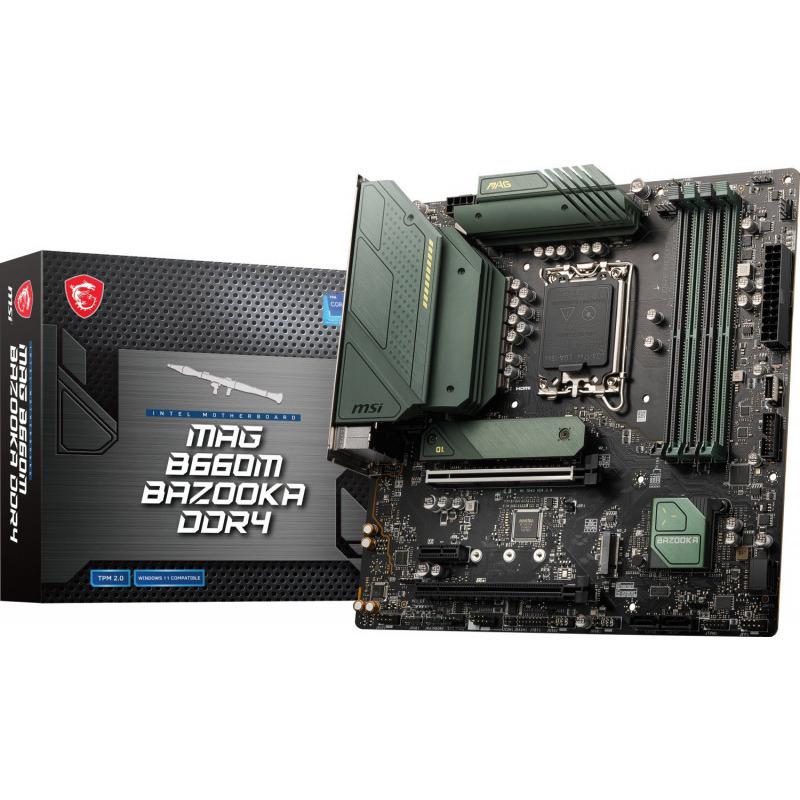

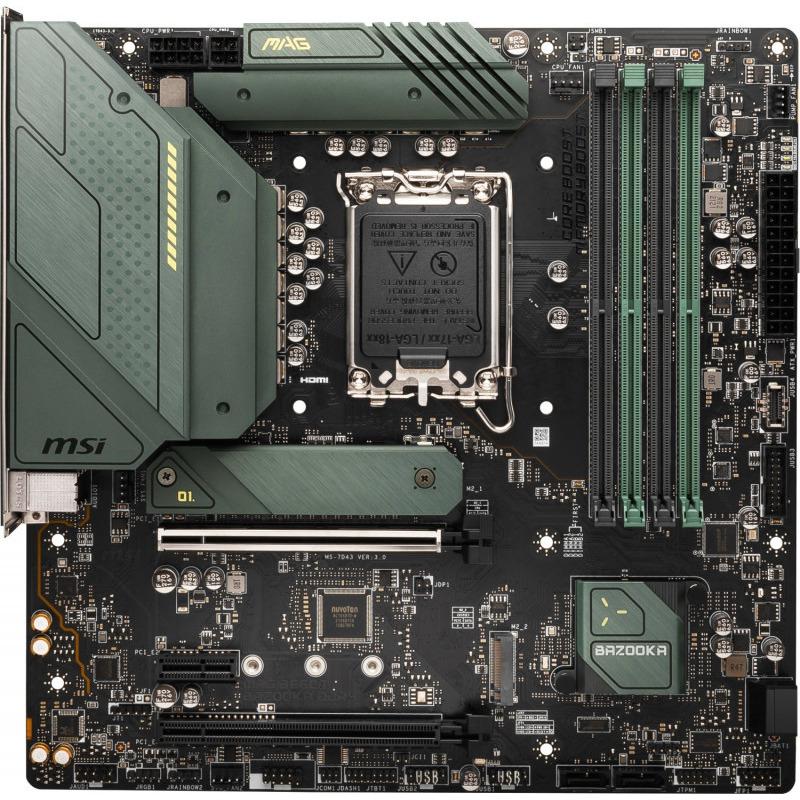

Placa de baza msi mag b660m bazooka ddr4, lga 1700
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
Chipset:
- Intel
Conectori Sata:
- 6GB/s
Form Factor:
- micro-ATX
Onboard-cpu:
- No
Producator:
MSI
Ram Type:
- DDR4
Slot M.2:
- 2
Slot Pci-ex1:
- 1
Slot Pci-ex16:
- 2
Slot Ram:
- 4
Socket Cpu:
- 1700
Usb:
- 4-8
Video Output:
- HDMI/Display Port
Descriere

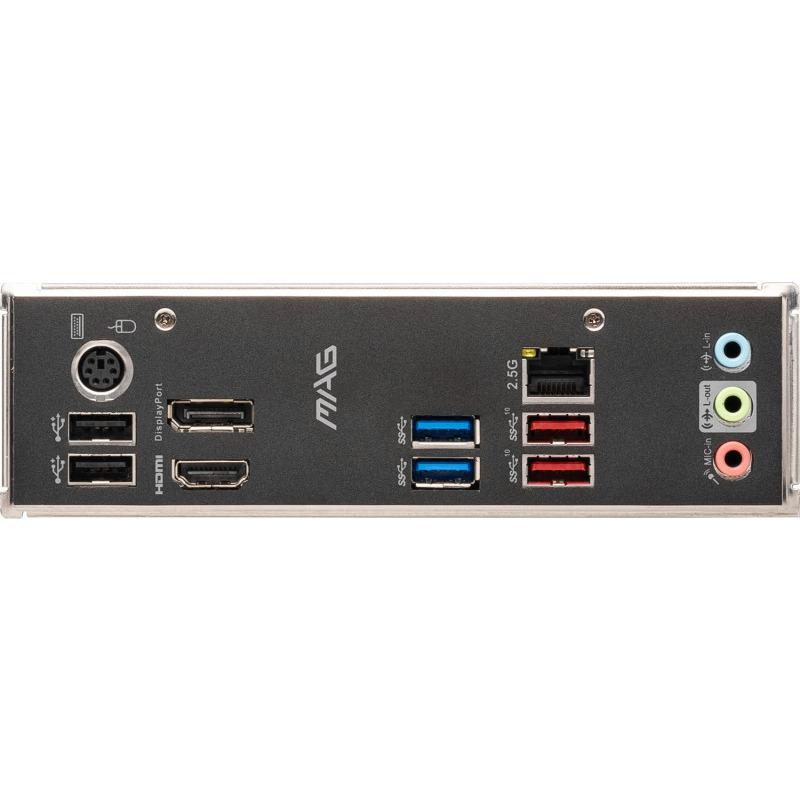

Placa de baza MSI MAG B660M BAZOOKA DDR4 LGA 1700 911-7D43-006 / 4719072921477 SPECIFICATIONS Model Name MAG B660M BAZOOKA DDR4 CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B660 Chipset Graphics Interface 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot Support AMD® CrossFire™ Technology Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4800+ (OC) Expansion Slot 1x PCIe 3.0 x1 slot Storage 2x M.2 Gen4 x4 64Gbps slots, supports Intel® Optane™ Technology 4 x SATA 6Gb/s USB ports 2x USB3.2 Gen2 10Gbps (2 Type-A), 5x USB 3.2 Gen1 5Gbps (4 Type-A + 1 Type-C), 6x USB 2.0 LAN Realtek® RTL8125BG 2.5Gbps LAN Audio 8-Channel (7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/MAG-B660M-BAZOOKA-DDR4/Specification
