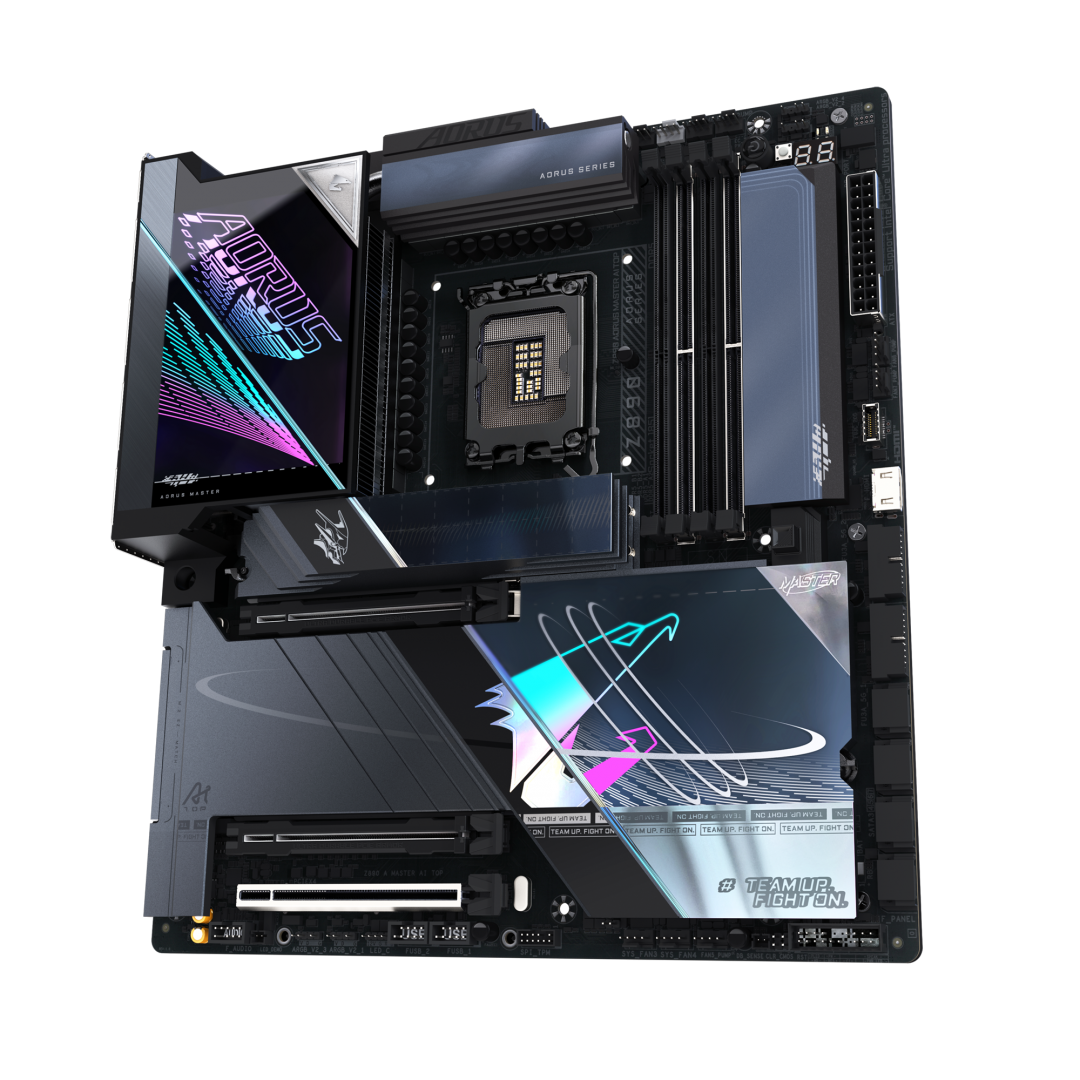

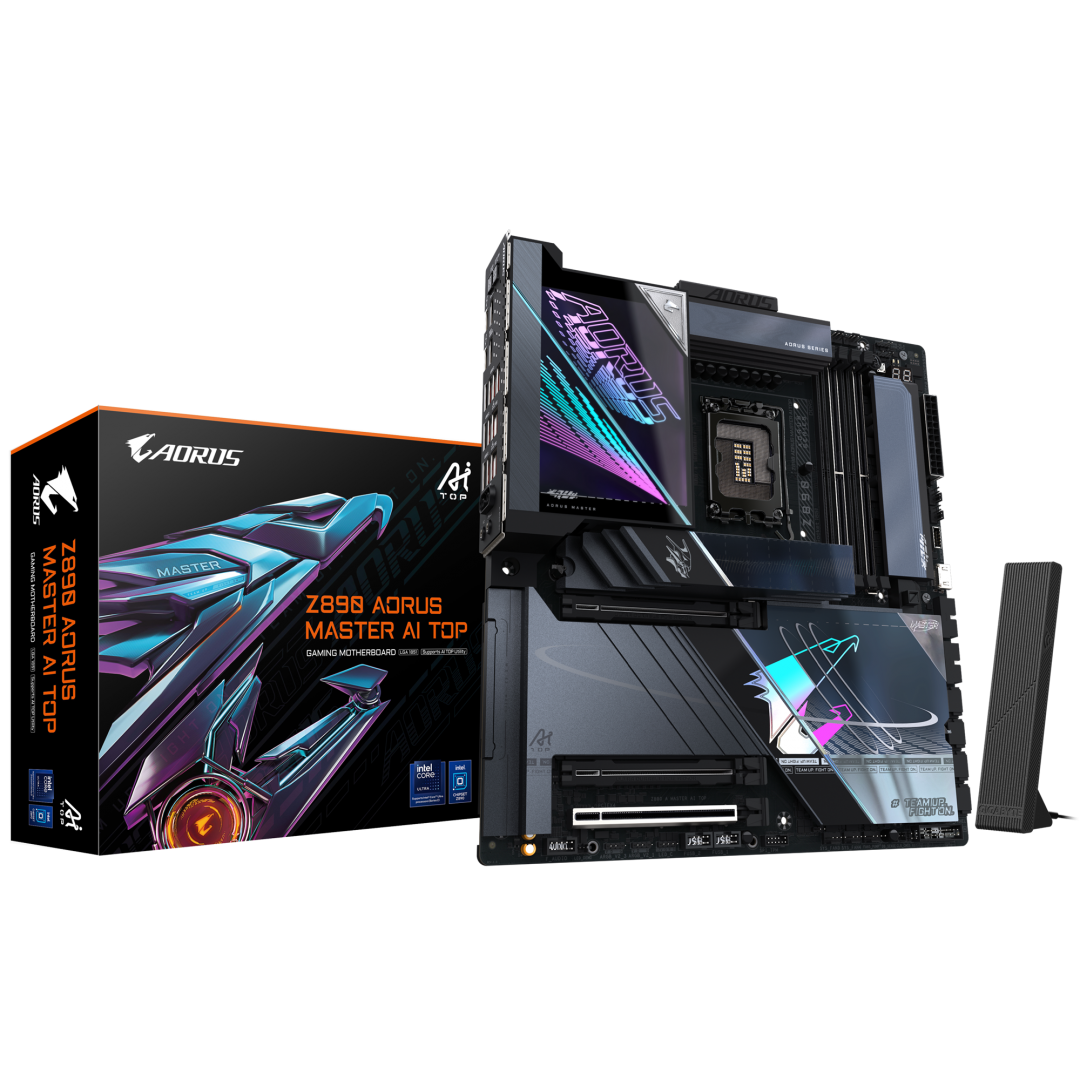

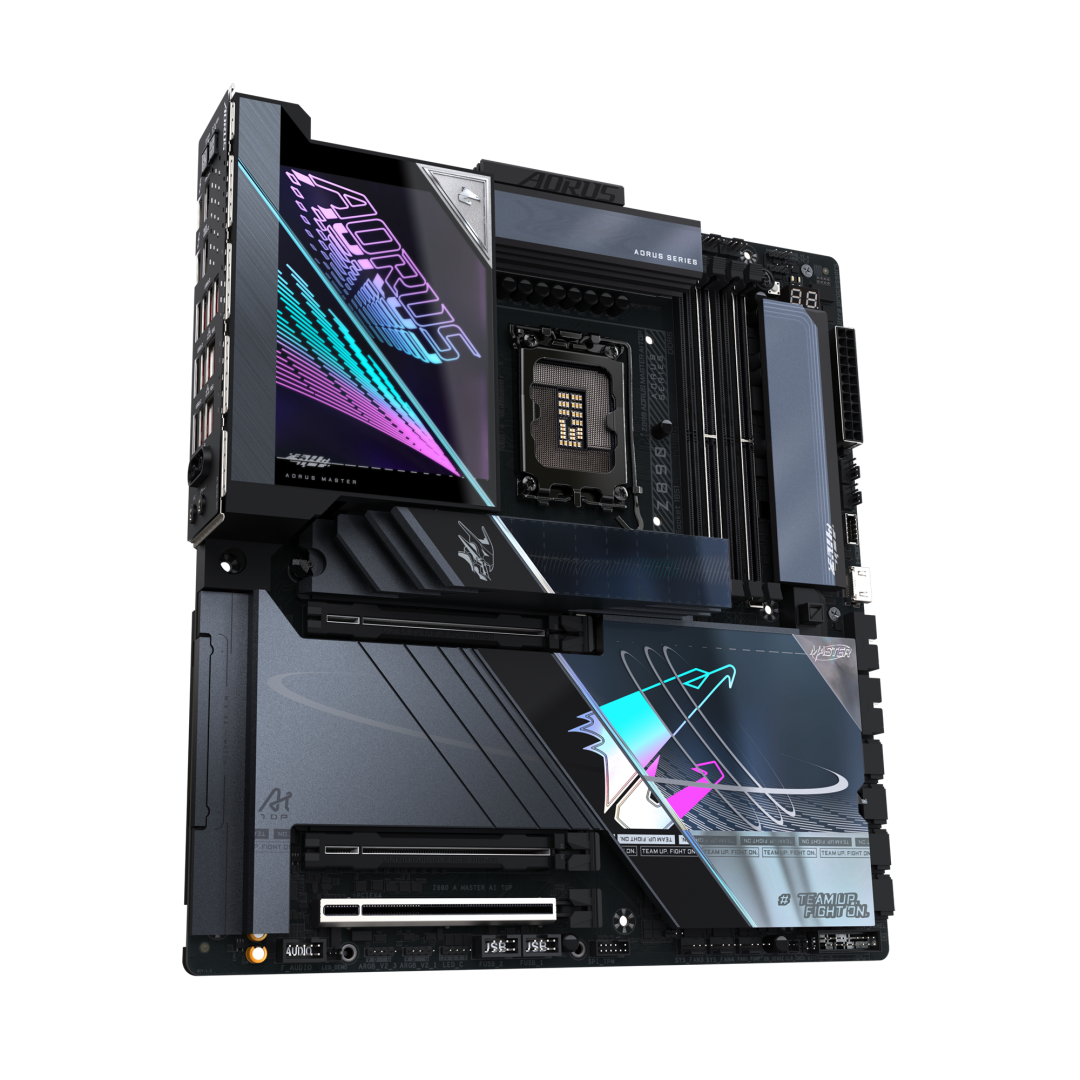

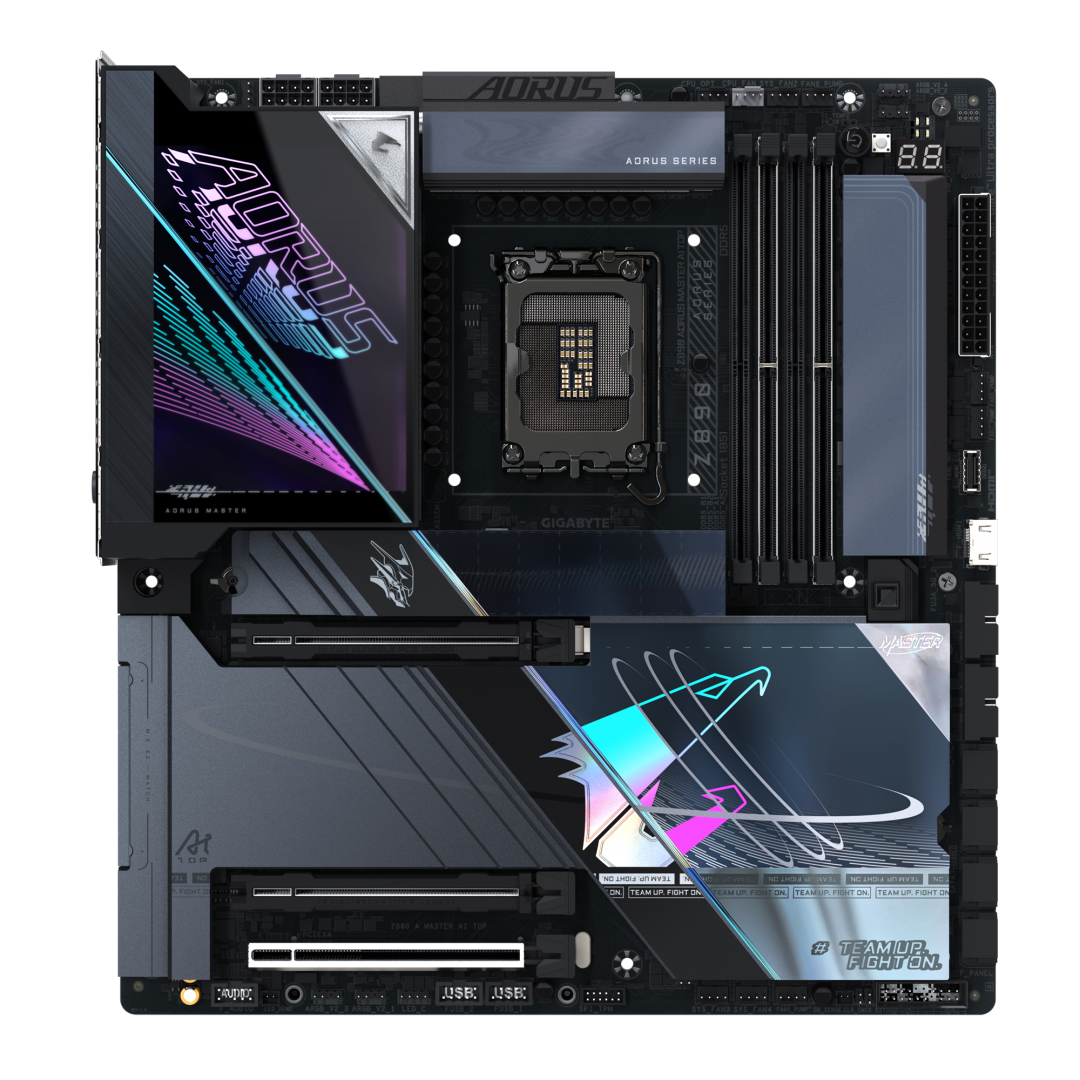

Placa de baza gigabyte z890 aorus master ai top lga1851
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0

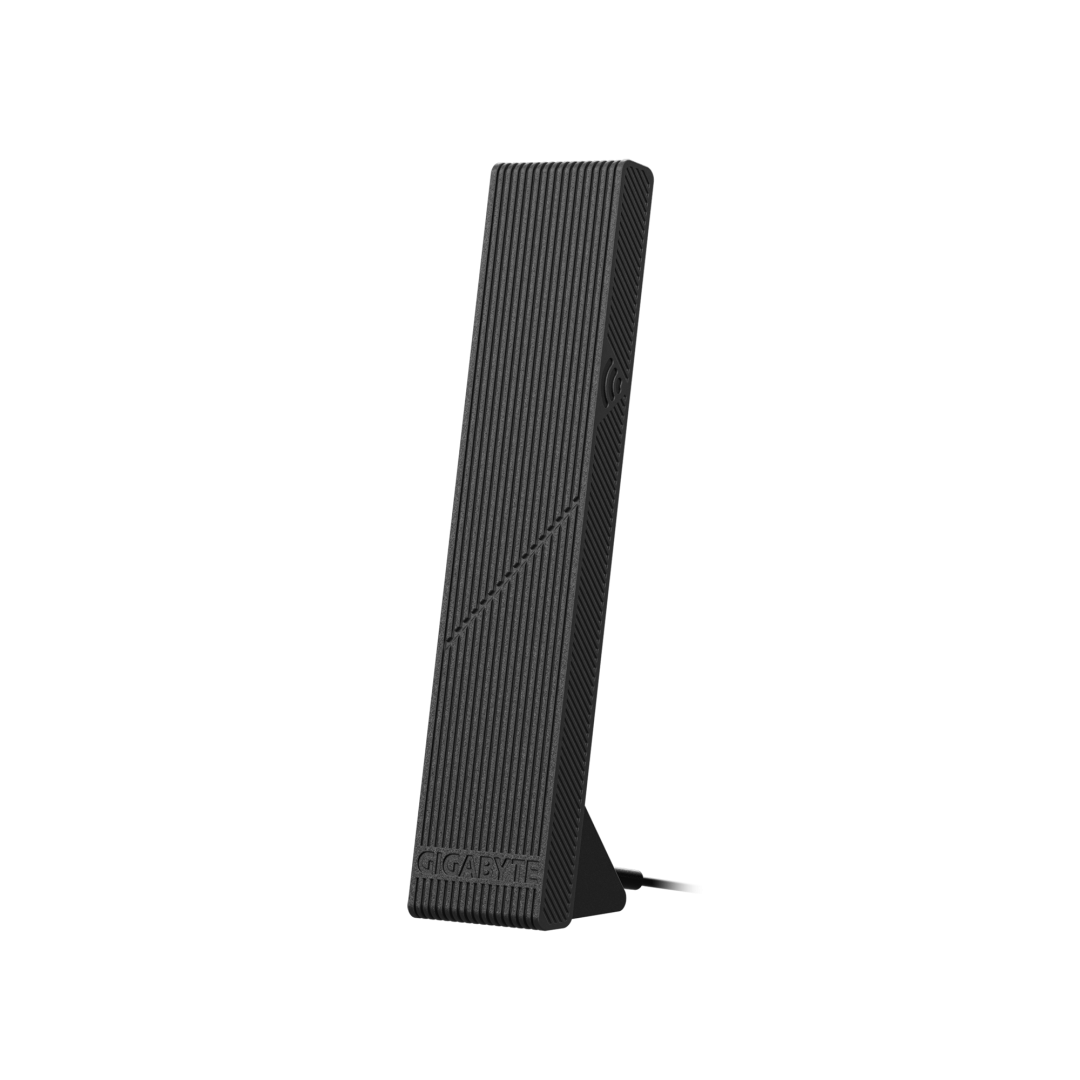

Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Output Channels:
- 2.0 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Bracket Height:
- Full-Height (FH)
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Button:
- Yes
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cooling Technology:
- Gigabyte Turbo Fan
Cooling Type:
- Active
Country Of Origin:
- Taiwan
Cpu Fan Connector:
- Yes
Cuda:
- No
Depth:
- 285 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Discrete Graphics Card Memory:
- 48 GB
Displayport Version:
- 2.1
Displayports Quantity:
- 3
Dual Link Dvi:
- No
Dvi-d Ports Quantity:
- 0
Dvi-i Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 10 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 2
Form Factor:
- Full-Height/Full-Length (FH/FL)
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Graphics Card Memory Type:
- GDDR6
Graphics Processor:
- Radeon PRO W7900
Graphics Processor Family:
- AMD
Hdcp:
- Yes
Hdmi Ports Quantity:
- 0
Headphone Outputs:
- 1
Height:
- 35 mm
Interface Type:
- PCI Express x16 4.0
Lan Controller:
- Marvell AQtion AQC113C
Length:
- 293 mm
Lithium Weight Per Battery:
- 0.07 g
Manual:
- Yes
Maximum Displays Per Videocard:
- 4
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Internal Memory Supported By Processor:
- 256 GB
Maximum Resolution:
- 5120 x 2880 pixels
Memory Bandwidth (max):
- 864 GB/s
Memory Bus:
- 384 bit
Memory Channels:
- Dual-channel
Memory Clock Speed:
- 18000 MHz
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Mini Displayports Quantity:
- 1
Minimum System Power Supply:
- 750 W
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- Extended ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 8
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Fans:
- 1 fan(s)
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Noise Detection Headers:
- 1
Number Of Rgb Led Pin Headers:
- 5
Number Of Sata Iii Connectors:
- 4
Number Of Slots:
- 2
Number Of Storage Drives Supported:
- 8
Number Of Temperature Sensor Headers:
- 2
Number Of Water Pump Connectors:
- 5
Onboard-cpu:
- No
Opengl Version:
- 4.6
Package Depth:
- 335 mm
Package Height:
- 430 mm
Package Type:
- Box
Package Weight:
- 43 kg
Package Width:
- 400 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 2
Power Consumption (max):
- 295 W
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Black
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- Yes/No
Stream Processors:
- 6144
Supplementary Power Connectors:
- 2x 8-pin
Supported Memory Clock Speed (max):
- 9500 MHz
Supported Memory Module Capacities:
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Thermal Design Power (tdp):
- 241 W
Thunderbolt Ports Quantity:
- 2
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Tv Tuner Integrated:
- No
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 10
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 3.76 kg
Wi-fi:
- Yes
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11 x64
Wlan Controller Model:
- Intel Wi-Fi 7 BE200
Comunicatii
Bluetooth:
Yes
Descriere
Placa de Baza GIGABYTE Z890 AORUS MASTER AI TOP LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, E- ATX
