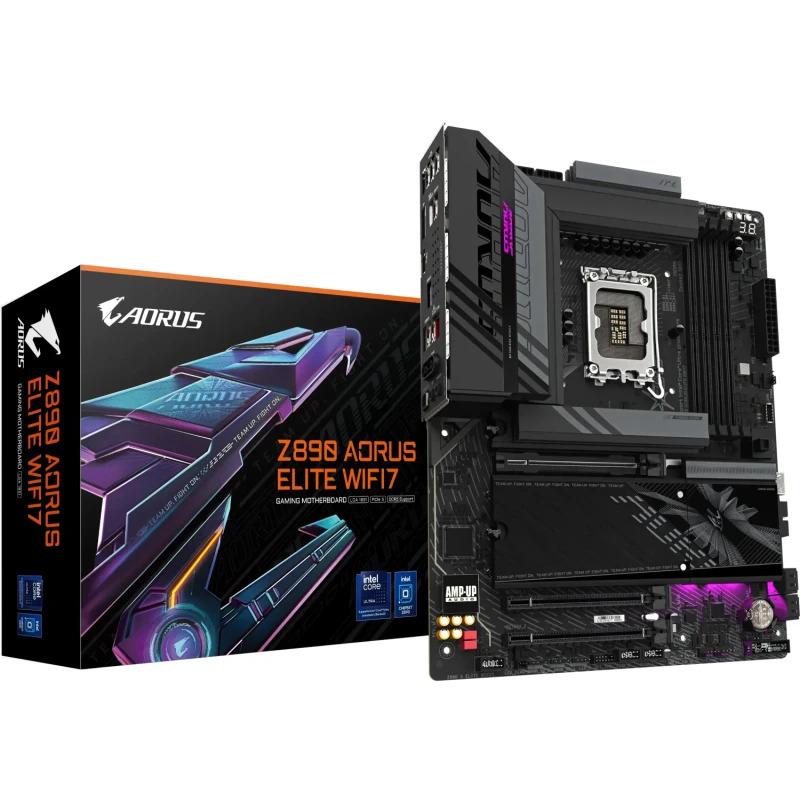

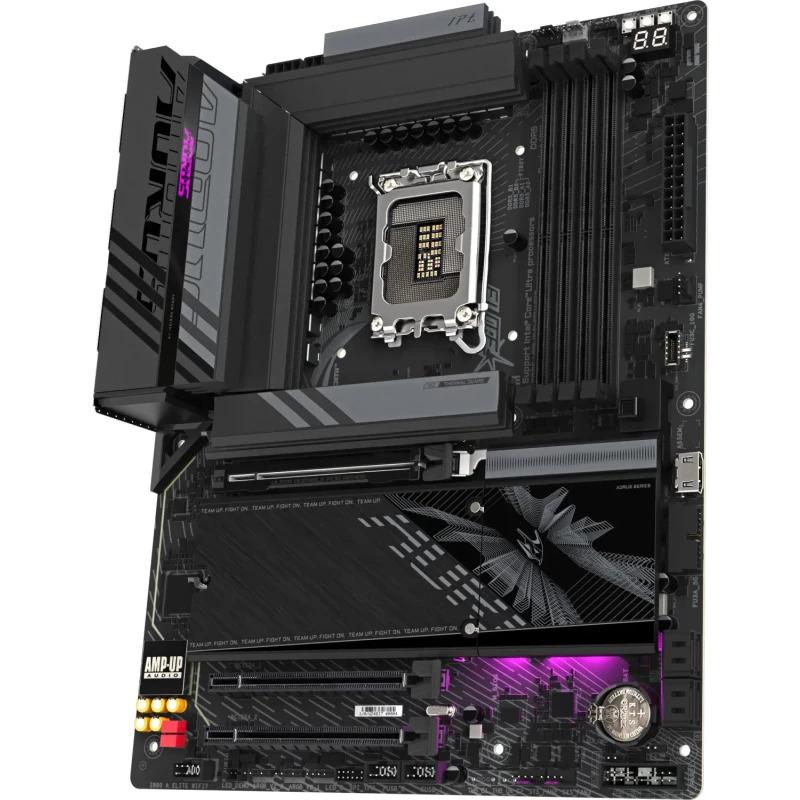

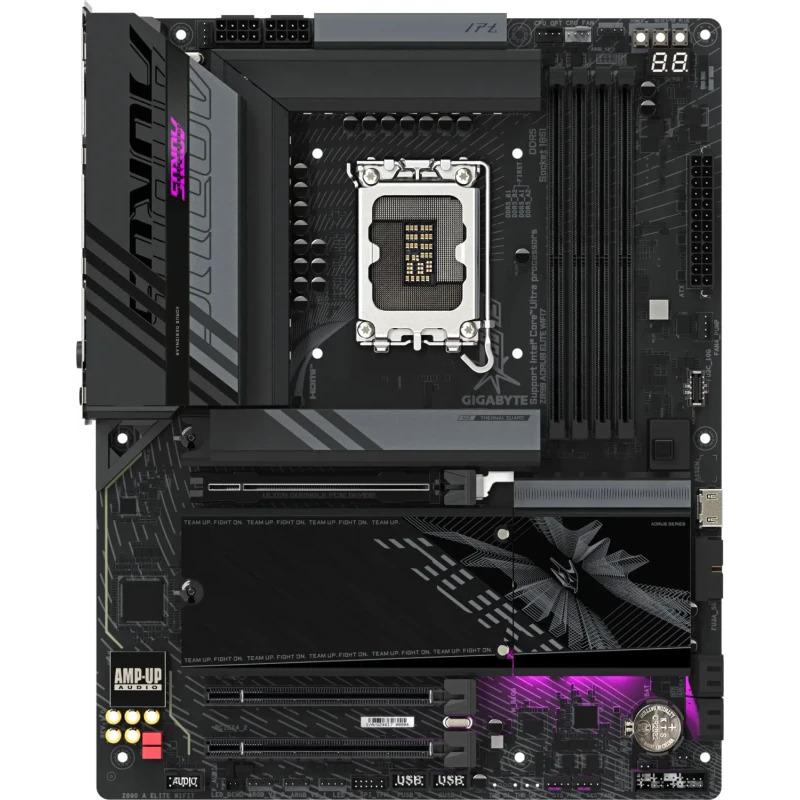

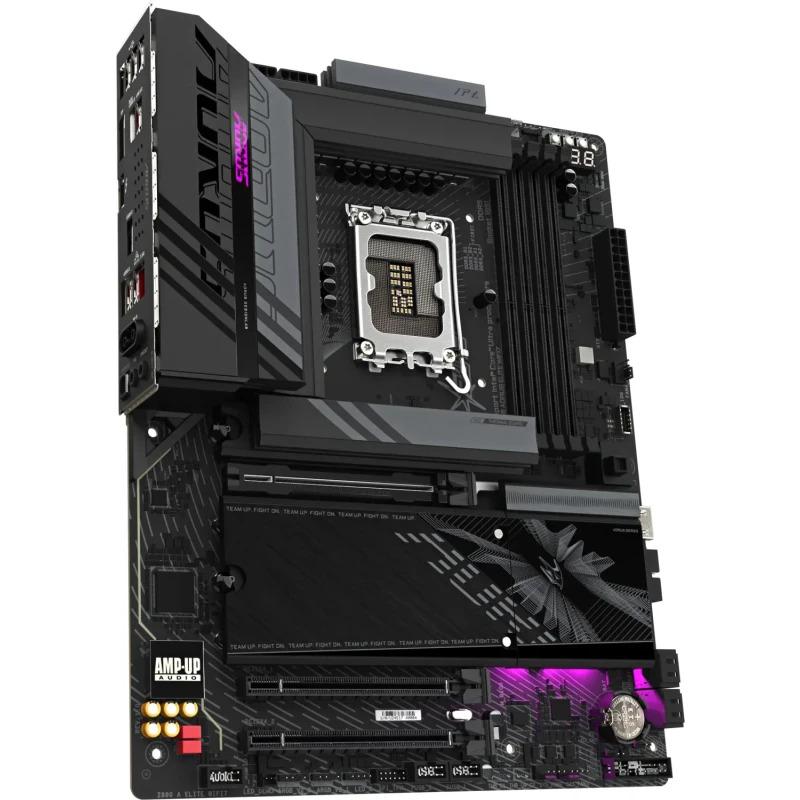

Placa de baza gigabyte z890 aorus elite wifi7 lga1851
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Button:
- Yes
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Country Of Origin:
- China
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayports Quantity:
- 2
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Hdmi Ports Quantity:
- 1
Height:
- 35 mm
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Supported By Processor:
- 256 GB
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Msata Ports Quantity:
- 0
Number Of Battery Cells:
- 1
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 8
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Sata Connectors:
- 0
Number Of Sata Ii Connectors:
- 0
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 4
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 270 mm
Package Height:
- 80 mm
Package Weight:
- 2.5 kg
Package Width:
- 335 mm
Pc Health Monitoring:
- Fan, Temperature, Voltage
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 2
Pci Express X16 (gen 5.x) Slots:
- 1
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Black
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Serial-or-paralel:
- Yes/No
Supported Memory Clock Speed (max):
- 8800 MHz
Supported Memory Module Capacities:
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Thunderbolt Ports Quantity:
- 1
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Total Number Of Sata Connectors:
- 4
Tpm Connector:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 2.23 kg
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 11 x64
Wlan Controller Model:
- MediaTek MT7925
Comunicatii
Bluetooth:
Yes
Descriere
Placa de Baza GIGABYTE Z890 AORUS ELITE WIFI7 LGA1851, 4x DDR5, 1x PCIE 5.0 x16 2x PCIE 4.0 x16, 1x DP, 4x M.2, 4x SATA III, ATX
