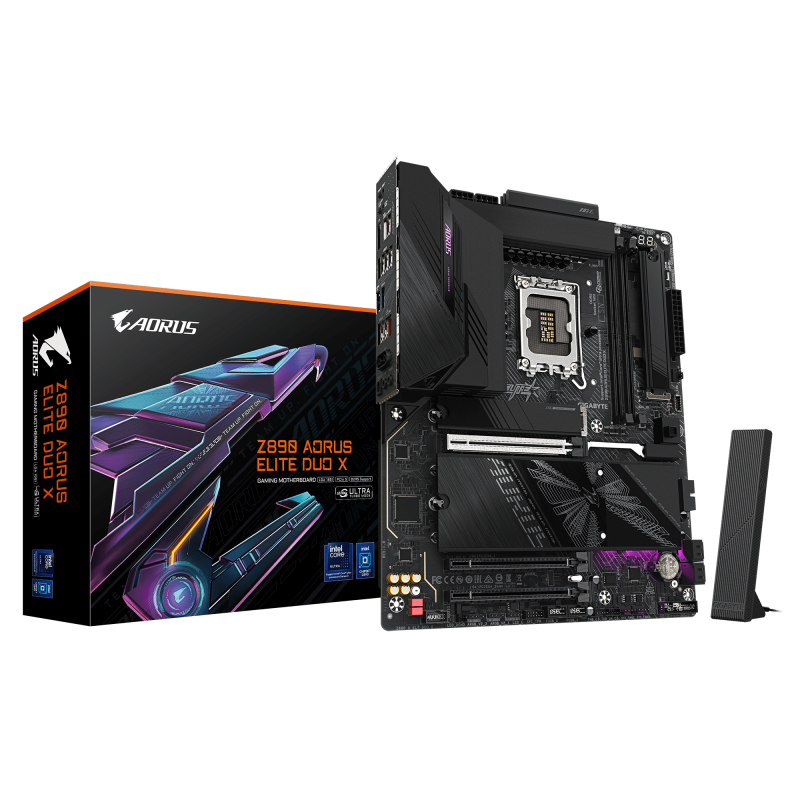

Placa de baza gigabyte z890 aorus elite duo x, lga 1851, ddr5, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 22110
5th M.2 Highest Pci Express Generation:
- 4.0
5th M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Capacity:
- 220 mAh
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 512 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Bundled Software:
- Norton® Internet Security (OEM version)
Clear Cmos Button:
- Yes
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cooling Type:
- Passive
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 305 mm
Desktop Management Interface (dmi) Version:
- 2.7
Digital Audio Optical Out:
- 1
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdcp Version:
- 2.3
Hdmi Ports Quantity:
- 0
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8126
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 128 GB
Maximum Resolution:
- 4096 x 2304 pixels
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel Z890 Express
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 5
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 9
Number Of Water Pump Connectors:
- 2
Onboard-cpu:
- No
Package Depth:
- 294 mm
Package Height:
- 80 mm
Package Weight:
- 3.05 kg
Package Width:
- 345 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 2
Pci Express X16 (gen 5.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 4
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Black
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- Yes/No
Supported Memory Clock Speed (max):
- 10266 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- PCI Express 5.0, PCI Express 4.0, NVMe, M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Usb4 Gen 2x2 Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 2.63 kg
Wi-fi:
- Yes
Width:
- 244 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11
Wlan Controller Model:
- Intel Wi-Fi 7 BE200
Comunicatii
Bluetooth:
Yes
Descriere
Placa de baza GIGABYTE Z890 A ELT DUO X
