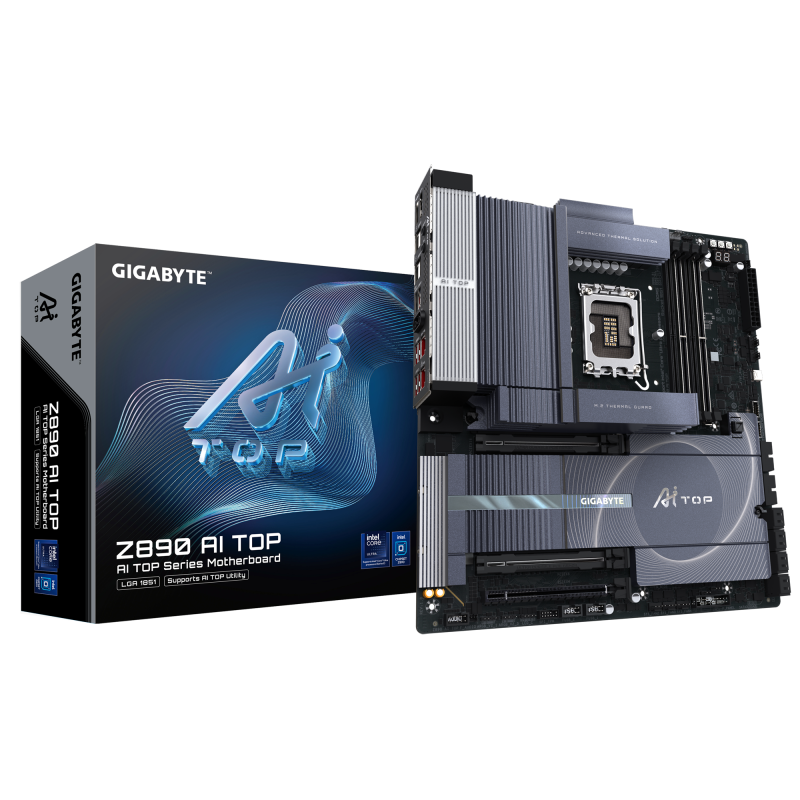

Placa de baza gigabyte z890 ai top lga1851, 4x ddr5, 2x intel thunderbolt 1x front intel thunderbolt 1x hdmi, 2x pcie 5.0 x16 1x pcie 4.0 x16, 4x m.2, 4x sata 6gb/s (4-7) 4x sata 6gb/s (0-3), e-atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 25110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- ESS ES9260
Audio Output Channels:
- 2.0 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Country Of Origin:
- Taiwan
Cpu Fan Connector:
- Yes
Depth:
- 285 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 10 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 2
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Marvell AQtion AQC113C
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 7680 x 4320 pixels
Mb-format:
- EATX
Mb-socket:
- LGA1851
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Motherboard Chipset:
- Intel Z890
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- Extended ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 6
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 8
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Noise Detection Headers:
- 1
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 8
Number Of Storage Drives Supported:
- 12
Number Of Temperature Sensor Headers:
- 2
Number Of Water Pump Connectors:
- 3
Onboard-cpu:
- No
Package Depth:
- 335 mm
Package Height:
- 430 mm
Package Weight:
- 4.1 kg
Package Width:
- 400 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 2
Pci-ex1:
- 0
Pci-ex16:
- 3
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Black
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- Yes/No
Supported Memory Clock Speed (max):
- 9500 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Thunderbolt Headers:
- 1
Thunderbolt Ports Quantity:
- 2
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 6
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 2
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 3.53 kg
Wi-fi:
- Yes
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11 x64
Wlan Controller Model:
- Intel Wi-Fi 7 BE200
Comunicatii
Bluetooth:
Yes
Descriere
Placa de Baza GIGABYTE Z890 AI TOP LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s (4-7) 4x SATA 6GB/s (0-3), E-ATX
