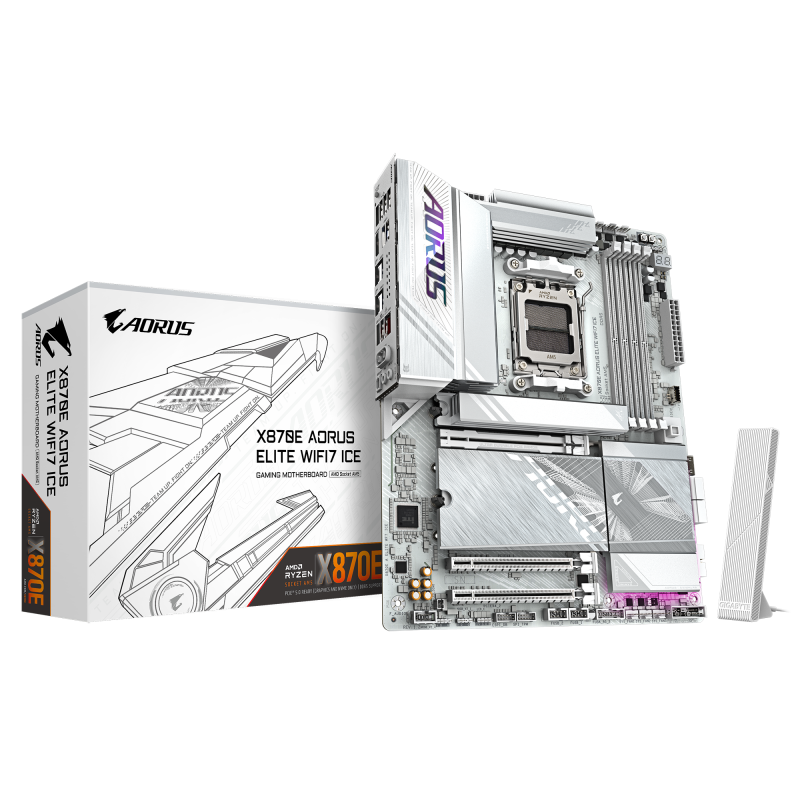

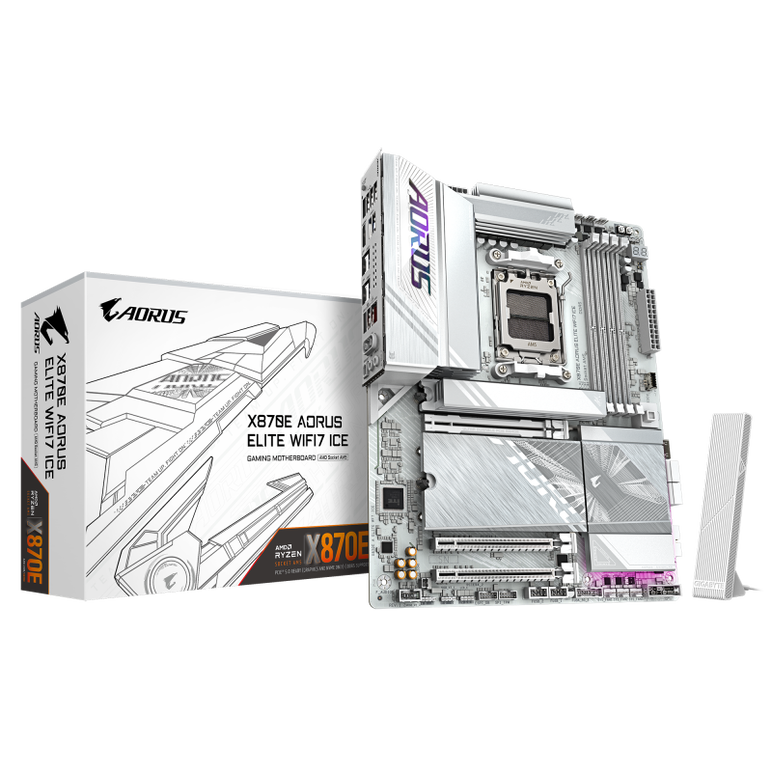

Placa de baza gigabyte x870e aorus elite wifi7 ice am5, 4x ddr5, 2x usb4 1x hdmi 1x front hdmi, 1x pcie 5.0 x16 1x pcie 4.0 x16 1x pcie 3.0 x16, 4x m.2, 4x sata 6gb/s, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 5.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 5.0
3rd M.2 Largest Key Size:
- 22110
4th M.2 Highest Pci Express Generation:
- 4.0
4th M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC1220-VB
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.4
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Cooling Type:
- Passive
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Digital Audio Optical Out:
- 1
Directx Version:
- 12.0
Displayport Version:
- 1.4
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8125
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD X870E
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 2
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 4
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 8
Number Of Water Pump Connectors:
- 2
On-board Graphics Card:
- No
Onboard-cpu:
- No
Package Depth:
- 294 mm
Package Height:
- 80 mm
Package Weight:
- 2.64 kg
Package Width:
- 345 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Pci-ex1:
- 0
Pci-ex16:
- 3
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
GIGABYTE
Product Colour:
- White
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
S/pdif Out Port:
- Yes
Screws Included:
- Yes
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 8200 MHz
Supported Memory Clock Speeds:
- 8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, PCI Express 5.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 7 (802.11be)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Connectors:
- 1
Usb3:
- 4-8
Usb4 Gen 2x2 Ports Quantity:
- 2
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 2.64 kg
Wi-fi:
- Yes
Wi-fi Standards:
- Wi-Fi 7 (802.11be)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 11 x64
Wlan Controller Model:
- Realtek RTL8922AE
Comunicatii
Bluetooth:
Yes
Descriere
Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
