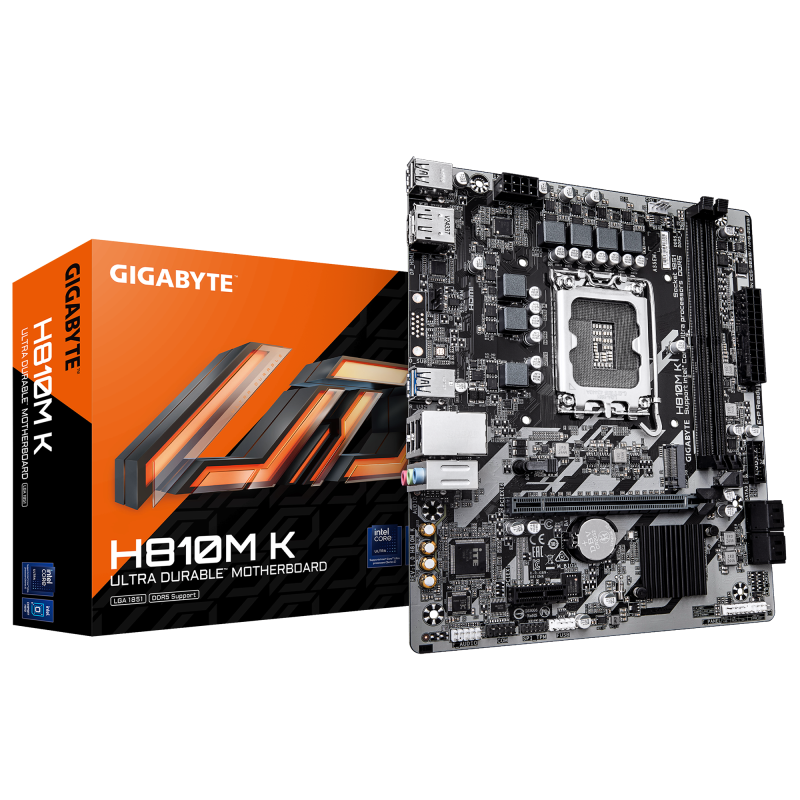

Placa de baza gigabyte h810m k lga1851, 2x ddr5, 1x dp 1x hdmi, 1x pcie 4.0 x16 1x pcie 3.0 x1, 1x m.2, 4x sata 6gb/s, matx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
1st M.2 Highest Pci Express Generation:
- 4.0
1st M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Canale Audio:
- N/A
Chipset Audio Integrat:
- Realtek
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel Core Ultra (Series 2)
Component For:
- PC
Cooling Type:
- Passive
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 185 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Format:
- Micro-ATX (mATX)
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Gaming:
- Nu
Hdcp:
- Yes
Hdmi:
- Da
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8111H
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- micro-ATX
Mb-socket:
- LGA1851
Memorie Maxima:
- N/A
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Model Chipset:
- H810
Motherboard Chipset:
- Intel H810
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Numar Sloturi Memorie:
- 2
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 1
Number Of Cpu Fan Connectors:
- 1
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 1
Number Of Memory Slots:
- 2
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 5
Onboard-cpu:
- No
Package Depth:
- 265 mm
Package Height:
- 54 mm
Package Weight:
- 766.6 g
Package Width:
- 265 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X1 (gen 3.x) Slots:
- 1
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Dark brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Ram-slots:
- 2
Rj-45 Lan:
- N/A
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Sloturi M.2:
- 1
Soclu Procesor:
- Socket 1851
Supported Memory Clock Speed (max):
- 6400 MHz
Supported Memory Clock Speeds:
- 5600,6400 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, PCI Express 4.0, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Thunderbolt:
- Nu
Tip Slot Interfata Grafica:
- PCIe 4.0 x16
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 1
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb Type C:
- N/A
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 688 g
Wi-fi:
- No
Width:
- 226 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Comunicatii
Bluetooth:
Nu
Memorie
Tip memorie:
DDR5
Descriere
Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
