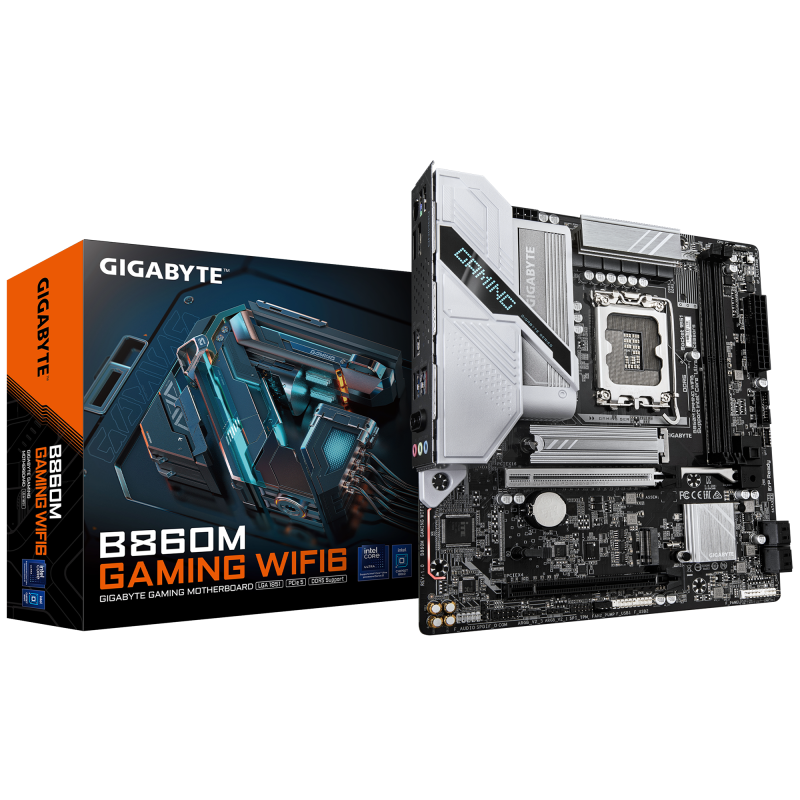

Placa de baza gigabyte b860m gaming wifi6e
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 2280
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 2280
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Capacity:
- 220 mAh
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bluetooth Version:
- 5.3
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component For:
- PC
Cooling Type:
- Passive
Cpu Fan Connector:
- Yes
Depth:
- 225 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 3.5 mm
Lan Controller:
- Realtek RTL8125
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 128 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- micro ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 2
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 2
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Number Of Water Pump Connectors:
- 2
Package Depth:
- 268 mm
Package Height:
- 68 mm
Package Weight:
- 1.29 kg
Package Width:
- 270 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci Express X16 (gen 4.x) Slots:
- 1
Pci Express X16 (gen 5.x) Slots:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Supported Memory Clock Speed (max):
- 9066 MHz
Supported Memory Clock Speeds:
- 5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Thunderbolt Headers:
- 2
Top Wi-fi Standard:
- Wi-Fi 6E (802.11ax)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Vga (d-sub) Ports Quantity:
- 0
Weight:
- 1.23 kg
Wi-fi:
- Yes
Width:
- 244 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Wlan Controller Model:
- Intel Wi-Fi 6E AX211
Comunicatii
Bluetooth:
Yes
Descriere
Placa de baza Gigabyte B860M GAMING WIFI6E
