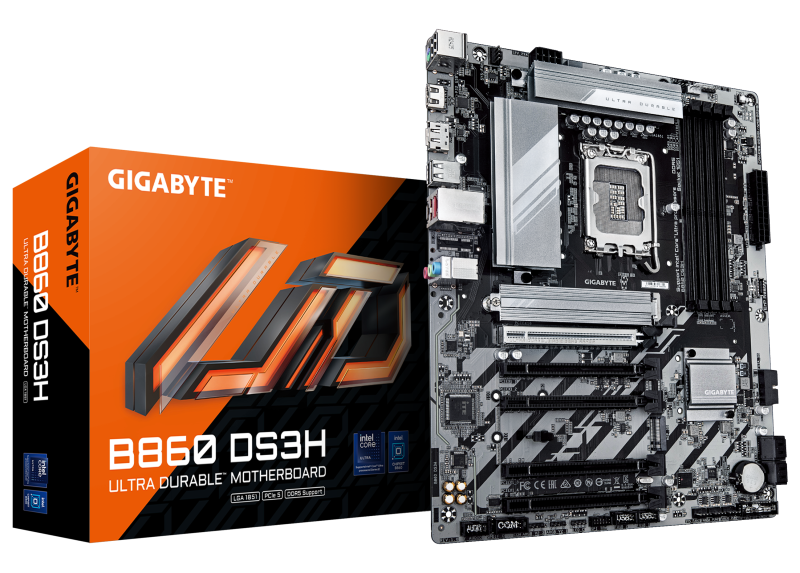

Placa de baza gigabyte b860 ds3h lga1851, 4x ddr5, 1x hdmi 1x dp, 1x pcie 5.0 x16 4x pcie 4.0 x16, 2x m.2, 4x sata 6gb/s, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 25110
Acpi Version:
- 5.0
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component For:
- PC
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 2.1
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- ECC & Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- 2.5 Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8125
Line-in:
- Yes
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- Intel B860
Motherboard Chipset Family:
- Intel
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 4
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 2
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 6
Number Of Water Pump Connectors:
- 3
Onboard-cpu:
- No
Package Depth:
- 270 mm
Package Height:
- 80 mm
Package Width:
- 335 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 4.x) Slots:
- 4
Pci Express X16 (gen 5.x) Slots:
- 1
Power Source Type:
- ATX
Processor Manufacturer:
- Intel
Processor Socket:
- LGA 1851 (Socket V1)
Producator:
GIGABYTE
Product Colour:
- Brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Ps/2 Ports Quantity:
- 1
Raid Levels:
- 0, 1, 5, 10
Raid Support:
- Yes
Rgb Led Pin Header:
- Yes
S/pdif Out Connector:
- Yes
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 9066 MHz
Supported Memory Clock Speeds:
- 5600,6400,9066 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- LGA 1851
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 2
Usb 2.0 Ports Quantity:
- 4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb 3.2 Gen 2x2 Type-c Ports Quantity:
- 1
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 2 kg
Wi-fi:
- No
Width:
- 305 mm
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Descriere
Placa de Baza GIGABYTE B860 DS3H LGA1851, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 4x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, ATX
