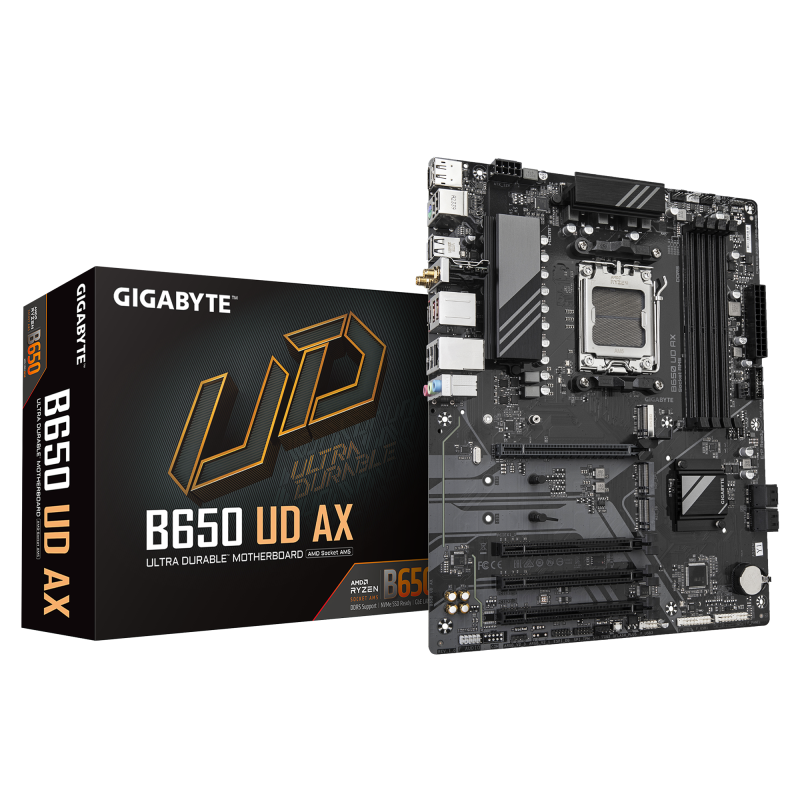

Placa de baza gigabyte b650 ud ax am5, 4x ddr5, 1x dp 1x hdmi, 1x pcie 4.0 x16 2x pcie 3.0 x16 1x pcie 3.0 x1, 3x m.2, 4x sata 6gb/s, atx
Conectează-te ca să te putem notifica când primești un răspuns
Specificații
12v Power Connector:
- Yes
1st M.2 Highest Pci Express Generation:
- 5.0
1st M.2 Largest Key Size:
- 25110
2nd M.2 Highest Pci Express Generation:
- 4.0
2nd M.2 Largest Key Size:
- 22110
3rd M.2 Highest Pci Express Generation:
- 4.0
3rd M.2 Largest Key Size:
- 22110
Acpi Version:
- 5.0
Antenna Included:
- Yes
Atx Power Connector (24-pin):
- Yes
Audio Chip:
- Realtek ALC897
Audio Output Channels:
- 7.1 channels
Batteries Included:
- Yes
Battery Technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery Type:
- CR2032
Battery Weight:
- 3 g
Bios Memory Size:
- 256 Mbit
Bios Type:
- UEFI AMI
Bundled Software:
- Norton® Internet Security (OEM version) LAN bandwidth management software
Clear Cmos Button:
- Yes
Clear Cmos Jumper:
- Yes
Compatible Processor Series:
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component For:
- PC
Country Of Origin:
- China
Cpu Fan Connector:
- Yes
Depth:
- 244 mm
Desktop Management Interface (dmi) Version:
- 2.7
Directx Version:
- 12.0
Displayport Version:
- 1.4
Displayports Quantity:
- 1
Dvi-d Ports Quantity:
- 0
Ecc сompatibility:
- Non-ECC
Eps Power Connector (8-pin):
- Yes
Ethernet Interface Type:
- Gigabit Ethernet
Ethernet Lan:
- Yes
Ethernet Lan (rj-45) Ports:
- 1
Front Panel Audio Connector:
- Yes
Front Panel Connector:
- Yes
Hdcp:
- Yes
Hdmi Ports Quantity:
- 1
Hdmi Version:
- 2.1
Headphone Outputs:
- 1
Height:
- 35 mm
Lan Controller:
- Realtek RTL8111H
Lithium Weight Per Battery:
- 0.07 g
Maximum Internal Memory:
- 256 GB
Maximum Internal Memory Per Slot:
- 64 GB
Maximum Resolution:
- 4096 x 2160 pixels
Mb-format:
- ATX
Mb-socket:
- AM5
Memory Channels:
- Dual-channel
Memory Slots Type:
- DIMM
Microphone In:
- Yes
Motherboard Chipset:
- AMD B650
Motherboard Chipset Family:
- AMD
Motherboard Form Factor:
- ATX
Number Of Battery Cells:
- 1
Number Of Chassis Fan Connectors:
- 3
Number Of Cpu Fan Connectors:
- 2
Number Of Eps Power Connectors (8-pin):
- 1
Number Of Hdds Supported:
- 4
Number Of M.2 (m) Slots:
- 3
Number Of Memory Slots:
- 4
Number Of Rgb Led Pin Headers:
- 4
Number Of Sata Iii Connectors:
- 4
Number Of Storage Drives Supported:
- 7
Number Of Water Pump Connectors:
- 2
Onboard-cpu:
- No
Package Depth:
- 270 mm
Package Height:
- 80 mm
Package Weight:
- 2.2 kg
Package Width:
- 335 mm
Parallel Processing Technology Support:
- Not supported
Pc Health Monitoring:
- Fan, Temperature, Voltage, Water cooling
Pci:
- 0
Pci Express X16 (gen 3.x) Slots:
- 2
Pci Express X16 (gen 4.x) Slots:
- 1
Pci-ex1:
- 1
Pci-ex16:
- 4
Power Source Type:
- ATX
Processor Manufacturer:
- AMD
Processor Socket:
- Socket AM5
Producator:
GIGABYTE
Product Colour:
- Brown
Products Per Shipping (inner) Case:
- 1 pc(s)
Raid Levels:
- 0, 1, 10
Raid Support:
- Yes
Ram-slots:
- 4
Rgb Led Pin Header:
- Yes
Screws Included:
- Yes
Serial Port Headers:
- 1
Serial-or-paralel:
- No/No
Supported Memory Clock Speed (max):
- 7600 MHz
Supported Memory Clock Speeds:
- 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Supported Memory Types:
- DDR5-SDRAM
Supported Processor Sockets:
- Socket AM5
Supported Storage Drive Interfaces:
- M.2, SATA III
Supported Storage Drive Types:
- HDD & SSD
System Management Bios (smbios) Version:
- 2.7
Top Wi-fi Standard:
- Wi-Fi 6 (802.11ax)
Tpm Connector:
- Yes
Unbuffered Memory:
- Yes
Usb 2.0 Connectors:
- 3
Usb 2.0 Ports Quantity:
- 6
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors:
- 2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-a Ports Quantity:
- 0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-c Ports Quantity:
- 1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors:
- 0
Usb 3.2 Gen 2 (3.1 Gen 2) Type-a Ports Quantity:
- 2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-c Ports Quantity:
- 0
Usb3:
- 4-8
Vga (d-sub) Ports Quantity:
- 0
Warranty Period:
- 3 year(s)
Weight:
- 1.95 kg
Wi-fi:
- Yes
Wi-fi Standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width:
- 305 mm
Wifi-ap Antenna Jack:
- 2
Windows Operating Systems Supported:
- Windows 10 x64, Windows 11 x64
Wlan Controller Model:
- Realtek RTL8851BE
Descriere
Placa de Baza GIGABYTE B650 UD AX AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX
